APC · UPS

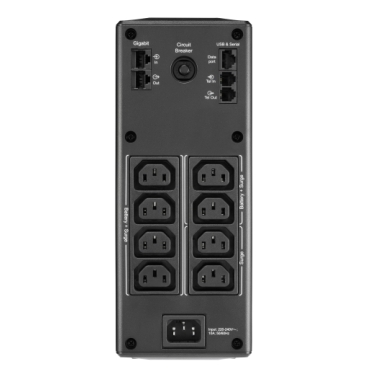

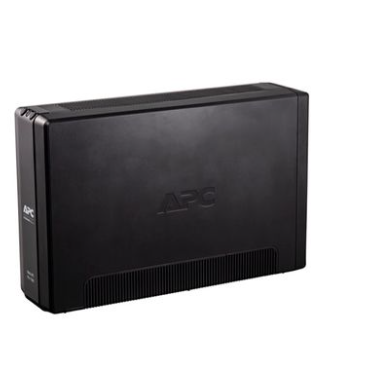

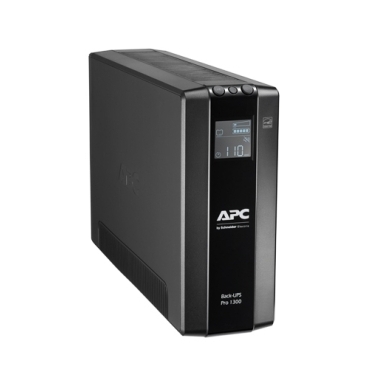

APC Back-UPS Pro, 1300VA/780W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD, User Replaceable Battery (BR1300MI)
APC Back-UPS Pro, 1300VA/780W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD, User Replaceable Battery (BR1300MI) - SpecificationsMain
Quote on request
✓ Available to order · supplied & installed in Malaysia
| Capacity | 1300VA VA |
Product details
Specifications
| Main Input Voltage | 230 V |
|---|---|
| Rated power in W | 780 W |
| Rated power in VA | 1300 VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 60320 C13 |
| output connection type | 6 IEC 60320 C13 2 IEC 60320 C13 surge |
| Battery type | Lead-acid battery |
| Number of battery filled slots | 0 |
|---|---|
| Number of battery free slots | 0 |
| Battery recharge time | 16 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | 24 V |
| Battery capacity | 6.0 Ah |
| Battery charger power | 11 W rated |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC165 |
| Extended runtime | 0 |
| Provided equipment | User manual USB cable |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black |
|---|---|
| height | 10 cm |
| Width | 25 cm |
| Depth | 38.2 cm |
| Net weight | 10.2 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
|---|---|
| Input voltage limits | 176...294 V |
| Maximum input current | 10 A |
| Switching current capacity | 10 A |
| Maximum configurable power in W | 780 W |
|---|---|
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Maximum configurable power in VA | 1300 VA |
| product certifications | A-Tick C-Tick CE EAC RCM TISI |
|---|---|
| Marking | GS Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 45 dBA |
| Heat dissipation | 21.5 Btu/h |
| control panel | Multifunction LCD status and control console |
|---|---|
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 509 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 33 cm |
| Package 1 Width | 22.5 cm |
| Package 1 Length | 48.5 cm |
| Package 1 Weight | 11.85 kg |
| SCC14 | 10731304346903 |
| Warranty | 2 years repair or replace, 3 years repair or replace for European Union countries |
|---|
