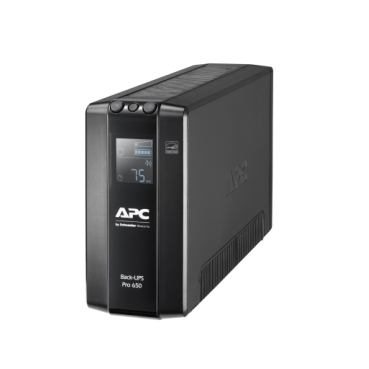

APC Back-UPS Pro, 650VA/390W, Tower, 230V, 6x IEC C13 outlets, AVR, LCD, User Replaceable Battery (BR650MI)
APC · UPS

APC Back-UPS Pro, 650VA/390W, Tower, 230V, 6x IEC C13 outlets, AVR, LCD, User Replaceable Battery (BR650MI)

SpecificationsMain

Quote on request
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
Key specifications
Capacity 650VA VA
Full specifications ↓

Product details

Specifications

Main
Main Input Voltage230 V
Rated power in W390 W
Rated power in VA650 VA
Product or component typeUninterruptible power supply (UPS)
Input Connection TypeIEC 60320 C13

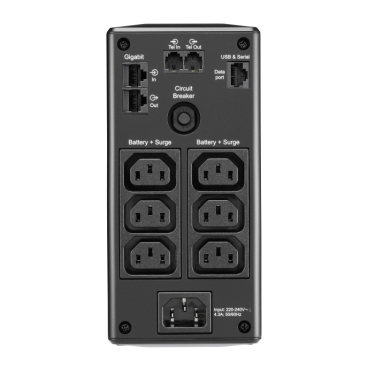

output connection type6 IEC 60320 C13
Battery typeLead-acid battery
Batteries & Runtime
Run TimeView Runtime Graph
action_new_window
EfficiencyView Efficiency Graph
action_new_window
Number of battery filled slots0
Number of battery free slots0
Battery recharge time12 h
Number of battery replacement quantity1
Battery voltage12 V
Battery capacity7.0 Ah
Battery charger power6 W rated
Battery life3…5 year(s)
Replacement batteryAPCRBC110
action_new_window
Extended runtime0
General
Provided equipmentUser manual
USB cable
Number of power module free slots0
Number of power module filled slots0
RedundantNo
Physical
height19 cm
Width9.1 cm
Depth31 cm
Net weight6.4 kg
Mounting preferenceNo preference
Mounting modeNot rack-mountable
Two post mountable0
USB compatibleNo
Input
Network frequency50/60 Hz +/- 3 Hz auto-sensing
Input voltage limits176...294 V
Maximum input current10 A
Switching current capacity10 A
Output
Maximum configurable power in W390 W
Output frequency50/60 Hz +/- 1 Hz sync to mains
UPS typeLine interactive
Wave typeStepped approximation to a sinewave
Maximum configurable power in VA650 VA
Transfer time10 ms typical : 12 ms maximum
Conformance
product certificationsA-Tick
C-Tick
CE
EAC
RCM
TISI
MarkingGS Mark
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
ambient air temperature for operation0…40 °C
Relative humidity0…95 %
Operating altitude0...10000 ft
Ambient air temperature for storage-15…45 °C
Storage Relative Humidity0…95 %
Storage altitude0.00…15240.00 m
Acoustic level45 dBA
Heat dissipation13.3 Btu/h
Communications & Management
control panelMultifunction LCD status and control console
AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Noise suppressionFull time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height25.5 cm
Package 1 Width14.3 cm
Package 1 Length44 cm
Package 1 Weight7.4 kg
SCC1410731304346934

Contractual warranty
Warranty2 years repair or replace, 3 years repair or replace for European Union countries
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
  • Delivery & professional installation
  • Configuration & migration
  • Manufacturer warranty handling
  • Annual maintenance & managed services (MSP)
Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation

Specifications

UPS Specs
Capacity650VA VA
Compare similar

Related products

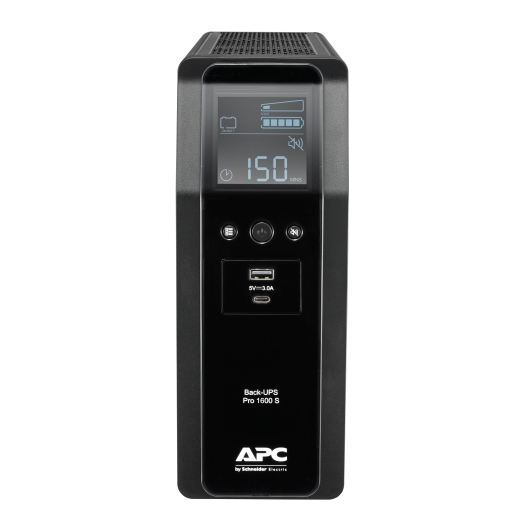

APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, Sine Wave, AVR, USB Type A + C ports, LCD, User Replaceable Battery (BR1600SI)
APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets,...
APC
Quote on request

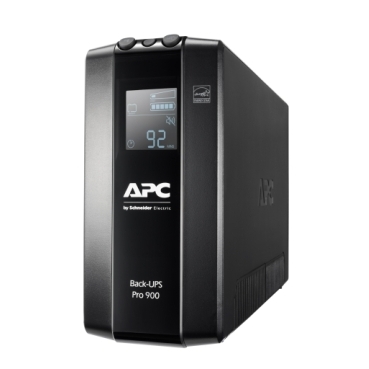

 APC Back-UPS Pro, 900VA/540W, Tower, 230V, 6x IEC C13 outlets, AVR, LCD, User Replaceable Battery (BR900MI)
APC Back-UPS Pro, 900VA/540W, Tower, 230V, 6x IEC C13 outlets, A...
APC
Quote on request

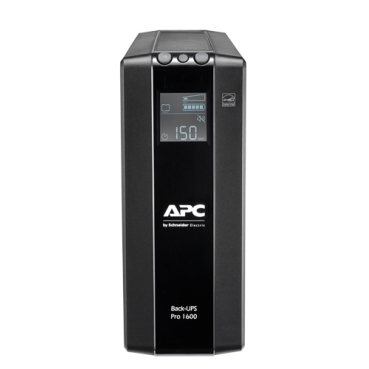

 APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD, User Replaceable Battery (BR1600MI)
APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets,...
APC
Quote on request

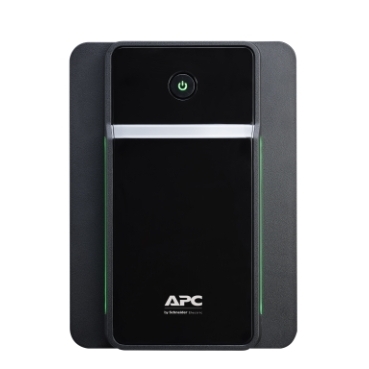

 APC Back-UPS, 1200VA, Tower, 230V, 4 Universal + 1 IEC C13 outlets, AVR (BX1200MI-MS)
