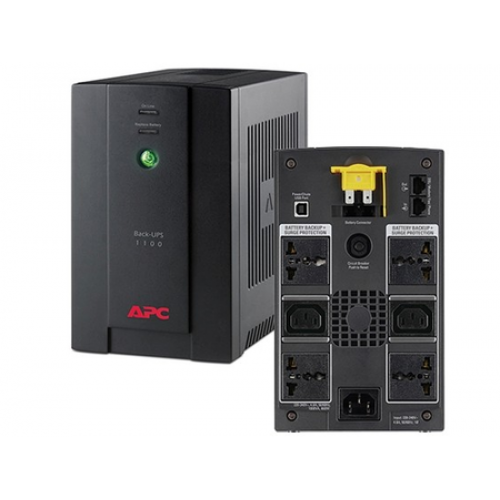

APC BX1100LI-MS UPS (1100VA, 230V, AVR) AVR / UPS, APC image
APC · UPS

APC BX1100LI-MS UPS (1100VA, 230V, AVR)

APC BX1100LI-MS UPS 1100VA | 230V | AVR   Warranty - 2 year Manufacturer Limited Warranty

MYR 719.00 reference price — project pricing on quotation
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
Key specifications
Type UPS
Capacity 1100 VA
Real power 550 W
Topology Line-interactive
Form Tower
Full specifications ↓

Product details

APC BX1100LI-MS UPS

1100VA | 230V | AVR


Warranty
- 2 year Manufacturer Limited Warranty (APC Service Center)


  SPECIFICATIONS

Specifications
Model BX1100LI-MS
Output Output power capacity:
550 Watts / 1.1 kVA

Max Configurable Power (Watts):
550 Watts / 1.1 kVA

Nominal Output Voltage:
230V

Output Frequency (sync to mains):
50/60 Hz +/-1 Hz

Output Frequency (not synced):
50/60 Hz +/-1 Hz

Topology:
Line Interactive

Waveform type:
Stepped approximation to a sinewave

Output Connections:
(2) IEC 320 C13 (Battery Backup)

Transfer Time:
4ms typical : 6ms maximum
Input Nominal Input Voltage:
230V

Input frequency:
50/60 Hz +/- 3 Hz (auto sensing)

Input Connections:
IEC-320 C14, NEMA 5-15P

Cord Length:
1.22 meters

Input voltage range for main operations:
150 - 280 V

Number of Power Cords:
1

Type of Input Protection Required:
3-pole breaker

Maximum Input Current:
10.0 A

Input Power Factor at Full Load:
0.5
Batteries & Runtime Battery type:
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules:
1

Typical recharge time:
6 hour(s)

Replacement Battery:
RBC17

Battery Volt-Amp-Hour Capacity:
96
Communications & Management Control panel:
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

Audible Alarm:
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering Surge energy rating:
273 Joules
Physical Maximum Height:
215 mm , 21.5 CM

Maximum Width:
130 mm , 13.0 CM

Maximum Depth:
336 mm , 33.6 CM

Net Weight:
9.2 KG

Shipping weight:
10.6 KG

Shipping Height:
295 mm , 29.5 CM

Shipping Width:
245 mm , 24.5 CM

Shipping Depth:
440 mm , 44.0 CM
Environmental Operating Environment:
0 - 40 °C

Operating Relative Humidity:
0 - 95 %

Operating Elevation:
0-3000 meters

Storage Temperature:
-15 - 40 °C

Storage Relative Humidity:
0 - 95 %

Storage Elevation:
0-9000 meters

Audible noise at 1 meter from surface of unit:
45.0 dBA
Conformance Approvals:
CE, WEEE

Standard warranty:
2 years repair or replace
Sustainable Offer Status RoHS: Compliant

REACH: Contains No SVHCs
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
  • Delivery & professional installation
  • Configuration & migration
  • Manufacturer warranty handling
  • Annual maintenance & managed services (MSP)
Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation

Specifications

Storage Media Specs
TypeUPS
UPS Specs
Capacity1100 VA
Real power550 W
TopologyLine-interactive
FormTower
Network card slotNo
Battery replaceableYes
