| Model |

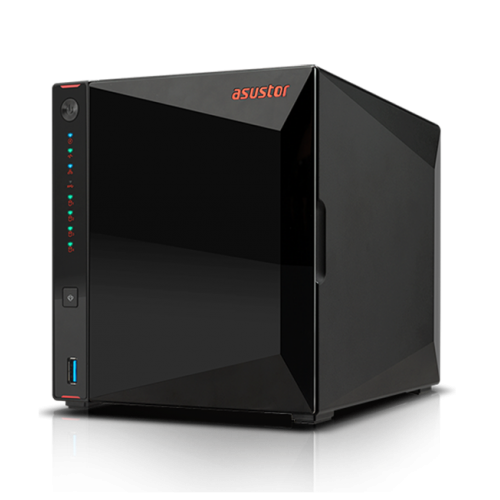

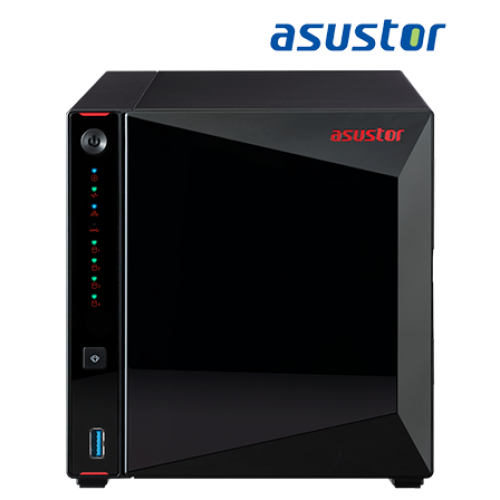

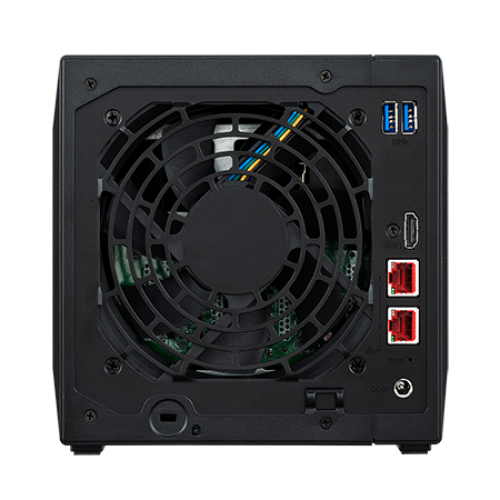

Asustor AS5304T NAS Server |
| Hardware Specifications |
CPU: Intel Celeron J4105 Quad-Core 1.5 GHz (burst up 2.5GHz) Processor
AES-NI hardware encryption engine integrated
Memory: 4GB SO-DIMM DDR4
Memory Module Pre-installed: 4GB (1 x 4GB)
Total Memory Slots: 2
Memory Expandable up to: 8GB (2 x 4GB)
Support mixed capacity
Flash Memory: 4GB eMMC
HDD: 4 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
Maximum Internal Raw Capacity: 64 TB (16 TB HDD X 4, Capacity may vary by RAID types)
Maximum Drive Bays with Expansion Unit: 16
Maximum Raw Capacity with Expansion Units : 256 TB (16 TB HDD X 16,
Expansion: USB 3.2 Gen 1 x3
Network: 2.5 Gigabit Ethernet x 2
Output: HDMI 2.0a x1
System Fan: 120mm x 1
Infrared Receiver
Power Supply Unit / Adapter: 90W x1
Input Power Voltage: 100V to 240V AC
Certification: FCC, CE, VCCI, BSMI, C-TICK |
| Operation |
Power Consumption: 27 W (Operation);
12.6 W (Disk Hibernation);
1.4 W (Sleep Mode) ²
Noise Level: 19.7dB (HDD idle)
Operation Temperature: 0°C~40°C (32°F~104°F)
Humidity: 5% to 95% RH |
| Operating System |
ADM 3.4 Onwards
Supports Online Firmware Updates |
| ASUSTOR Hightlight |
System Migration
EZ Connect
Dr.ASUSTOR
2-way Backup
Task Monitor |
| Eco-Friendly Design |
System Automatically Enters Sleep Mode (Schedule S3)
Auto-Standby for Both Internal and External Disks
Auto Fan Control
LED Night Mode
Power Schedule: On, Off, Restart, and Sleep. |
| Size and Weight |
Size: 170(H) x 174(W) x 230(D) mm
Weight: 2.2 kg / 4.85 lbs |
| Supported OS |
Windows XP, Vista, 7, 8, 10, Server 2003, Server 2008, Server 2012
Mac OS X 10.6 Onwards
UNIX, Linux, and BSD |
| Supported Languages |
Deutsch, English, Français, Italiano, Nederlands,Русский, 日本語, 한글, 简体中文, 繁體中文, Česká,Polski, Svenska, Dansk, Norsk, Suomi, Português,Türkçe, Español, Magyar |
| Supported Browsers |
Internet Explore 11 Onwards
FireFox
Chrome
Safari
Microsoft Edge |
| Network Protocols |
CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog |
| File System |
Internal Disk: EXT4 ,Btrfs
External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs |
| File Explorer |
Web-based File Management
ISO File Mounting
Share Links
Task Monitor
Browse Files on Local PC
Thumbnail Previews
Data Access via External Optical Drive
Supports video playback |
| Storage Management |
Support Multiple Volumes with Spare Disks
Volume Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Support for Online RAID Level Migration |
| iSCSI/IP-SAN |
Maximum Targets: 256
Maximum LUNs: 256
Maximum Snapshot Versions of a Single LUN: 256
Target Masking
LUN Mapping
ISO File Mounting
Supports MPIO
Persistent (SCSI-3) Reservations |
| Customized Sign In Page |
2 Different Template Choices
Customizable Title, Imageand Background
Image Import Function |
| Disk Management |
Scheduled Bad Block Scans
Scheduled S.M.A.R.T Scans |
| Energy Control |
Configurable Disk Hibernation and Sleep Mode Wait Time
Configurable Time Period for Sleep Mode Activation
Automatic Sleep |
| Network |
TCP/IP (IPv4 & IPv6)
Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
Jumbo Frame (MTU)
VLAN
EZ Connect
Wireless Network³
DDNS and EZ-Router
Supports Wake-on-LAN (WOL)
Supports Wake-on-WAN (WOW) |
| Backup Solutions |
Rsync (Remote Sync) Backup
Cloud Backup
FTP Backup
External Backup
One Touch Backup
EZ Sync |
| Snapshots |
Btrfs Snapshots
256 snapshots
iSCSI LUNs
Support model: AS31/32/40/50/51/52/53/61/62/63/64/70. Snapshot Center will not display Volume snapshots information in other models. |
| System Administration |
Log Type: System Log, Connection Log, File Access Log
Real-time Online User Monitor
Real-time System Monitor
User Quota
Virtual Drive (ISO Mounting, Maximum 16)
UPS Support |
| Network Recycle Bin |
Share folder-based
Maintains original directory structure and file permission
On-click restore
Supports scheduled emptying
Filtering rules
File size
File extension |
| Access Control |
Maximum Number of Users: 4096
Maximum Number of Groups: 512
Maximum Number of Shared Folders: 512
Maximum Number of Concurrent Connections: 512
Supports Windows Active Directory
Supports Windows Active Directory / LDAP |
| ACL |
Provides both Windows ACL and Linux ACL permission configuration methods
Can enable Windows ACL for specific shared folders
Comprehensive support for Windows’ 13 types of advanced permission settings
Can view Windows ACL permission settings from within |
| ADM |
Supports local users and groups
Exclusive permission reset function allows users to quickly restore default permissions |
| SSD Cache |
SSD-like performance with traditional hard drives
supports read-only access and read-write cache mode
Supported Models: AS31/32/50/51/52/53/61/62/63/64/70 series |
| Security |
AES 256-Bit Encryption |
