Asustor · NAS & Storage

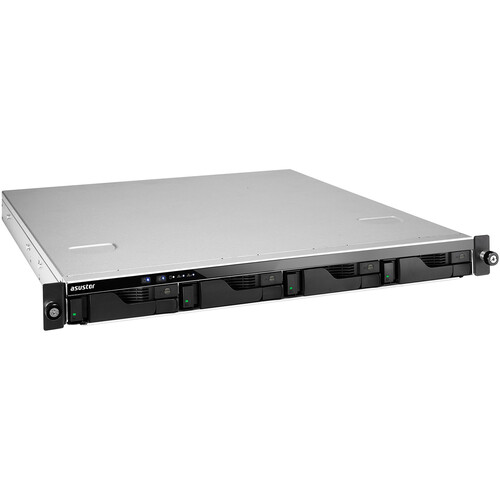

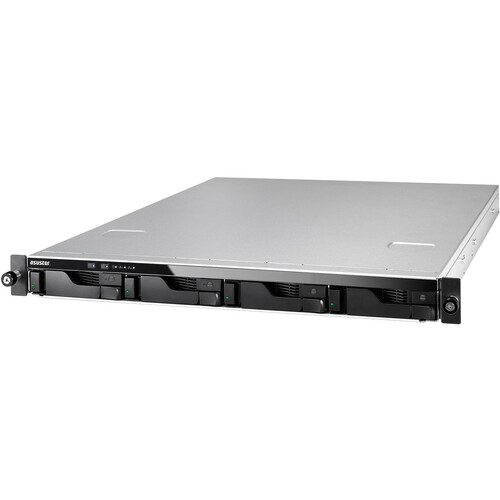

ASUSTOR AS6504RS 4BAY/2.1GHZ QC/8GB/2GLAN/2x2.5GLAN/1PCIE/RAILKIT
Key Features4 x 3.
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | Rackmount |
Product details
Key Features
- 4 x 3.5" SATA III Drive Bays
- 2.1 GHz Intel Atom C3538 Quad-Core CPU
- 8GB of DDR4 RAM
- 2 x Gigabit Ethernet & 2 x 2.5 GbE Ports
- 4 x USB 3.2 Gen 1 Type-A Ports
- RAID 0, 1, 10, 5, 6, Single & JBOD
- AES 256-Bit Encryption
- 1 x 250W Power Supply
- 1U Form Factor
- ADM 3.5 Operating System
Hardware Specifications | ||
|---|---|---|
| CPU Model | Intel ATOM C3538 | |
| CPU Architecture | x64 64-bit | |
| CPU Frequency | Quad-Core 2.1GHz | |
| Memory | 8GB SO-DIMM DDR4 Compatibility | |
| Memory Module Pre-installed | 8GB (1x 8GB) | |
| Total Memory Slots | 4 | |
| Memory Expandable up to | 128GB (4x 32GB) Installation Guide
| |
| Flash Memory | 8GB eMMC | |
| Drive Bays | 4 | |
| Compatible Drive Type Compatibility |
| |
| Maximum Drive Bays with Expansion Unit | 20 | |
| Supports Hot Swappable Drives | ||
| Expansion | 4x USB 3.2 Gen 1 | |
| Network | 2x Gigabit Ethernet (1G/100M) ; 2x 2.5 Gigabit Ethernet (2.5G/1G/100M) | |
| PCIe Expansion Slots | PCIe 3.0 x8 slot (black, x4 link) | |
| Multimedia Output | N/A | |
| System Fan | 2x 40mm | |
| Power Supply Unit / Adapter | AS6504RS: 250W x1 AS6504RD: 250W x2 AS6504RS x1 / AS6504RD x2 | |
| Input Power Voltage | 100V to 240V AC | |
| Redundant power supply | ||
| Service LED Indicator | ||
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS | |
| Warranty | 3 Years | |
| Power Consumption | AS6504RS: 47.7W (Operation) 28.4W (Disk Hibernation); AS6504RD: 65W (Operation) 42.4W (Disk Hibernation); | |
| Noise Level | - | |
| Operation Temperature | 0°C~40°C (32°F~104°F) | |
| Humidity | 5% to 95% RH | |
| Size | 44(H) x 439(W) x 515(D) mm | |
| Weight | AS6504RS: 7.85kg / 17.27 lbs; AS6504RD: 9.3 kg / 20.46 lbs Package Contents | |
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Compute Specs | |
|---|---|
| Form factor | Rackmount |
