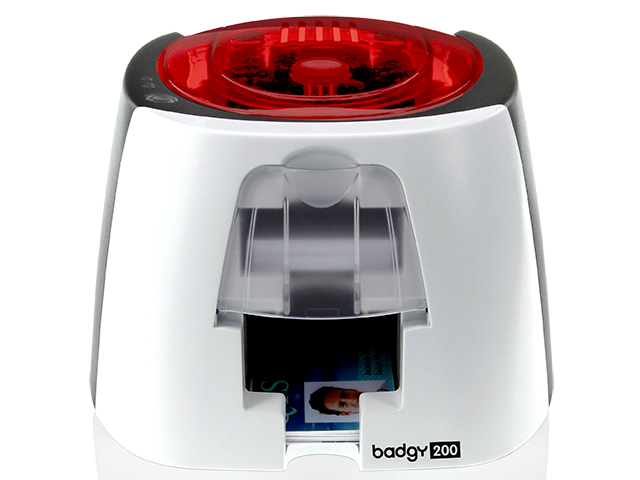

BADGY200 CARD PRINTING SOLUTION (B22U0000RS)

General features

• Direct-to-card dye-sublimation/Resin thermal transfer
• Single-sided printing, edge-to-edge
• Printing resolution: 260x300 dpi printing
• 2 million colors
• 16 MB RAM

Printing performances

• Color (YMCKO): 38 s per card (95 cards/hour)
• Monochrome: 11 s per card (325 cards/hour)

Interfaces

• USB 2.0 (1.1 and 3.0 compatible), cable supplied

Safety

• Space for Kensington® security lock

Display

• LEDs
• Graphic printer notifications: cleaning alerts, end of ribbon alert, ribbon due to end, etc.

Card management and specifications

• Feeder capacity: 25 cards (0.76 mm – 30 mil) to 40 cards (0.50 mm – 20 mil)
• Output hopper capacity: 25 cards (0.76 mm – 30 mil) to 40 cards (0.50 mm – 20 mil)
• Card thickness: 0.50 to 0.76 mm (20 to 30 mil), automatic gauge
• Card type: PVC cards
• Card format: ISO CR-80 – ISO 7810 (53.98 x 85.60 mm)

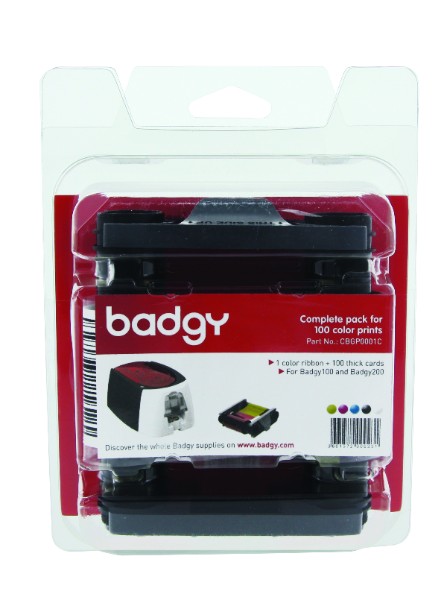

Badgy Ribbons

To maximize the quality and durability of the printed cards, the lifespan of the print head, and the overall printer reliability, use the recommended ribbons.

• Ribbon capacity:




  • YMCKO (included): 100 prints/roll
  • Black monochrome ribbon: 500 prints/roll
• Automatic detection and configuration

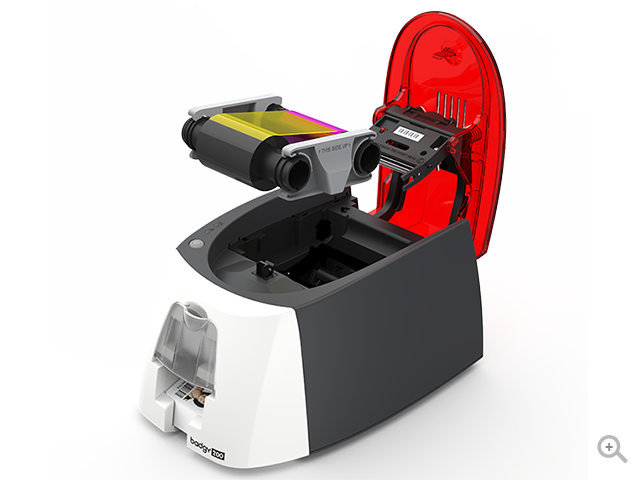

• Ribbon in a cartridge for easier handling
• Integrated ribbon saving for monochrome printing

Software

• Supplied with Evolis Badge Studio®  + for designing and printing badges







  • Import data from a database
  • Windows® 7 and higher and Mac OS® X from 10.12 and higher
  •

• Supplied with Badgy Premium Suite®  for Windows®:
  • Driver
  • Printer management and configuration tool with graphic notifications
  • 24/7 online support
  • Compatible with Windows® 7 and higher
• Supplied with the Mac OS® X driver (10.12 and higher)

Eco-friendly design, certifications and statement of compliance

• Prolonged standby mode and reduced electricity consumption
• CE, FCC, ICES, VCCI, CCC, KC, BIS
• RoHS

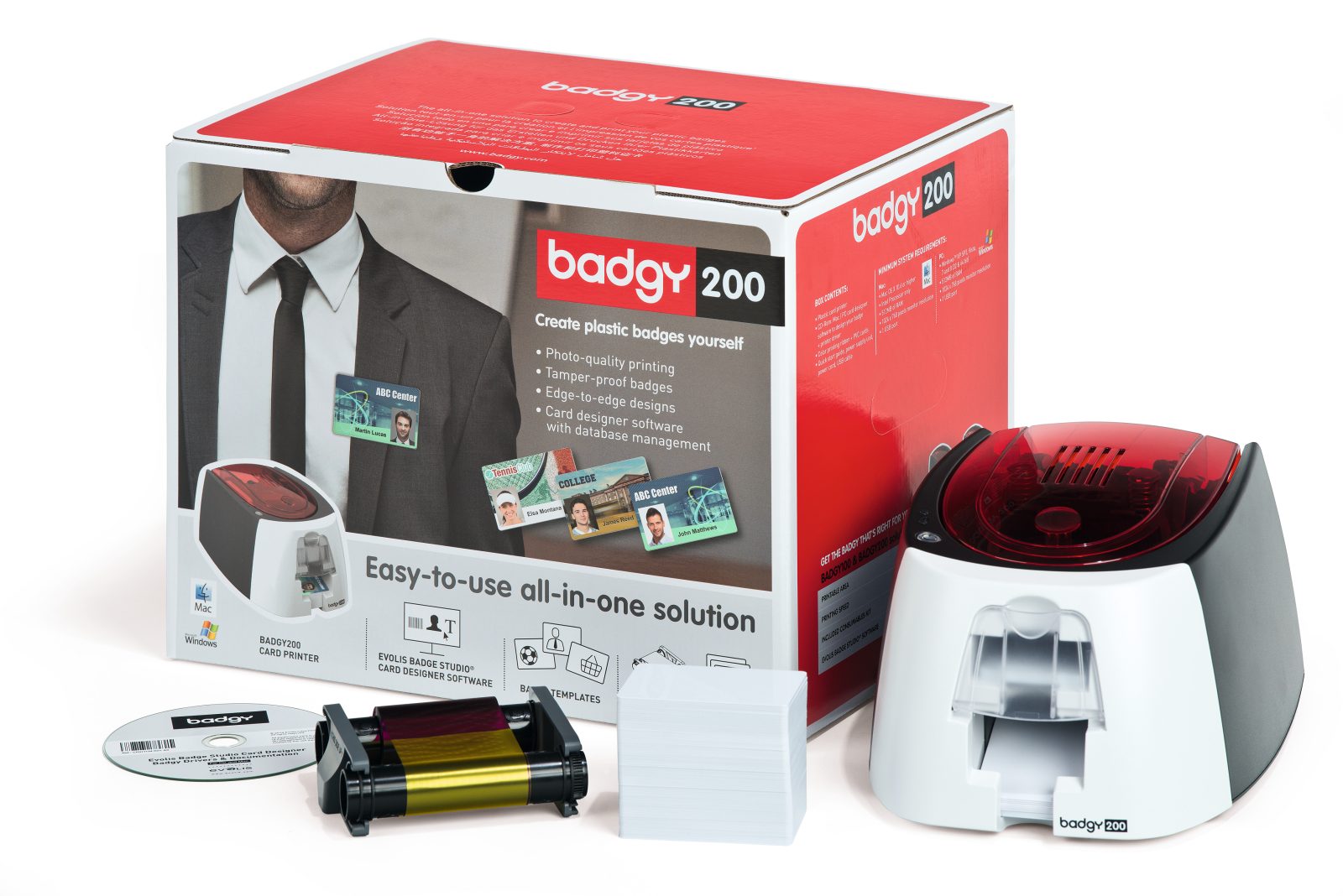

Packaging content

• Printer
• Consumables:
  • Color ribbon (YMCKO): 100 prints
  • 100 blank PVC cards (0.76 mm - 30 mil)
  • 1 cleaning card
• Installation USB key (print driver, Evolis Badge Studio® + software, and card templates)
• USB cable
• Power supply unit and cable

Size and weight

• Complete packaged solution:




  • Dimensions (H x W x D): 315 x 385 x 285 mm (12.40” x 15.15” x 11.22”)
  • Weight: 3.95 kg (8.71 lbs)
• Printer:
  • Dimensions (H x W x D): 148 x 200 x 276 mm (5.83” x 7.87” x 10.87”)
  • Weight: 1.665 kg (3.67 lbs)

Warranty

• 2-years warranty (printer and print head)
• Warranty extension available as an option

1/ Depends on your version of Windows® / 2 The costs of return remain the responsibility of customer
