| Model |

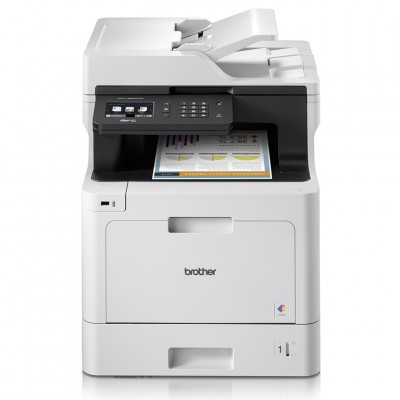

MFC-L8690CDW |
| General |
Printer type Colour
Function Print, Copy and Scan, Fax
Display Colour touchscreen
Display size 9.3cm
Laser classification Class 1 laser product (IEC 60825-1:2007)
Max paper size A4
Memory 512MB
Processor 800MHz – Sub: 133Mhz
Technology Laser |
| Brother Apps |
A3 Half Fold Copy and Scan Yes
Creative Center Yes
Easy Scan to Email Yes
Enlarge Text Copy Yes
Fax Forward to Cloud Yes
Folding Notes Yes
Note Scan Yes
Office Doc Creator Yes
Outline and Copy Yes
Outline and Scan Yes
Scan to Mobile Yes
Scan to Searchable PDF Yes |
| Connectivity |
Connectivity Wired Network, Wireless
Local interface Hi-Speed USB 2.0 & USB Host for an external card reader
Wi-Fi Direct Print wirelessly without having to go through a wireless access point (both automatic and manual methods supported)
Wired network interface Ethernet 10Base-T/100Base-TX/1000Base-T
Wireless network interface IEEE 802.11b/g/n |
| Mobile connectivity |
Supported AirPrint, Android Print Service Plugin, Google Cloud Print 2.0, iPrint&Scan, Mopria, Wi-Fi Direct™ |
| Copying |
2-sided copy Yes
Resolution Up to 1,200 x 600dpi
Speed Up to 31cpm (copies per minute) colour & mono
Enlargement / reduction ratio Reduce or Increase document sizes from 25% to 400% in 1% increments
N in 1 Yes |
| Dimensions & weights |
With carton 663 x 542 x 654mm
With carton 33.7 kg
Without carton 435 x 526 x 539mm
Weight 27.9 kg |
| Environmental |
Blue Angel environmental accreditation Yes
Energy Star environmental accreditation Yes
Nordic Swan environmental accreditation Yes
Power consumption (Watts) Printing - 580W, ready - 70W, sleep – 10W, deep sleep – 1.4W, power down - 0.03W
Sound power Printing – 6.56BA, quiet mode printing – 6BA, ready – Inaudible
Sound pressure Printing – 49dbA, quiet mode printing – 44dbA, ready – Inaudible
Typical electrical consumption 1.9kWh/Week |
| Faxing |
Automatic 2 sided faxing Yes
Fax modem 33,600 kbps
Internet fax Optional Download
PC Fax Yes
|
| In the box |
Contents Supplies, Power supply cord, Fax Line Cord, Product safety guide, Windows® Software disc, Warranty card, Quick setup guide |
| Media specifications |
Types and sizes Standard & Optional Trays – plain, recycled, coloured and letterhead (between 60 - 105g/m2) Multi Purpose Tray - plain, recycled, bond, coloured, letterhead and glossy paper (between 60 -163g/m2) 2-sided Print - plain, recycled, coloured, letterhead and glossy paper (between 60 - 105g/m2) Automatic Document Feeder - Plain & recycled paper (between 64 - 90g/m2)
Weights Standard Tray - A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal Multi Purpose Tray- Width: 76.2mm to 215.9mm x Length: 127mm to 355.6mm Automatic Document Feeder - Width: 105mm to 215.9mm x Length: 147.3mm to 355.6mm 2-sided Print – A4 |
| Network |
Secure print Yes
Wi-Fi Direct™ Yes
Wired network Ethernet 10Base-T/100Base-TX/1000Base-T
Wired network security SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP), SNMP v3 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec
Wireless network IEEE 802.11b/g/n
Wireless network security WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) APOP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3, IMAP4), SNMP v3, Kerberos, IPsec, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAPTTLS) |
| Operating systems & software |
Supported Windows 10® (32 & 64 bit editions) Windows 8® (32 & 64 bit editions) Windows 7® (32 & 64 bit editions) Windows® Server 2016, 2012, 2012R2 & 2008R2 Windows® Server 2008 (32 & 64 bit editions)* *Windows® Server supports network printing only Mac: OS v10.10.5, v10.11.x, v10.12 or greater Linux CUPS, LPD/LPRng (x86/x64 environment) |
| Paper handling |
Paper input Standard Tray - Up to 250 sheets, Multi Purpose Tray - Up to 50 sheets, ADF (Automatic Document Feeder) - Up to 50 sheets
Paper output Face Down - 150 sheets Face Up (Straight Paper Path) - 1 sheets |
| Printing |
Resolution 2,400dpi (2,400 x 600dpi), 600 x 600dpi
A4 standard colour print speed 31 pages per minute
A4 standard mono print speed 31 pages per minute
Automatic 2 sided print Yes
First print out time Less than 15 seconds
Recommended monthly volume Up to 3,000 pages |
| Scanning |
2-Sided scan Yes
Resolution Up to 1,200 x 2,400dpi (from flatbed), 1,200 x 600dpi (from ADF), 19,200 x 19,200dpi (Enhanced)
Speed 28ppm/56ipm colour & mono
Scanner type Dual CIS |
| Security features |
802.1x Yes
Secure function lock v3 Yes
Secure print Yes
Setting lock Yes |
| Solutions |
Supported AirPrint, Android Print Service Plugin, b-guard, Box, Brother Apps, BSI, Dropbox, Evernote, Facebok, Flikr, Google Cloud Print, Google Drive, iPrint&Scan, ISIS, Managed Print Services, Mopria, OneDrive, OneNote |
| Supplies and accessories |
Accessories Optional Lower Tray- LT-330CL- Up to 250 Sheets. Card Reader Holder CH-1000.
Supplies Inbox Toner Approx. 3,000 pages BK, 1,800 pages CMY. Standard Toner TN-421 - Approx. 3,000 pages BK, 1,800 pages CMY. High Yield Toner TN-423 Approx. 6,500 pages BK, 4,000 pages CMY.
|
| * Prices, Features, Package Content and Specifications are subject to change without prior notification.* |
|
