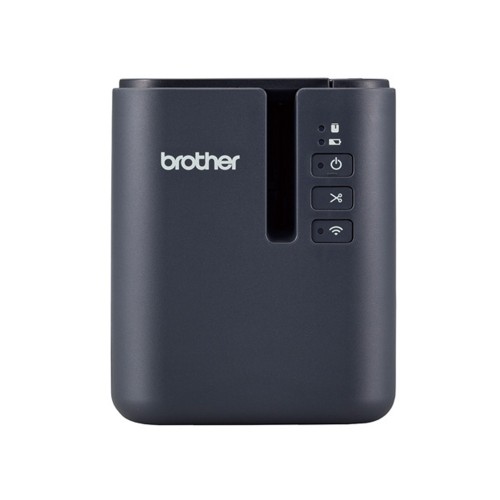

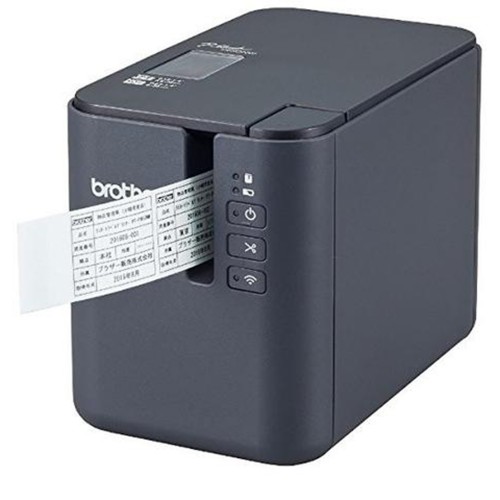

Model
|
PT-P900W
|
|
Certifications
|
Energy Conservation
Certifications Energy Star
|
|
Communications
|
Communications Certifications
USB v2.0 (Full Speed), RS-232C Serial, WLAN IEEE 802.11 b/g/n
Communications Interface(s)
USB (Mini), Serial, WLAN
Communications Security
WEP 64/128 bit, Enterprise 802.1x, LEAP(CKIP), EAP-FAST(TKIP/AES), PEAP, EAP-TLS, EAP-TTLS, WPA/PSK (TKIP/AES), WPA2-PSK (AES), EAP (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
|
|
Compatibility
|
Operating System Compatibility
Windows 10 (32/64bit), Windows 8 (32/64bit), Windows 7 (32/64bit), Windows Vista (32/64bit), Android v2.2 or later, iOS v6.0 or later, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008 (32/64bit), Mac OS X 10.10.x or later, Linux Red Hat and Debian
Print Driver Compatibility
Windows, Mac, Linux
|
|
Consumables
|
Compatible Tape Families
HGe, TZe, HSe
Compatible Tape Widths
3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm, 36mm
Consumable Format
Cartridge with Continuous Media
Consumable Max Roll OD Size
Not Applicable
Consumable Roll Core ID Size
Not Applicable
Consumable Thickness
Not Applicable
Consumable Types
Laminated Labels
Media Width Max
1.4" (36mm)
Media Width Min
0.14" (3.5mm)
Tape Type‡
Laminated, Non-Laminated, Standard Laminated, Flexible ID, Extra Strength Adhesive, Iron-On Fabric, Acid Free, Tamper Evident, Heat Shrink, Stencil
|
|
Dimensions
|
Unit Dimensions (W x D x H)
4.65" x 7.56" x 5.75" (118mm x 192mm x 146mm)
Unit Weight
3.33lbs. (1.51kg) without Tape, Battery Base and Battery
|
|
Environment Compatibility
|
Operating Environment 50°F - 95°F (10°C - 35°C)
Storage Environment -4°F - 140°F (-20°C - 60°C)
|
|
General
|
Available Color(s)
Black
Available Memory
6MB
Channel Protected
No
Flash Memory
6MB
Media Exit Features
Cutter
Media Feed Features
Cartridge
RAM
Not Published
User Interface
3 Switches (Power, Feed/Cut, WiFi) 4 LEDs (Power, Status, Battery, WiFi)
|
|
Power
|
Battery Charge Time
6 Hours
Battery Life
300 Cycles
Battery Requirements
Rechargeable Li-ion Battery (PA-BT-4000LI)
Battery Yield
20 Tapes
Power Management
Auto Power On/Off
Power Source Options
AutoRanging Power Supply, Replaceable Rechargeable Battery (Optional)
Power Supply
24VDC 2.65A (AD-9100ESA)
|
|
Print
|
Print Resolution
360 dpi
Print Speed
2.4ips (60mm/sec)
Print Technology
Laminated Thermal Transfer
Print Width Maximum
1.26" (32mm)
Printer Type
Desktop
|
|
Print Features
|
2 Dimensional Barcodes
PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code
Bitmap Fonts
Helsinki, Letter Gothic
Emulations
Raster, ESC/P, P-touch Template
Linear Barcodes
Code39, Code93, Code128, ITF(I-2/5), UPC-A, UPC-E, EAN-8, EAN-13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Codabar (NW-7), Industrial 2of5, Postnet
Media Sensor Types
Not Applicable
Outline Fonts
Helsinki, Brussels, Letter Gothic,
Print Commands
Raster, ESC/P, P-touch Template
Stored Templates
Up to 99 templates
|
|
* Features, Package Content and Specifications are subject to change without prior notification.*
|
|
