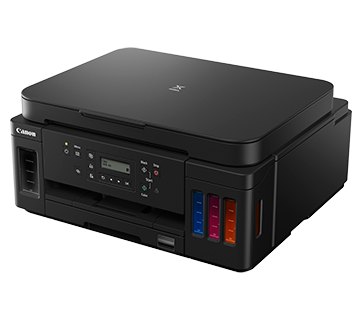

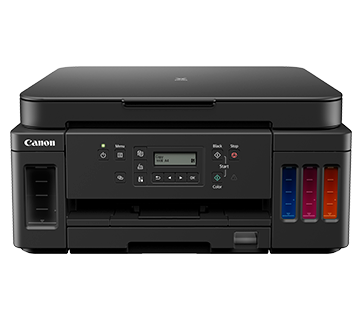

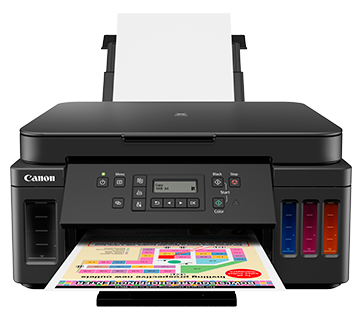

| Model | Canon Color Inkjet PIXMA G6070 AIO Printer | | Print | Print Head / Ink
Type
Permanent (Replaceable)
Number of Nozzles
Total 1,792 nozzles
Ink Bottles
GI-70 (Pigment Black / Cyan / Magenta / Yellow)
Maximum Printing Resolution
4800 (horizontal)*1 x 1200 (vertical) dpi)
Print Speed*2
Based on ISO/IEC 24734
Click here for Summary Report
Click here for Document Print and Copy Speed Measurement Conditions
Document (ESAT/Simplex)
Approx. 13.0ipm (black) / 6.8ipm (colour)
Document (ESAT/Duplex)
Approx. 2.9ipm (black) / 2.8ipm (colour)
Document (FPOT Ready/Simplex)
Approx. 9sec (black) / 14sec (colour)
Photo (4x6") (PP-201/Borderless)
Approx. 37sec.
Printable Width
Up to 203.2mm (8")
Borderless: Up to 216mm (8.5")
Printable Area
Borderless Printing*3
Top/Bottom/Right/Left margin: each 0 mm
Bordered Printing
#10 Envelope/DL Envelope:
Top 8 mm / Bottom 12.7 mm / Right 5.6 mm / Left 5.6 mm
127x127 mm:
Top 6 mm / Bottom 6 mm / Right 6 mm / Left 6 mm
89x89 mm / 4x4":
Top 5 mm / Bottom 5 mm / Right 5 mm / Left 5 mm
LTR / LGL:
Top 3 mm / Bottom 5 mm / Right 6.3 mm / Left 6.4 mm
Other:
Top 3 mm / Bottom 5 mm / Right 3.4 mm / Left 3.4 mm
Bordered Auto 2-Sided Printing
Top / Bottom margin: 5 mm
Left / Right margin: 3.4 mm
(LTR: Left: 6.4 mm, Right: 6.3 mm) | | Support Media | Rear Tray
Plain Paper (64-105g/m²)
Photo Paper Pro Platinum (PT-101)
Photo Paper Pro Luster (LU-101)
Photo Paper Plus Glossy II (PP-201/PP-208)
Matte Photo Paper (MP-101)
Glossy Photo Paper "Everyday Use" (GP-508)
High Resolution Paper (HR-101N)
Photo Paper Plus Semi-Gloss (SG-201)
Photo Stickers (PS-108/PS-208/PS-808)
Removable Photo Stickers (PS-308R)
Magnetic Photo Paper (PS-508)
Envelope
Cassette
Plain Paper (64-105g/m²)
Paper Size
Rear Tray
A4, A5, B5, LTR, LGL, 4x6", 5x7", 7x10", 8x10",
Envelopes (DL, COM10), Square (5x5", 4x4", 89x89 mm), Card Size (91x55 mm)
[Custom size]
width 55 - 215.9 mm, length 89 - 676 mm
Cassette
A4, A5, B5, LTR
[Custom size]
width 148.0 - 215.9 mm, length 210 - 297 mm
Paper Size (Borderless)*4
A4, LTR, 4x6", 5x7", 7x10", 8x10",
Square (5x5", 4x4", 89x89 mm),
Card Size (91x55 mm)
Paper Handling (Maximum Number)
Rear Tray
Plain Paper (A4, 64g/m²) = 100
High Resolution Paper (HR-101N) = 80
Photo Paper: 4x6" = 20
Cassette
Plain Paper (A4, 64g/m²) = 250
Support Media for Auto 2-sided printing
Type
Plain Paper
Size
A4, A5, B5, LTR
Paper Weight
Rear Tray
Plain Paper: 64-105g/m²
Canon paper: Max paper weight: Approx. 300g/m²
(Photo Paper Pro Platinum PT-101)
Cassette
Plain Paper: 64-105g/m²
Ink End Sensor
Electrode type and dot count type combined
Print Head Alignment
Auto/Manual | | Scan | Scanner Type
Flatbed
Scanner Method
CIS (Contact Image Sensor)
Optical Resolution*6
1200 x 2400dpi
Scanning Bit Depth (Input/Output)
Grayscale
16bit/8bit
Colour
RGB each 16bit/8bit
Line Scanning Speed*7
Grayscale
1.5 ms/line (300dpi)
Colour
3.5 ms/line (300dpi)
Flatbed
A4/LTR (216 x 297 mm) | | Copy | Copy
Maximum Document Size
Flatbed
A4/LTR
Compatible Media
Size
A4/A5/B5/LTR/LGL/4x6"/5x7"/Card Size (91 x 55 mm)
Type
Plain Paper
Photo Paper Pro Platinum (PT-101)
Photo Paper Pro Luster (LU-101)
Photo Paper Plus Semi-Gloss (SG-201)
Glossy Photo Paper "Everyday Use" (GP-508)
Matte Photo Paper (MP-101)
Photo Paper Plus Glossy II (PP-201)
Photo Paper Plus Glossy II (PP-208)
Image Quality
3 positions (Economy, Standard, High)
Density Adjustment
9 positions, Auto intensity (AE copy)
Copy Speed*8
Based on ISO/IEC 24734
Click here for Summary Report
Click here for Document Print and Copy Speed Measurement Conditions
Document Colour (sFCOT/Simplex) / (sESAT/Simplex)
Approx. 20sec / 5.1sec
Multiple Copy
Black/Colour:
Max. 99 pages | | Network | Protocol
TCP/IP, SNMP
Wired LAN
Network Type
IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T)
Data Rate
10M/100Mbps (auto switchable)
Wireless
Network Type
IEEE802.11n / IEEE802.11g / IEEE802.11b
Frequency Band
2.4GHz
Channel*9
1-13
Range
Indoor 50m (Depends on the transmission speed and conditions)
Security
WEP64/128bit
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
Direct Connection (Wireless LAN)
Available | | Printing Solutions | AirPrint
Available
Windows 10 Mobile
Available
Mopria
Available
Google Cloud Print
Available
Canon Print Service
for Android
Available
PIXMA Cloud Link
(from smartphone/tablet)
Available
Message in Print
(for iOS/for Android)
Available
Easy Photo-Print Editor
(for iOS/for Android)
Available
Canon PRINT Inkjet/SELPHY
(for iOS/for Android)
Available | | System Requirements | Windows 10 / 8.1 / 7 SP1
(operation can only be guaranteed on a PC with a pre-installed Windows 7 or later.)
Mac OS X 10.10.5 ~ OS X 10.11,
Mac OS v10.12 ~ 10.14 | | General Specifications | Operation Panel
Display
2-Line LCD
Language
32 Selectable Languages: Japanese / English / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovakian / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Thai / Croatian / Vietnamese
Interface
Hi-Speed USB 2.0
PictBridge (Wireless/Wired LAN)
Available
Operating Environment*11
Temperature
5 - 35°C
Humidity
10 - 90% RH (no dew condensation)
Recommended Environment*12
Temperature
15 - 30°C
Humidity
10 - 80% RH (no dew condensation)
Storage Environment
Temperature
0 - 40°C
Humidity
5 - 95% RH (no dew condensation)
Quiet Mode
Available
Acoustic Noise (PC Print)
Plain Paper (A4, B/W)*13
Approx. 50.5dB(A)
Power
AC 100-240V, 50/60Hz
Power Consumption
OFF
Approx. 0.3W
Standby (scanning lamp is off)
USB connection to PC
Approx. 0.8W
Standby (all ports connected, scanning lamp is off)
[EU only - for ErP Lot 26 regulation]
Approx. 1.7W
Time to enter Standby mode
[EU only - for ErP Lot 26 regulation]
Approx. 11min 10sec.
Copying*14
USB connection to PC
Approx. 15W
Typical Electricity Consumption (TEC)*15
0.2kWh
Environment
Regulation
RoHS (EU, China), WEEE (EU)
Duty Cycle
Up to 5,000 pages/month
Dimension (WxDxH)
Factory Configuration
Approx. 403 x 369 x 195 mm
Output/ADF trays extended
Approx. 403 x 671 x 306 mm
Weight
Approx. 8.1kg | | Page Yield | Plain Paper (A4 pages)
(ISO/IEC 24712 test file)*16
Standard:
GI-70 PGBK: 6,000
GI-70 C/M/Y: 7,700
Economy*17:
GI-70 PGBK: 8,300
GI-70 C/M/Y: 7,700
Photo Paper (PP-201, 4x6")
(ISO/IEC 29103 test file)*16
Standard:
GI-70 PGBK: NA
GI-70 C/M/Y: 2,200 | | * Prices, Features, Package Content and Specifications are subject to change without prior notification.* |
|
