Canon · Printers

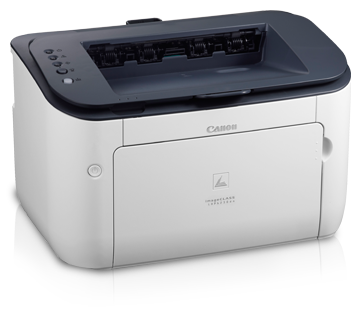

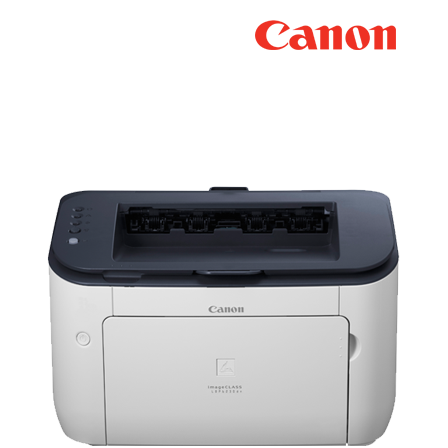

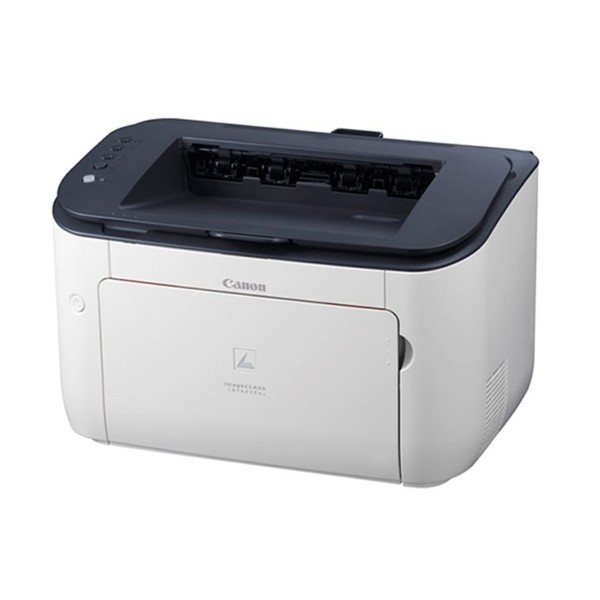

Canon imageCLASS LBP6230dn Mono Laser Printer (Printing Only, Network Ready, Mobile Print)
Model LBP6230dn Print Printing Method: Monochrome Laser Beam PrintingPrint Speed:Simplex: A4: Up to 25ppmDuplex: A4: Up to 7.
Quote on request
✓ Available to order · supplied & installed in Malaysia
| Functions | |
| Connectivity | Ethernet |
| Technology | Laser |
| Colour output | Monochrome |
Product details
| Model | LBP6230dn |
| Printing Method: Monochrome Laser Beam Printing Print Speed: Simplex: A4: Up to 25ppm Duplex: A4: Up to 7.7spm (sheets per minute) Print Resolution: 600 x 600dpi Print Quality with Image Refinement Quality: 1200 x 1200dpi (equivalent) 2400 (equivalent) x 600dpi Warm-Up Time (From Power On): 10secs. or less First Printout Time (FPOT): Approx. 6secs. Recovery Time (From Sleep Mode): Approx. 0.5sec. Print Language: UFR II LT |
|
| Paper Handling | Paper Input (Standard): 250 sheets (based on 80g/m2) Multi-Purpose Tray: 1 sheet (based on 80g/m2) Paper Output: 100 sheets (face down) (based on 80g/m2) Paper Sizes: Standard: A4, B5, A5, Legal(*1), Letter, Executive, 16K, Envelope COM10, Envelope Monarch, Envelope C5, Envelope DL Custom (Width: 76.2 - 216mm x Length 187 - 356mm) Multi-Purpose Tray: A4, B5, A5, Legal(*1), Letter, Executive, 16K, Envelope COM10, Envelope Monarch, Envelope C5, Envelope DL/ Index card Custom (Width: 76.2 - 216mm x Length 127 - 356mm) Paper Weight: Standard: 60 to 163g/m2 Multi-Purpose Tray: 60 to 163g/m2 Paper Type: Plain paper, Heavy Paper, Transparency, Label, Envelope, Index card Duplex Printing: A4, Letter, Legal(*1)(60 - 105g/m2) |
| Connectivity & Software | USB Interface: USB 2.0 High Speed Network Interface: 10 Base T/100 Base Tx Network Protocol: Print: LPD, RAW, WSD-Print Management: SNMPv1, SNMPv3, SLP TCP/IP Application Services: WINS (IPv4), DHCP, BOOTP, RARP, DHCPv6 (IPv6), Auto IP, mDNS, DNS, DDNS Network Security: IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x Mobile Print : Canon Mobile Printing Compatible Operating Systems(*2): Win 8.1(32 / 64bit), Win 8(32 / 64bit), Windows 7(32 / 64-bit), Windows Vista(32 / 64-bit), Windows XP(32 / 64-bit), Windows Server 2012 (32 / 64bit), Windows Server 2012 R2 (64 bit), Windows Server 2008(32 / 64-bit), Windows Server 2008 R2(64-bit), Windows Server 2003 (32 / 64bit), Mac OS 10.6.x~10.9 (*3), Linux (*3), Citrix (FR2 and later) *2. Check www.canon-asia.com for the latest printer driver. *3. The latest drivers for Mac OS and Linux can be downloaded here when available. |
| General Spec | Operation Panel: 4 LED indicators, 3 operation keys Device Memory: 64MB Noise Level(*4): During Operation: Sound Power Level: 6.77B or less Sound Pressure Level: Approx. 52dB During Standby: Sound Power Level: Inaudible(*5) Sound Pressure Level: Inaudible(*5) Maximum Power Consumption: 1100W or less Average Power Consumption: During Operation: Approx. 420W During Standby: Approx. 1.4W During Sleep: Approx. 0.9 W TEC (Typical Electricity Consumption): 0.7kWh/week Operating Environment: Temperature: 10~30°C Humidity: 20% to 80% RH (no condensation) Power Requirement: 220 - 240V (±10%), 50 / 60Hz (±2Hz) Toner Cartridge(*6): Cartridge 326: 2,100 pages (Bundled Cartridge: 900 pages) Monthly Duty Cycle(*7): Up to 8,000 pages *4. Tested in accordance to ISO 7779 and declared per ISO 9296 *5. "Inaudible" means each sound pressure level at bystander's position is less than ISO 7779 absolute criteria for background noise level *6. Toner cartridge yield is in accordance with ISO/IEC 19752 *7. Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Canon laser devices, and does not refer to actual maximum image output per month |
| Dimension | 379 x 293 x 243mm |
| Weight | Approx. 7.0kg |
| * Prices, Features, Package Content and Specifications are subject to change without prior notification.* | |
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Functions | |
| Connectivity | Ethernet |
| Technology | Laser |
| Colour output | Monochrome |
Compare similar
Related products
Canon Cartridge 326 Black Toner Cartridge (CART326B)
Canon
MYR 370.00
Compatible Canon 328 Black Toner Cartridge
Canon
MYR 60.00

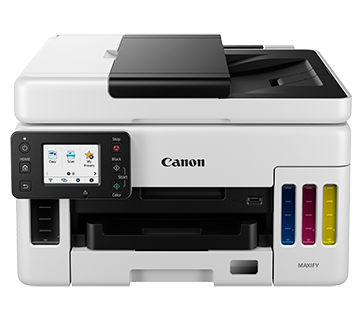

Canon GX6070 Color Inkjet 3-in-1 Printer (Print, Copy, Scan, Wif...
Canon
Quote on request

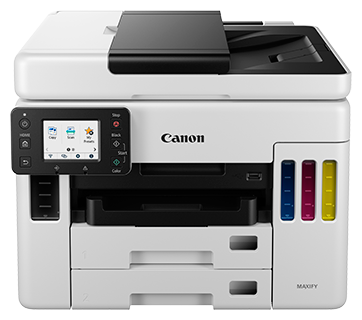

Canon GX7070 Color Inkjet 3-in-1 Printer (Print, Copy, Scan, Wif...
