Canon · Printers

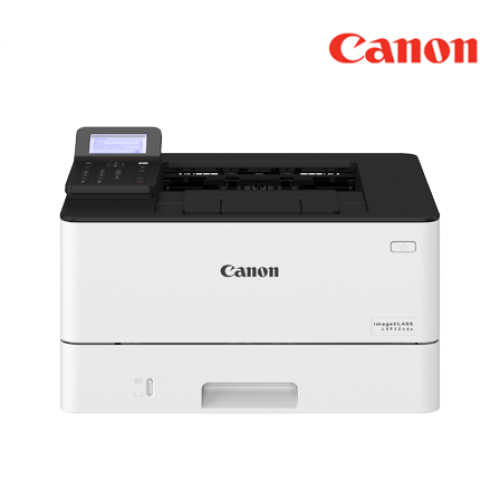

Canon Mono Laser LBP223dw Printer (Print, 33ppm, 1200 x 1200dpi, Auto Duplex, Wi-Fi, Network)

Name: Canon Mono Laser LBP223dw Printer (Print, 33ppm, 1200 x 1200dpi, Auto Duplex, Wi-Fi, Network)
Brand: Canon
SKU: PRD-202607-4190

Canon Mono Laser LBP223dw Printer (Print, 33ppm, 1200 x 1200dpi, Auto Duplex, Wi-Fi, Network) -

Quote on request

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Key specifications
Functions	Print
Print speed	33 ppm
Resolution	1200x1200 dpi
Duplex	Automatic
Connectivity	Ethernet

Full specifications ↓

Product details

SPECIFICATIONS

Model	LBP223dw
Print	Printing Method Monochrome Laser Beam Printing Print Speed A4 33 ppm Letter 34 ppm 2-sided 28 ppm (A4) / 29 ppm (Letter) Print Resolution 600 x 600 dpi Print Quality with Image Refinement Technology 1,200 x 1,200 dpi (equivalent) Warm-Up Time (From Power On) 14 sec or less First Print Out Time (FPOT) (approx.) A4 5.5 sec Letter 5.4 sec Recovery Time (From Sleep Mode) 4.0 sec or less Print Language UFR II, PCL 6 Auto Duplex Print Standard Print Margins Top/Bottom/Left/Right margin: 5 mm Top/Bottom/Left/Right margin: 10 mm (Envelope)
Paper Handling	Paper Input (based on 80 g/m²) Standard Cassette 250 sheets Multi-Purpose Tray 100 sheets Optional Paper Feeder 550 sheets Maximum Paper Input Capacity 900 sheets Paper Output 150 sheets Paper Sizes Standard Cassette / Optional Paper Feeder A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal Custom (min. 105.0 x 148.0 mm to max. 216.0 x 355.6 mm) Multi-Purpose Tray A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Index Card, Envelope (COM10, Monarch, C5, DL) Custom (min. 76.2 x 127.0 mm to max. 216.0 x 355.6 mm) Available Paper Size for Auto Duplex Print A4, Letter, Legal, Foolscap, Indian Legal Paper Types Plain, Thick, Coated, Recycled, Colour, Label, Postcard, Envelope Paper Weight Standard Cassette / Optional Paper Feeder 60 to 120 g/m2 Multi-Purpose Tray 60 to 163 g/m²
Connectivity & Software	Standard Interfaces Wired USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T Wireless Wi-Fi 802.11b/g/n (Infrastructure mode, WPS, Direct Connection) Network Protocol Print LPD, RAW, WSD-Print (IPv4, IPv6) TCP/IP Application Services Bonjour (mDNS), HTTP, HTTPS, POP before SMTP (IPv4, IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6) Management SNMPv1, SNMPv3 (IPv4, IPv6) Network Security Wired IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) Access Point Mode: WPA2-PSK (AES) Other Features Department ID Mobile Solution Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service Compatible Operating Systems Windows®, Windows Server®, Mac® OS, Linux*1 Software Included Printer driver, Toner Status
General	Device Memory 1 GB Display 5-Line LCD with vari-angle Dimensions (W x D x H) (approx.) 401 x 373 x 250 mm Weight (approx.) 8.8 kg Power Consumption (approx.) Maximum (Operation) 1,330 W or less Average (Operation) 480 W Average (Standby) 9.0 W Average (Sleep) 0.9 W (USB/ LAN / Wi-Fi) Operating Environment Temperature 10 - 30°C Humidity 20% - 80% RH (no condensation) Power Requirements AC 220 - 240 V (+/-10%), 50/60 Hz (+/-2 Hz) Toner Cartridge2 Standard Cartridge 057: 3,100 pages (Bundled: 1,500 pages) High Cartridge 057H: 10,000 pages Monthly Duty Cycle3 80,000 pages
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

Warranty
- 3 years On-site Canon Warranty
- Manufactured and warranty provided by Canon

Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD

Delivery & professional installation
Configuration & migration
Manufacturer warranty handling
Annual maintenance & managed services (MSP)

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation

Specifications

Printing & Imaging Specs
Functions	Print
Print speed	33 ppm
Resolution	1200x1200 dpi
Duplex	Automatic
Connectivity	Ethernet
Technology	Laser
Colour output	Monochrome
