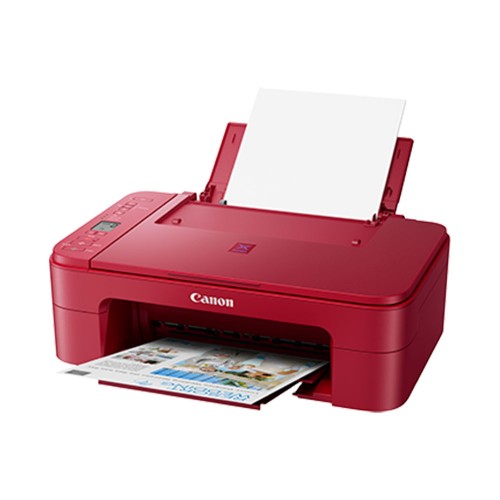

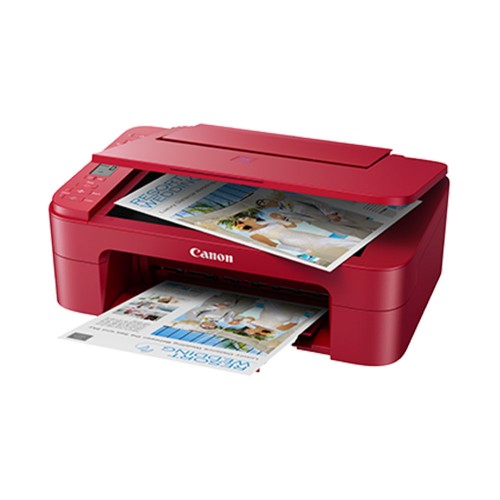

Canon PIXMA E560 Advanced Wireless All-In-One (Print, Scan, Copy, Duplex Print)
Canon PIXMA E560 Advanced Wireless All-In-One (Print, Scan, Copy, Duplex Print) -
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Functions | Print / Scan / Copy |
| Connectivity | Wi-Fi |
Product details
| Printer | |||
| Maximum Printing Resolution | 4800 (horizontal)*1 x 1200 (vertical) dpi | ||
| Print Head / Ink | Type: | FINE Cartridge | |
| Number of Nozzles: | Total 1,792 nozzles | ||
| Ink Droplet Size: | 2 pl | ||
| Ink Tank: | PG-89, CL-99 | ||
| Print Speed*2 Based on ISO / IEC 24734. Click here for summary report Click here for Document Print and Copy Speed Measurement Conditions | Document: Col | ESAT / Simplex | approx. 5.7 ipm |
| Document: B/W | ESAT / Simplex | approx. 9.9 ipm | |
| Photo (4 x 6") | PP-201 / Borderless | approx. 44 sec | |
| Printable Width | Up to 203.2 mm (8 inch), Borderless: Up to 216 mm (8.5 inch) | ||
| Printable Area | Borderless Printing*3 | Top / Bottom / Right / Left margin: each 0 mm (Supported Paper Size: A4, LTR, 4 x 6", 5 x 7", 8 x 10") | |
| Bordered Printing | Top margin: 3 mm, Bottom margin: 5 mm, Left / Right margin: each 3.4 mm (LTR / LGL: Left: 6.4 mm, Right: 6.3 mm) | ||
| Bordered Auto 2-sided printing | Top margin: 5 mm, Bottom margin: 5 mm, Left / Right margin: each 3.4 mm (LTR / LGL: Left: 6.4 mm, Right: 6.3 mm) | ||
| Recommended Printing Area | Top margin: 32.5 mm / Bottom margin: 33.5 mm | ||
| Paper Size | A4, A5, B5, LTR, LGL, 4 x 6", 5 x 7", 8 x 10", Envelopes (DL, COM10), Custom size (width 89 - 215.9 mm, length 127 - 676 mm) * F4 is possible via custom size settings. | ||
| Paper Handling - Front Tray (Maximum Number) | Plain Paper | A4, A5, B5, LTR = 100, LGL = 10 | |
| High Resolution Paper (HR-101N) | A4 = 80 | ||
| Photo Paper Pro Platinum (PT-101) | 4 x 6" = 20, A4 = 10 | ||
| Photo Paper Plus Glossy II (PP-201) | 4 x 6" = 20, A4 = 10 | ||
| Photo Paper Pro Luster (LU-101) | A4 = 10 | ||
| Photo Paper Plus Semi-Gloss (SG-201) | 4 x 6" = 20, A4, 8 x 10" = 10 | ||
| Glossy Photo Paper "Everyday Use" (GP-601) | 4 x 6" = 20, A4 = 10 | ||
| Matte Photo Paper (MP-101) | 4 x 6" = 20, A4 = 10 | ||
| Envelope | European DL / US Com. #10 = 5 | ||
| Support Media for Auto 2-sided printing | Type | Plain Paper | |
| Size | A4, A5, B5, LTR | ||
| Paper Weight | - Front Tray | Plain Paper: 64 - 105 g/m2, Canon specialty paper: max paper weight: approx. 300 g/m2 (Photo Paper Pro Platinum PT-101) | |
| Ink End Sensor | Dot count | ||
| Print Head Alignment | Manual | ||
| Scan*4 | |||
| Scanner Type | Flatbed | ||
| Scanning Method | CIS (Contact Image Sensor) | ||
| Optical Resolution*5 | 1200 x 2400 dpi | ||
| Selectable Resolution*6 | 25 - 19200 dpi | ||
| Scanning Bit Depth (Input / Output) | Grayscale: | 16 / 8-bits | |
| Colour: | 48 / 24-bits (RGB each 16 / 8-bits ) | ||
| Line Scanning Speed*7 | Grayscale: | 1.2 ms/line (300 dpi) | |
| Colour: | 3.5 ms/line (300 dpi) | ||
| Scanning Speed*8 | Reflective: A4 Colour / 300 dpi | Approx. 14 sec | |
| Maximum Document Size | Flatbed: | A4 / LTR (216 x 297 mm) | |
| Copy | |||
| Maximum Document Size | A4 / LTR (216 x 297 mm) | ||
| Compatible Media | Size: | A4, LTR, 4 x 6" (PP-201) | |
| Type: | Plain Paper Photo Paper Plus Glossy II (PP-201) (4 x 6") | ||
| Image Quality | Plain Paper: | Fast, Standard | |
| Copy Speed*9 Based on ISO / IEC 24735 and ISO / IEC 29183 standard. Click here for summary report Click here for Document Print and Copy Speed Measurement Conditions | Document: Colour: sFCOT / Simplex: | approx. 25 sec | |
| Document: Colour: sESAT / Simplex: | Approx. 2.5 ipm | ||
| Multiple Copy | Black / Colour | 1 - 21 pages | |
| Network | |||
| Protocol | TCP / IP | ||
| Wireless | Network Type | IEEE 802.11n / IEEE 802.11g / IEEE 802.11b | |
| Frequency Band | 2.4 GHz | ||
| Channel*10 | 1 - 13 | ||
| Range | indoor 50 m (depends on the transmission speed and conditions) | ||
| Security | WEP 64 / 128-bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES) | ||
| System Requirements | |||
| Windows: | (Please visit www.canon-asia.com to check OS compatibility and to download the latest driver updates.) | Windows 8 / Windows 7 / Windows XP / Windows Vista | |
| Macintosh: | Mac OS X 10.6.8 and later | ||
