Epson · Projectors

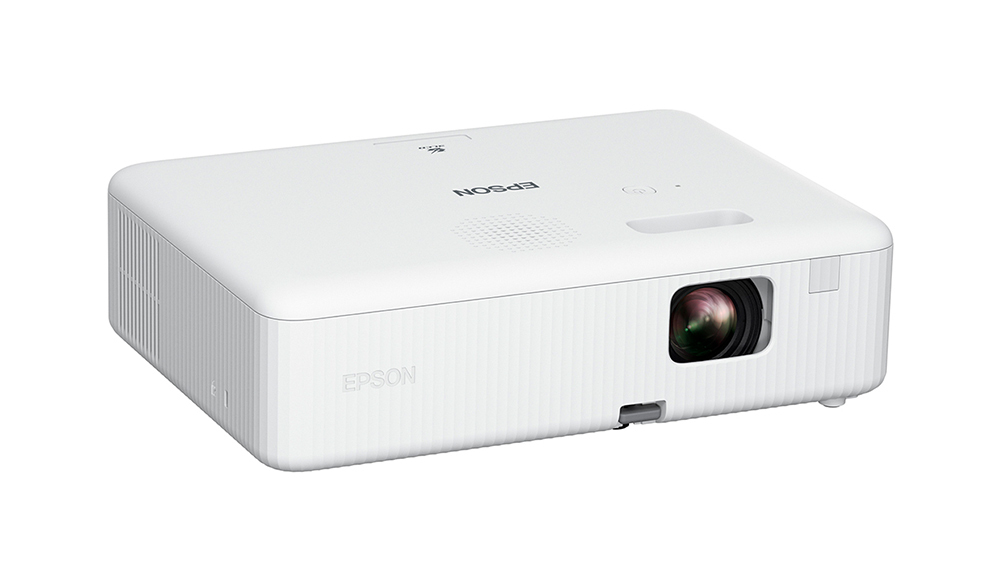

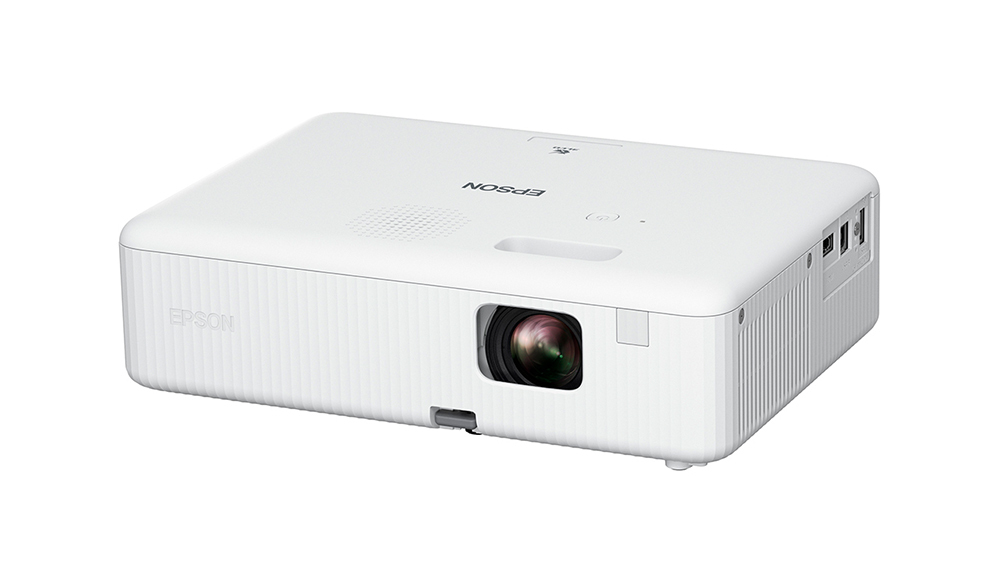

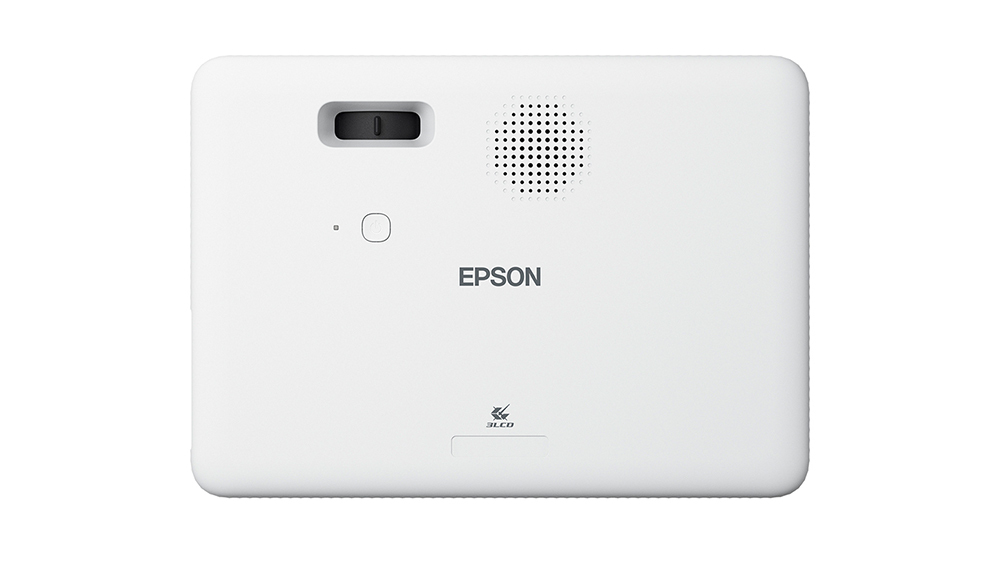

EPSON CO-FH01 PROJECTOR (FHD, 1920 X 1080, 3000 LUMENS, 16000 HOURS)

Name: EPSON CO-FH01 PROJECTOR (FHD, 1920 X 1080, 3000 LUMENS, 16000 HOURS)
Brand: Epson
SKU: PRD-202607-4979

EPSON CO-FH01 PROJECTOR (FHD, 1920 X 1080, 3000 LUMENS, 16000 HOURS) -

Quote on request

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Key specifications
Resolution	1920 x 1080 FHD MP
Type	Entertainment

Full specifications ↓

Product details

Projection Technology:

Projection Technology:RGB liquid crystal shutter projection system

Specifications of Main Parts:

LCD:Size: 0.62-inch (C2 Fine)
Native Resolution: Full HD (1080p)Lightsource:Type: Lamp: 188W UHE
Life1 Normal: 6,000 / Eco: 12,000 hoursProjection Lens:Type: No optical zoom / Focus (Manual)
F-Number: 1.44
Focal Length: 16.4mm
Zoom Ratio: 1.0 – 1.35 (Digital Zoom)
Throw Ratio: 1.19 – 1.61

Connectivity:

USB Interface:USB Type A: 1 (for Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update and Copy OSD Settings)Network:Wired LAN: N/A
Wireless: OptionalAnalog Input:D-Sub 15pin: N/A
Composite: N/AAudio Input:N/AAudio Output:N/AVideo Input:HDMI: 1

Screen Size (Projected Distance):

Screen Size (Projected Distance):34” to 391” [0.89 to 10.40m] (Zoom: Wide)
26” to 290” [0.91 to 10.41m] (Zoom: Tele)
Standard size: 60” screen 1.58m

Geometric Correction:

Vertical/Horizontal Keystone:Vertical: ± 30 degrees
Horizontal: ± 30 degreesAuto Keystone:N/AQuick Corner:Yes

Image Enhancement:

Scene Adaptive Gamma:YesAspect Mode:Yes

Start-Up Period:

Start-Up Period:About 6 seconds / Warm-up period: 30 seconds

Operating Temperature:

Operating Temperature:5 - 40 °C <41 - 104 °F> (0m / 0ft - 2,286m / 7,500ft)
5 - 35 °C <41 - 95 °F> (over 2,286m / 7,500ft)
[20%-80% Humidity, No Condensation]

Operating Altitude:

Operating Altitude:0 m to 3,048 m <0 ft to 10,000 ft>

Power:

Power Consumption:Lamp On (Normal / Eco): 270W / 214W
Standby (Network On / Off): N/A / 0.5WPower Supply Voltage:100 - 240 V AC ±10%, 50/60 Hz

Internal Speaker(s):

Sound Output:5W Monaural

Weight:

Weight:Approx. 2.4 Kg

Direct Power On/Off:

Direct Power On/Off:Yes

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H):211 x 295 x 82 mm

Wireless Specifications (Smart Media Player Function):

Wireless LAN Generation :Wi-Fi 5Frequency Used:IEEE 802.11a (5GHz)*3,
IEEE 802.11b (2.4GHz)*3,
IEEE 802.11g (2.4GHz)*3,
IEEE 802.11n (2.4GHz and 5GHz)*3,
IEEE 802.11ac (5GHz)*3,Supported Codec:WPA2/WPA3-PSK (AES)

Colour Mode:

Colour Mode:Dynamic, Vivid, Cinema, Presentation, Blackboard, sRGB

Brightness:

White Light Output (Normal/Eco):3,000 lm / 2,000 lmColour Light Output:3,000 lmLight Output (Center):Yes [High, Low (Eco)]

Wireless Specifications (Optional Wireless LAN):

Supported Speed for Each Mode:IEEE 802.11b (2.4GHz): 11 Mbps*3, IEEE 802.11g (2.4GHz): 54 Mbps*3, IEEE 802.11n (2.4GHz)*3: 72.2 Mbps*3, IEEE 802.11a (5GHz*3: 54 Mbps*3, IEEE 802.11n (5GHz)*3: 150 Mbps*3Supported Mode:Infrastructure, Access PointSupported Security Type:Infrastructure: Open, WPA2/WPA3-PSK
Access Point: WPA2-PSK (AES)

Cool Down Period:

Cool Down Period:Instant Off

Fan Noise:

Fan Noise (Normal / Eco):38dB / 29dB
