Epson · Projectors

Epson EB-685W Multimedia Projector (WXGA, 1280 x 800, 14,000:1, 3500 lumens, HDMI, D-Sub)

Name: Epson EB-685W Multimedia Projector (WXGA, 1280 x 800, 14,000:1, 3500 lumens, HDMI, D-Sub)
Brand: Epson
SKU: PRD-202607-0454

Epson EB-685W Projector WXGA, 1280 x 800 Resolution | 14,000:1 Contrast Ratio | 3500 lumens | 10,000 Lamp Hours Warranty - 2 year Epson Warranty - Manufacture...

Quote on request

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Key specifications
Resolution	1280 x 800 WXGA MP
Type	Multimedia

Full specifications ↓

Product details

Epson EB-685W Projector

WXGA, 1280 x 800 Resolution | 14,000:1 Contrast Ratio | 3500 lumens | 10,000 Lamp Hours

Warranty
- 2 year Epson Warranty
- Manufactured and warranty provided by Epson

SPECIFICATIONS

Model	Epson EB-685W Projector
Projection Technology	RGB liquid crystal shutter projection system
Brightness	White Light Output (Normal/Eco): 3,500lm / 2,900lm Colour Light Output: 3,500lm

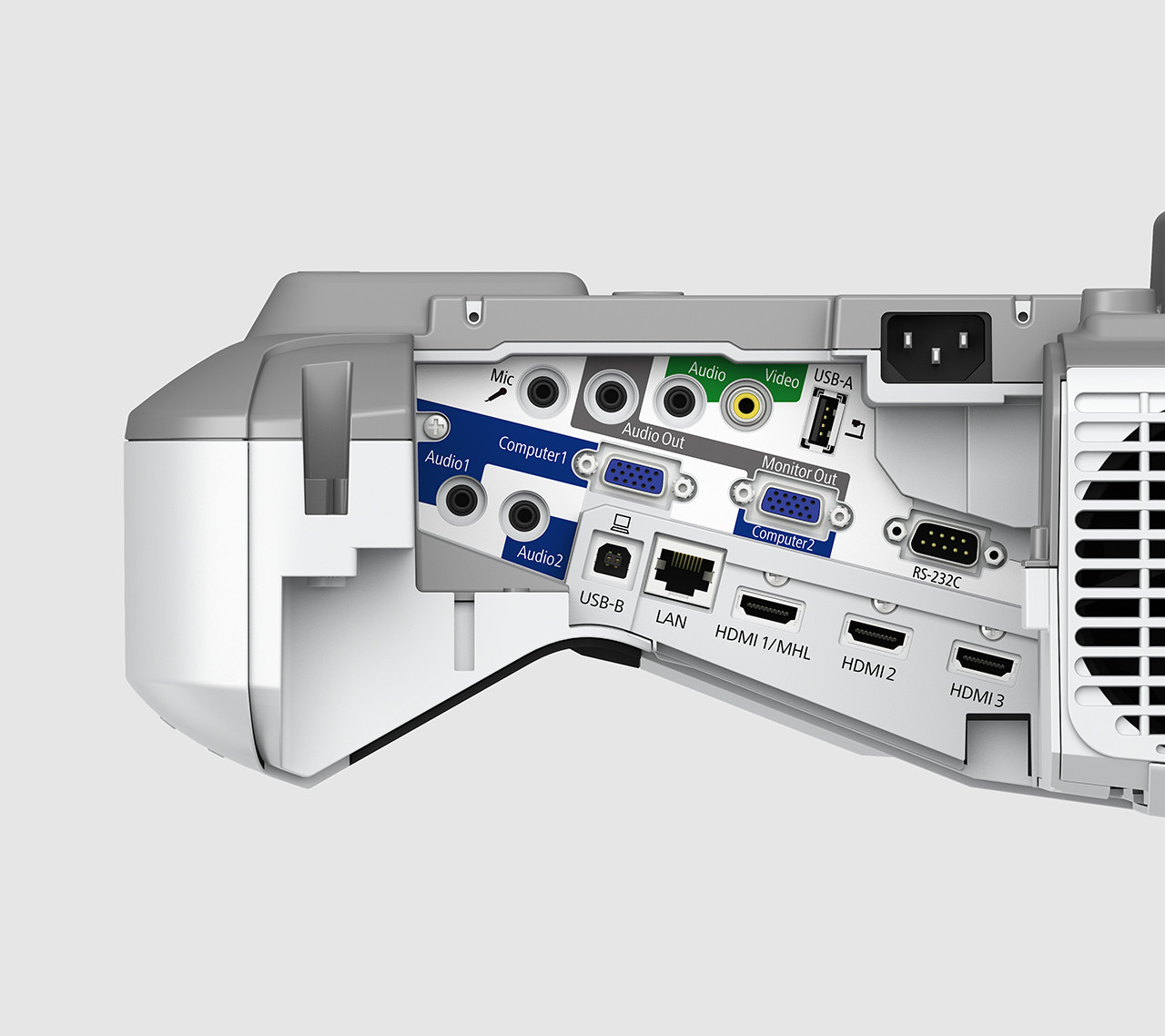

Connectivity	Network: Wired LAN: RJ45 x 1 (100Mbps) Wireless: Optional (ELPAP10) Analog Input: D-Sub 15Pin: 2 (Blue) Composite: RCA x 1 (Yellow) Digital Input: HDMI: 3 (HDMI1 in common with MHL) Output Terminal: D-Sub 15Pin: 1 (Black) In common with Computer2 Audio Input: Stereo Mini Jack: 3 Audio Output: Stereo Mini Jack: 1 Control I/O: RS-232C: D-Sub 9pin x 1 Others: USB Type A: 1 (for USB Memory, USB Document Camera, Firmware Update, Copy OSD Settings) USB Type B: 1 (for USB Display, Mouse, K/B, Control, Firmware Update, Copy OSD Settings)
Contrast Ratio	14,000:1
Wireless Specifications:	Supported Speed for Each Mode: IEEE 802.11b: 11 Mbps3 IEEE 802.11g: 54 Mbps3 IEEE 802.11n: 130 Mbps*3 Wireless LAN Security: WPA/WPA2-Personal (with optional ELPAP10)
Screen Size (Projected Distance)	Screen Size (Projected Distance): 60” - 100” [35.4 - 60.1 cm] 74.3” screen 44.3cm
Operating Temperature	Single Use: 5 - 40 °C <41 - 104 °F> (0m / 0ft - 2,286m / 7,500ft) 5 - 35 °C <41 - 95 °F> (over 2,286m / 7,500ft) (20% - 80% humidity, No Condensation) Multi-projection Use: 5 - 35 °C <41 - 95 °F> (0m / 0ft - 2,286m / 7,500ft) 5 - 30 °C <41 - 86 °F> (over 2,286m / 7,500ft) (20% - 80% humidity, No Condensation)
Operating Altitude	Operating Altitude: 0 - 3,000 m <0 - 9,843 ft>
Start-Up Period	About 8 seconds, Warm-up Period: 30 seconds
Cool Down Period	Instant Off
Internal Speaker(s)	Sound Output: 16W Mono
Dimension Excluding Feet	367 x 149 mm x 400
Weight	5.7kg
Air Filter	Type: Electrostatic Filter Maintenance Cycle*4: 5,000 hours (Power Consumption: Normal) 10,000 hours (Power Consumption: Eco)
Fan Noise	Fan Noise (Normal / Eco / Eco2): 35dB / 30dB / 29dB
Power	100 - 240 V AC ±10%, 50/60 Hz
Main Parts Specification	LCD: Size: 0.59” (D9 C2fine) Native Resolution: WXGA Lamp: Type: 250W UHE Life (Normal / Eco / Eco2)*1: 5,000 hours / 10,000 hours / 9,000 hours
Keystone Correction	Vertical/Horizontal: ±3° / ±3° Quick Corner: Yes
Others	Microphone Input: 1
Direct Power On / Off	Direct Power On / Off: Yes
* Features, Package Content and Specifications are subject to change without prior notification.*

Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD

Delivery & professional installation
Configuration & migration
Manufacturer warranty handling
Annual maintenance & managed services (MSP)
