Mikrotik CCR1016-12S-1S+ 1U rackmount, 12xSFP cage, 1xSFP+ cage, 16 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, RouterOS L6
Mikrotik CCR1016-12S-1S+ 1U rackmount, 12xSFP cage, 1xSFP+ cage, 16 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, RouterOS L6 -
Product details
CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.
This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

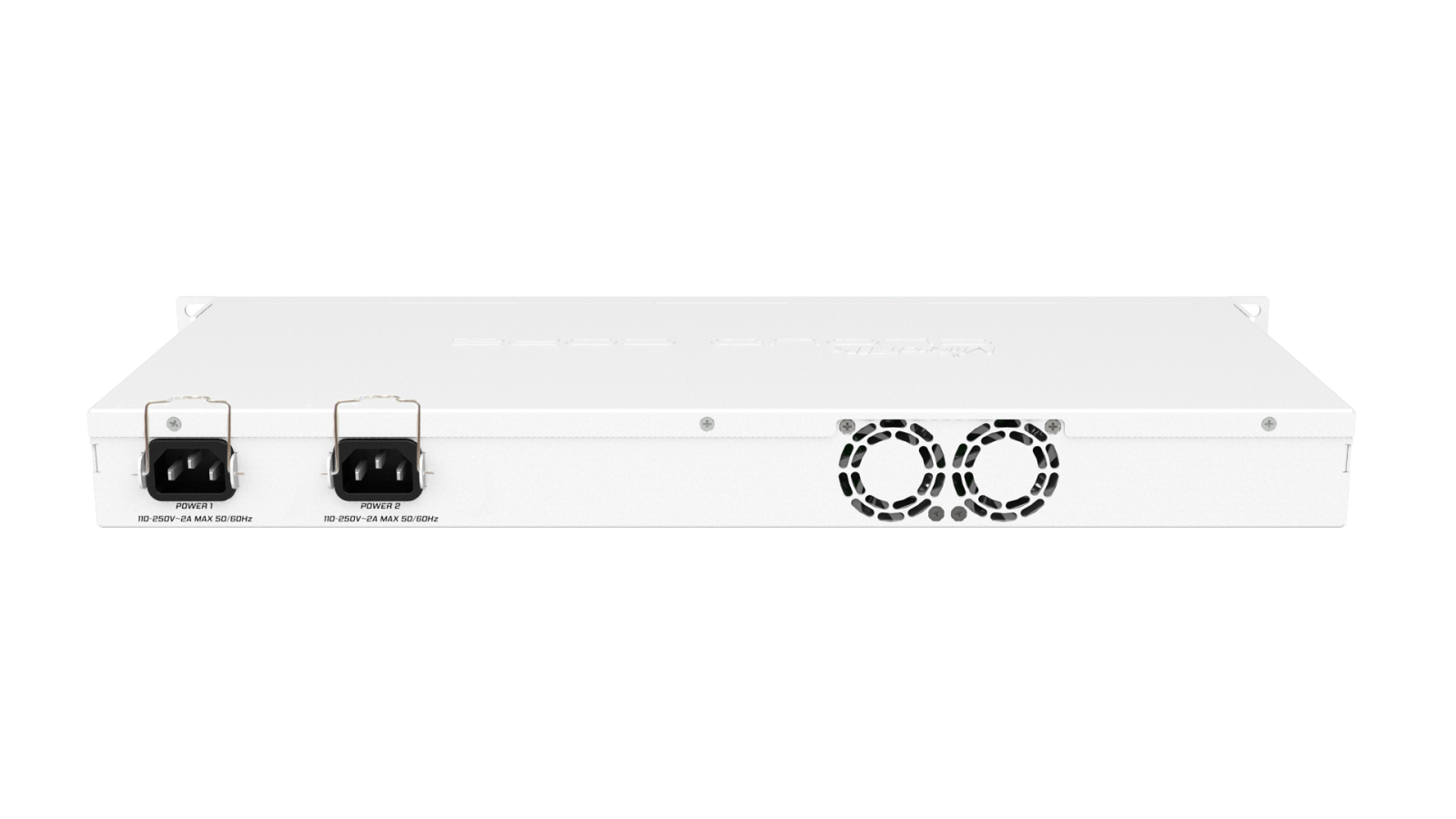

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.
SPECIFICATIONS
| Details | |
|---|---|
| Product code | CCR1016-12S-1S+ |
| Architecture | TILE |
| CPU | TLR4-01680 |
| CPU core count | 16 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 443 x 197 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
POWERING
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 47.5 W |
| Max power consumption without attachments | 34 W |
| Cooling type | 2 |
FIBER
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 12 |
| SFP+ ports | 1 |
PERIPHERALS
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
OTHER
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Mode button | Yes |
| Beeper | Yes |
CERTIFICATION & APPROVALS
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
