Mikrotik RB260GSP 5x Gigabit PoE out Ethernet Smart Switch, SFP cage, plastic case, SwOS
Mikrotik RB260GSP 5x Gigabit PoE out Ethernet Smart Switch, SFP cage, plastic case, SwOS -
Product details

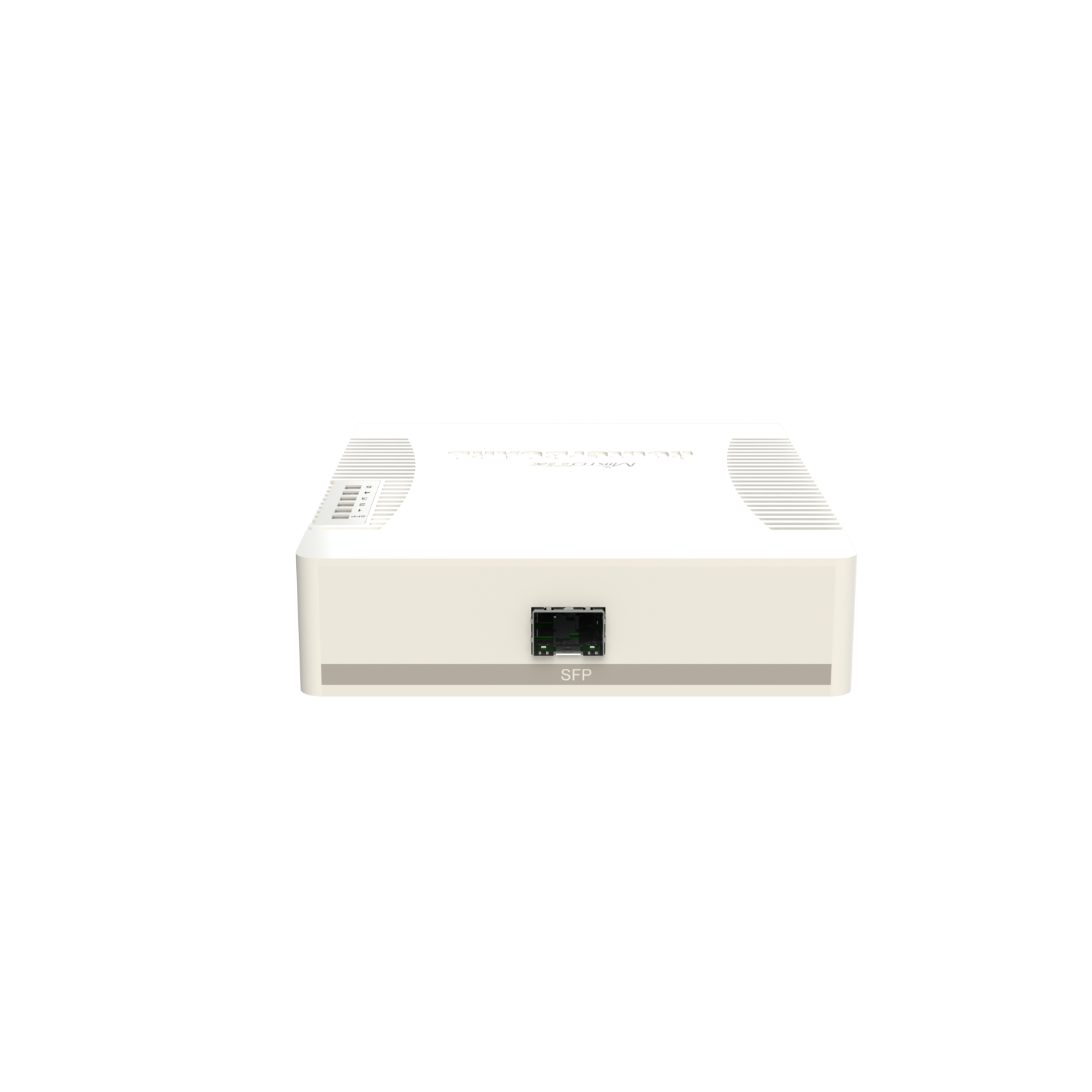

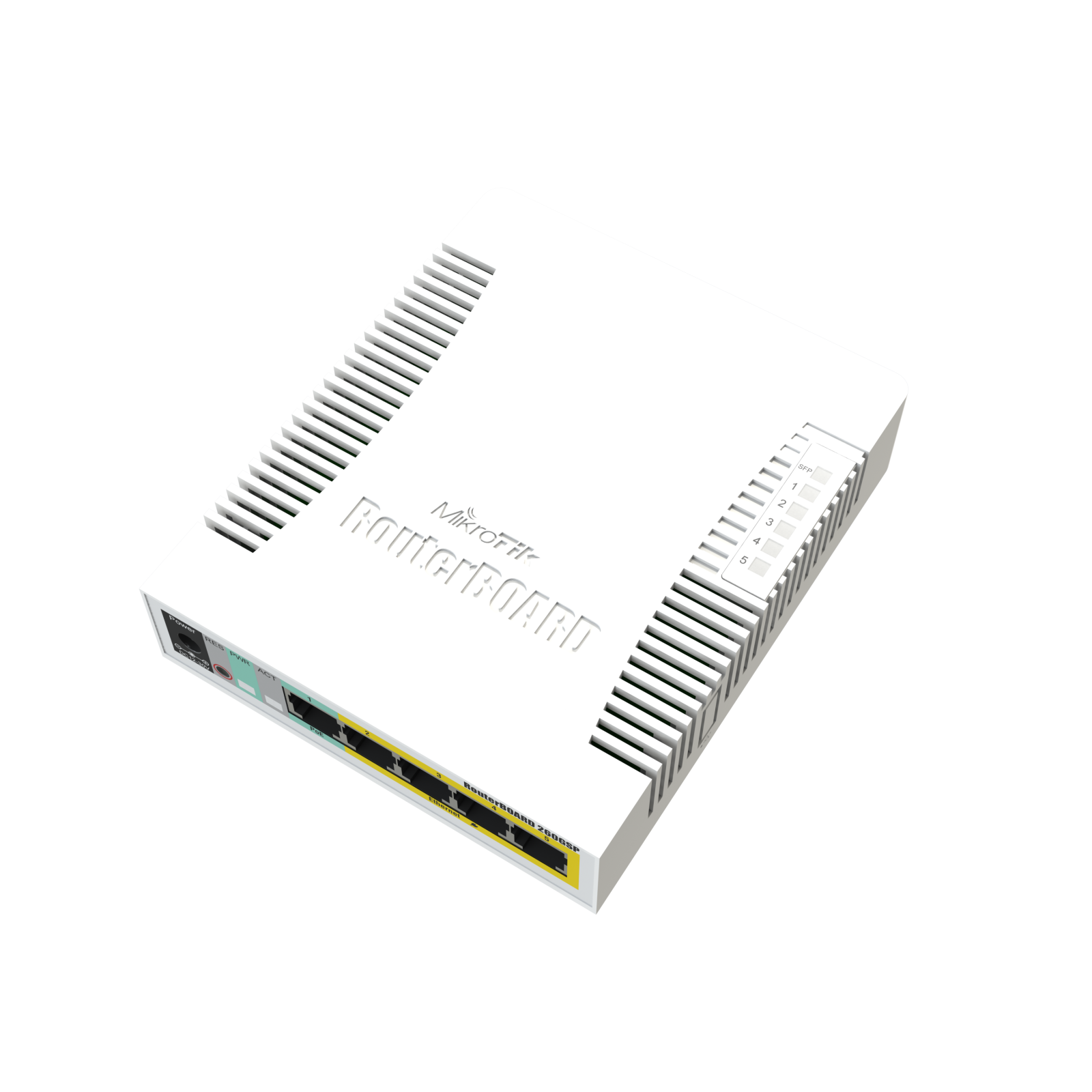

The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.
SPECIFICATIONS
| Details | |
|---|---|
| Product code | CSS106-1G-4P-1S |
| Dimensions | 113x139x28mm |
| Operating System | MikroTik SwOS |
| Storage size | 128 KB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
POWERING
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-30 V |
| Max power consumption | 53 W |
| Max power consumption without attachments | 5 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
POE-OUT
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 1 A |
| Max total out (A) | 2 A |
ETHERNET
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
FIBER
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
OTHER
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
CERTIFICATION & APPROVALS
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
