Product details

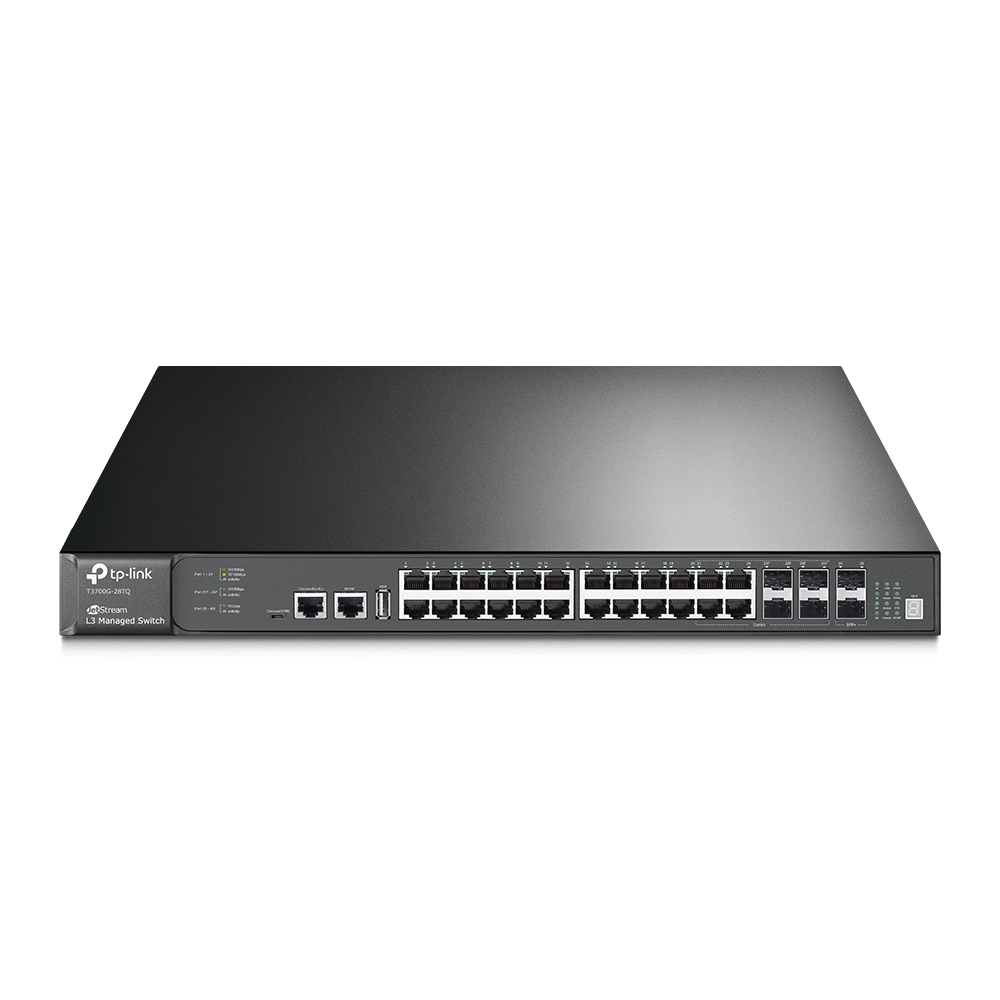

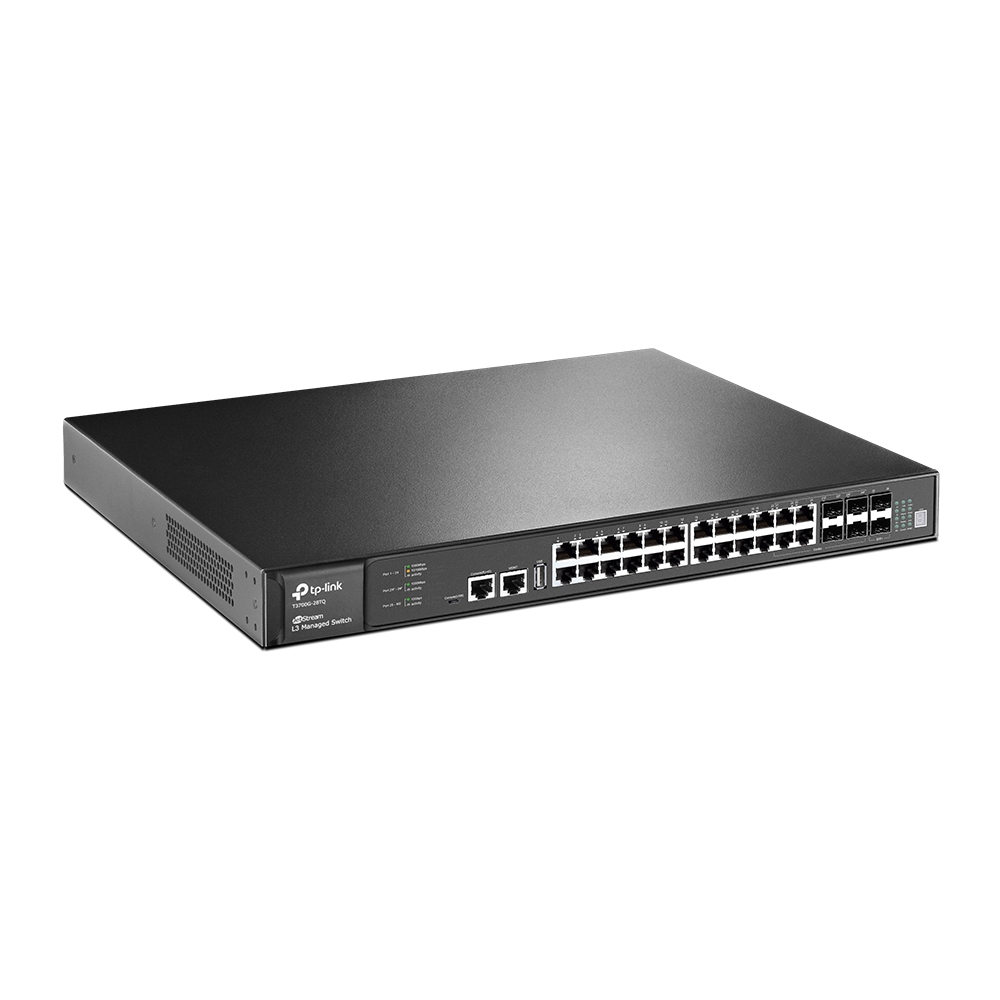

JetStream™ 24-Port Gigabit Stackable L3 Managed Switch with 4 10G SFP+ Slots
PORT: 24× Gigabit RJ45 Ports, 4× Combo Gigabit SFP Slots, 2 Integrated 10G SFP+ Slots, 2× Optional 10G SFP+ Slots, RJ45/Micro-USB Console Port, Management Port, USB Port

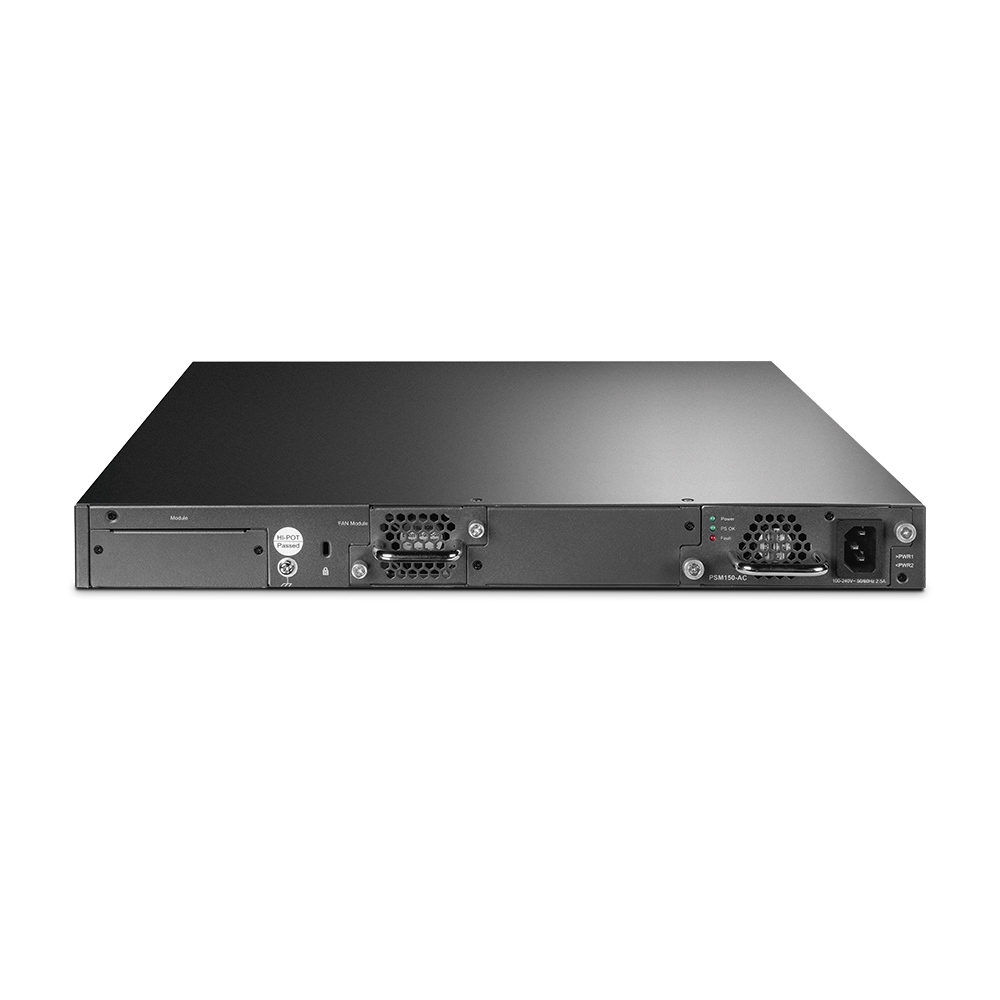

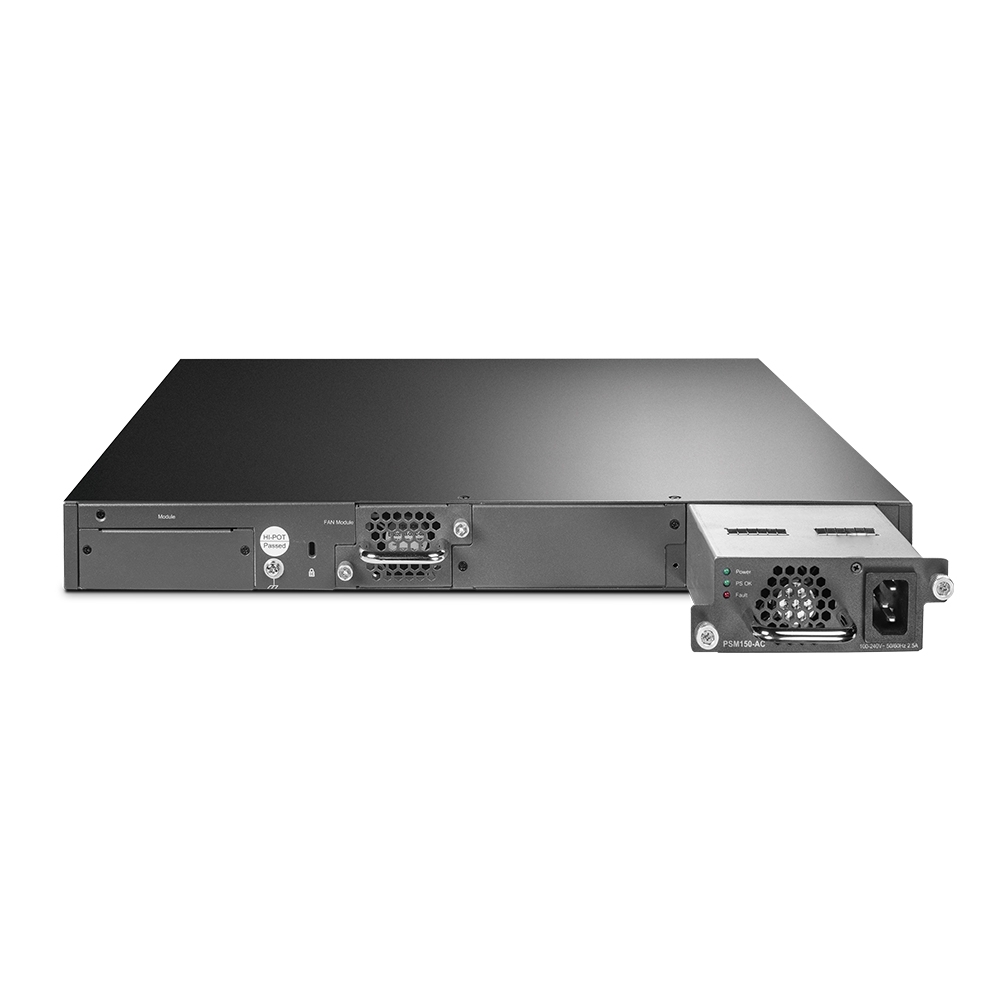

SPEC: 1U 19-inch Rack-mountable Steel Case, Dual Removable Power Unit, True Physical Stacking Up to 8 Units
FEATURE: Static Routing/RIP/OSPF/ECMP/VRRP, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, PIM-SM/PIM-DM, IGMP, IGMP Snooping, 802.1p/DSCP QoS, 802.1x, Radius/Tacacs+ Authentication, ACL, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
| HARDWARE FEATURES |
|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
|---|
| Interface | 24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 combo gigabit SFP Slots
Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots)
1 Console Port |
|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR |
|---|
| Fan Quantity | 1 removable fan module |
|---|
| Physical Security Lock | No |
|---|
| Power Supply | 100~240VAC, 50/60Hz |
|---|
| Dimensions ( W x D x H ) | 17.32*13*1.73 in.(440*330*44 mm) |
|---|
| Mounting | Rack Mountable |
|---|
| Max Power Consumption | 47W (220V/50Hz) |
|---|
| Max Heat Dissipation | 160.36 BTU/h |
|---|
| PHYSICAL STACKING |
|---|
| Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables | TXM431-SR
TXM431-LR
TXC432-CU1M
TXC432-CU3M |
|---|
| Max Number of Stacking Ports Installable | 2 SFP+ |
|---|
| Stacking Speed (Per Port) | 20 Gbps (Full-Duplex) |
|---|
| No. of Units Per Stack | 8 |
|---|
| PERFORMANCE |
|---|
| Switching Capacity | Up to 128Gbps for a standalone switch |
|---|
| Bandwidth/Backplane | Up to 320Gbps when 8 units in the stack |
|---|
| Packet Forwarding Rate | Up to 95.2Mpps for a standalone switch |
|---|
| MAC Address Table | 32K |
|---|
| Packet Buffer Memory | 32 Mbits |
|---|
| Jumbo Frame | 12 KB |
|---|
| Number of Routes | 8K |
|---|
| Number of Static Routes | 256 |
|---|
| Number of IP Interfaces | 128 |
|---|
| SOFTWARE FEATURES |
|---|
| Quality of Service | Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN |
|---|
| L2 Features | IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 32 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control |
|---|
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP |
|---|
| Access Control List | L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based |
|---|
| Security | IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control |
|---|
| L3 Features | Wire-speed IP forwarding
Static Routing
RIP v1, v2
OSPF v2
ECMP
PIM-SM/PIM-DM/IGMP
DHCP Server/Relay
ARP Proxy
VRRP |
|---|
| Management | Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image |
|---|
| OTHERS |
|---|
| Certification | CE, FCC, RoHS |
|---|
| Package Contents | Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet |
|---|
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
|---|
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
