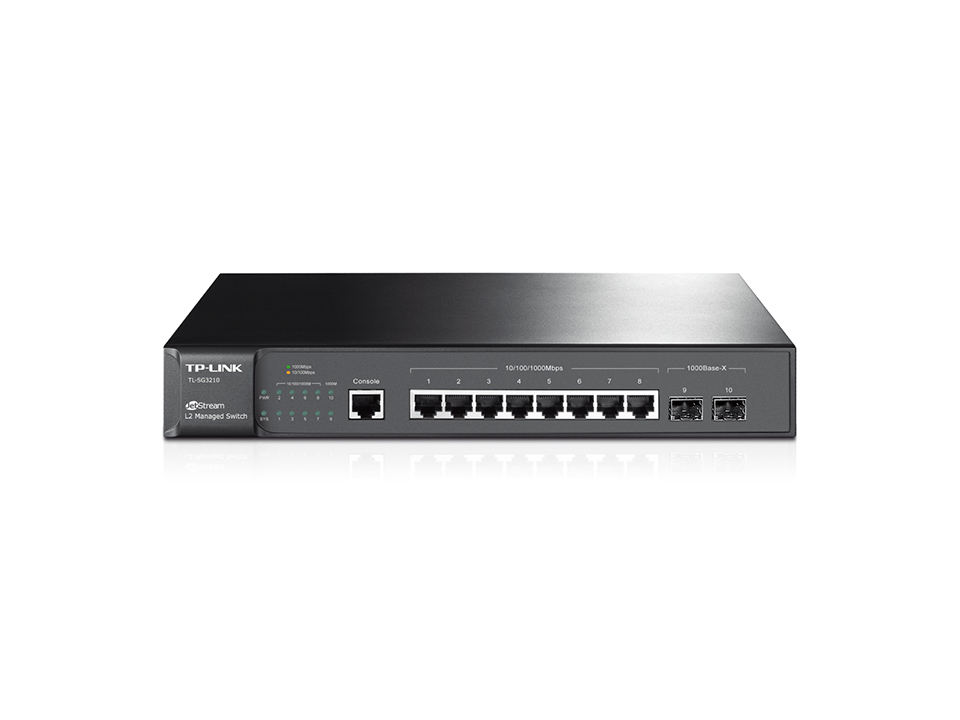

Omada TL-SG3210 JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots
TP-Link · Switches

Omada TL-SG3210 JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots

Buy Omada TL-SG3210 JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots, TP-Link from Printer Bullet - Everything for office. Fast & Free Home Delivery....

Quote on request
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question

Product details

JetStream™ 8-Port Gigabit Smart Switch

PORT: 8× Gigabit RJ45 Ports including 1 PoE IN Port

SPEC: Desktop Steel Case

FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6


HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,
IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,
IEEE 802.1x,IEEE 802.1p
Interface8 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 1000Mbps SFP Slots
1 Console Port
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan QuantityFanless
Power Supply100～240VAC, 50/60Hz
Power ConsumptionMaximum: 10.7W (220V/50Hz)
Dimensions ( W x D x H )11.6*7.9*1.7in. (294*200*44 mm)
PERFORMANCE
Bandwidth/Backplane20Gbps
Packet Forwarding Rate14.9Mpps
MAC Address Table8k
Packet Buffer Memory4Mb
Jumbo Frame10240 Bytes
SOFTWARE FEATURES
Quality of ServiceSupport 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 FeaturesIGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
Port isolation
BPDU filtering/guard
TC/Root protect
Loop back detection
802.3x Flow Control
VLANSupports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based VLAN
GARP/GVRP
Management VLAN configuration
Access Control ListL2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID;
Time Range Based
SecurityIP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
IPv6Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 ApplicationsDHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
ManagementWeb-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
OTHERS
CertificationCE, FCC, RoHS
Package ContentsSwitch; Power Cord; Quick Installation Guide;Resource CD; Rackmount Kit; Rubber Feet
System RequirementsMicrosoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
  • Delivery & professional installation
  • Configuration & migration
  • Manufacturer warranty handling
  • Annual maintenance & managed services (MSP)
Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation
Compare similar

Related products

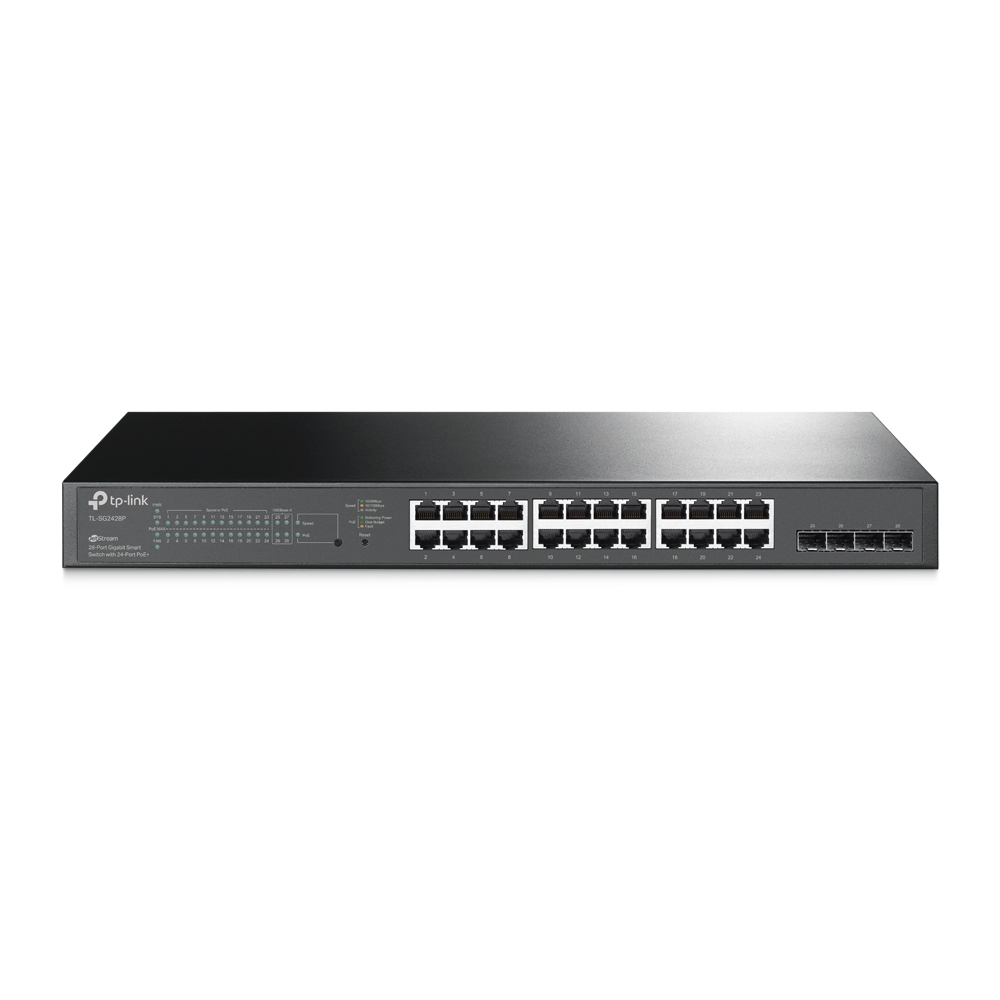

Omada TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
Omada TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-...
TP-Link
Quote on request

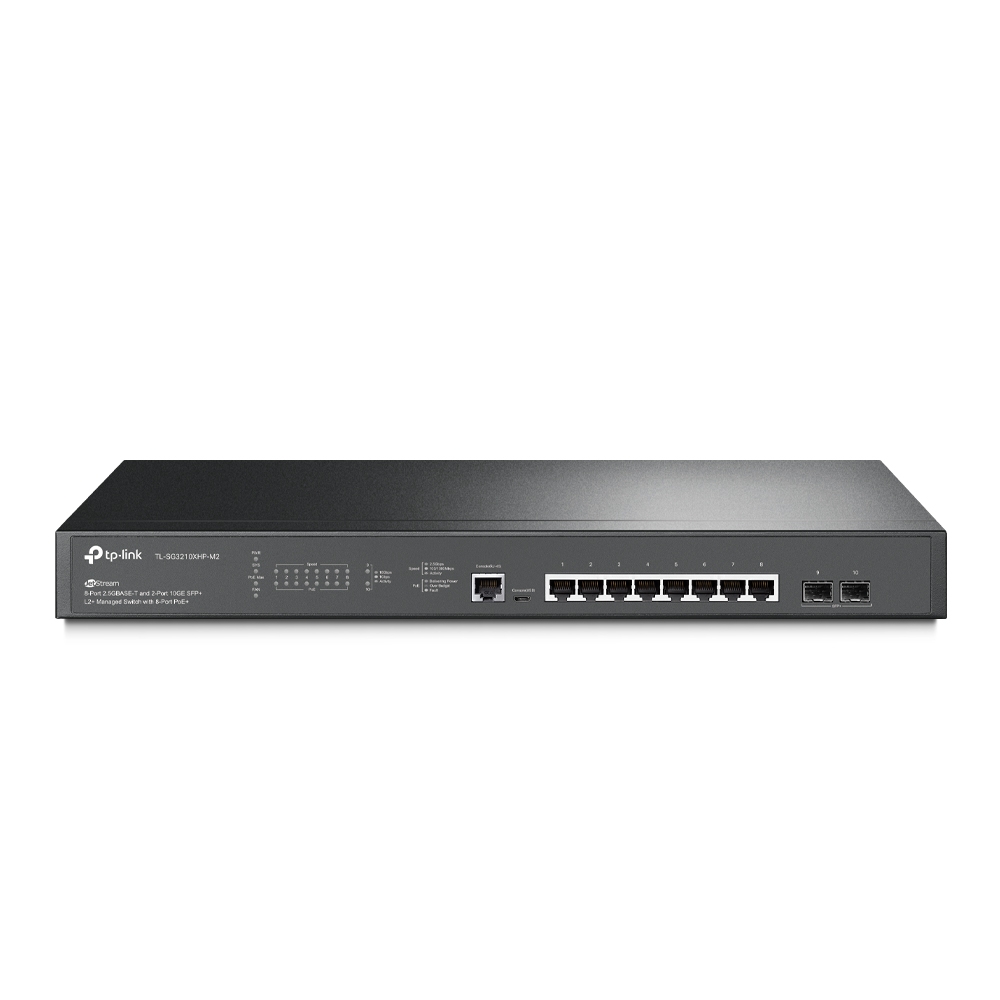

 Omada TL-SG3210XHP-M2 JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
Omada TL-SG3210XHP-M2 JetStream 8-Port 2.5GBASE-T and 2-Port 10G...
TP-Link
Quote on request

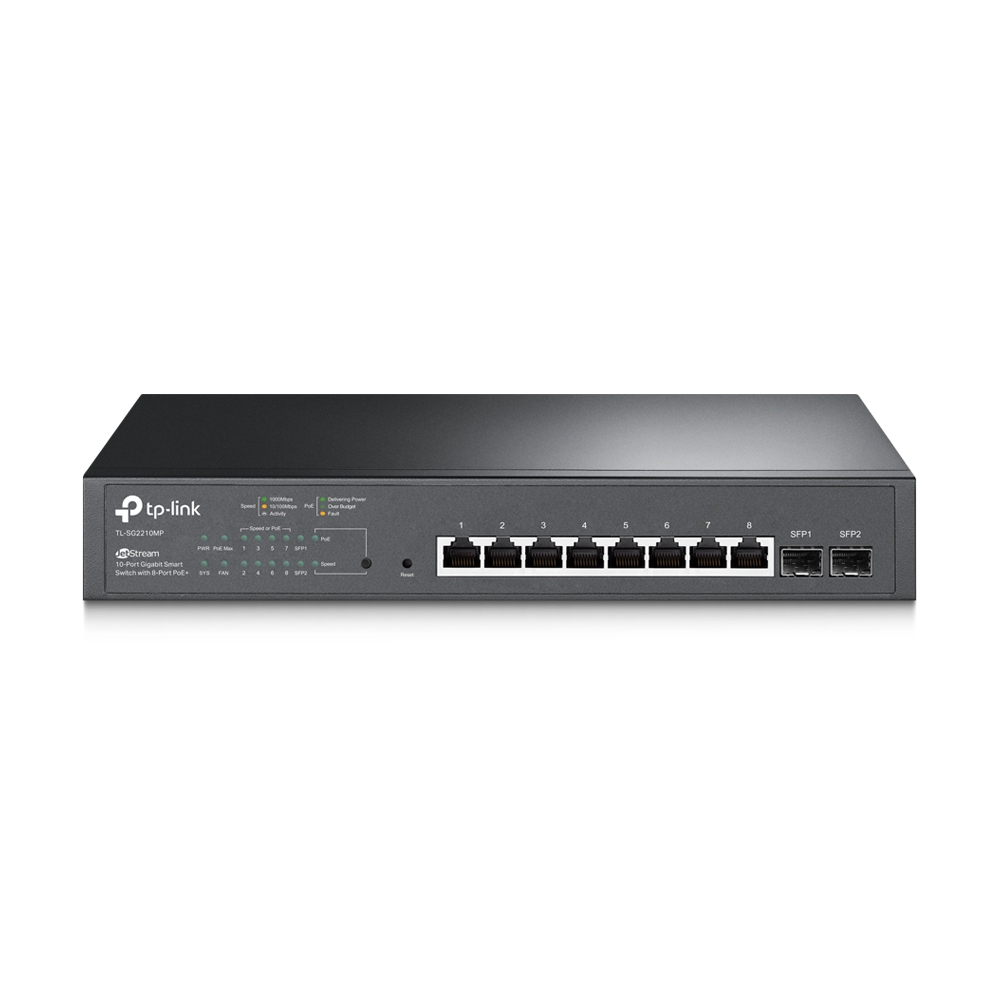

 Omada TL-SG2210P JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
Omada TL-SG2210P JetStream 10-Port Gigabit Smart Switch with 8-P...
TP-Link
Quote on request

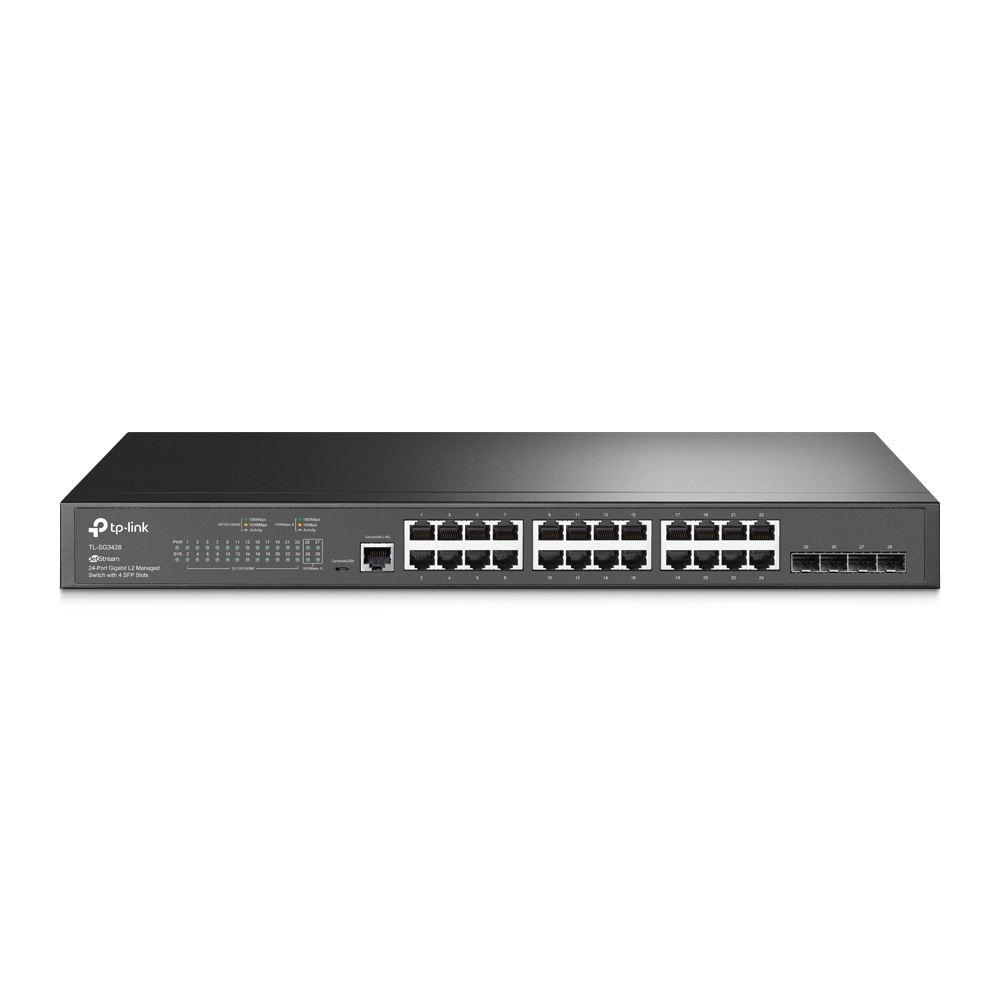

 Omada TL-SG3428 JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
