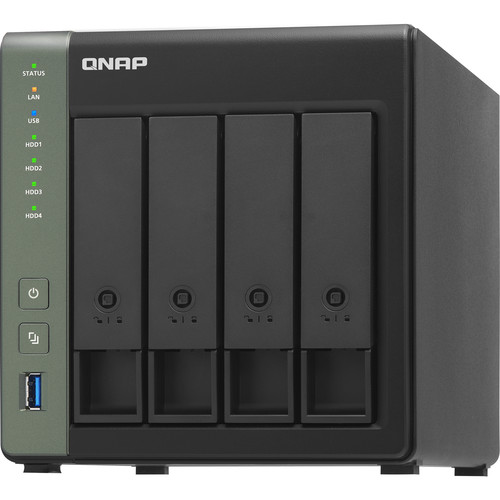

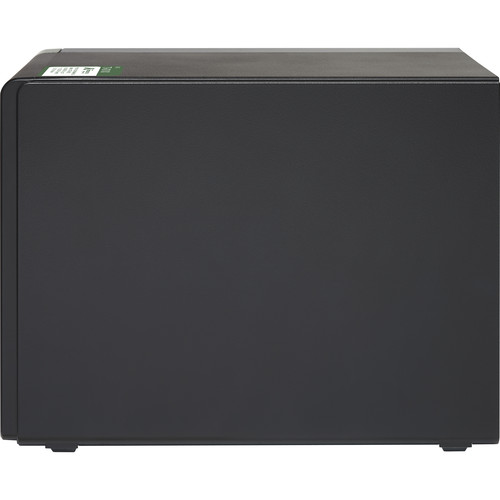

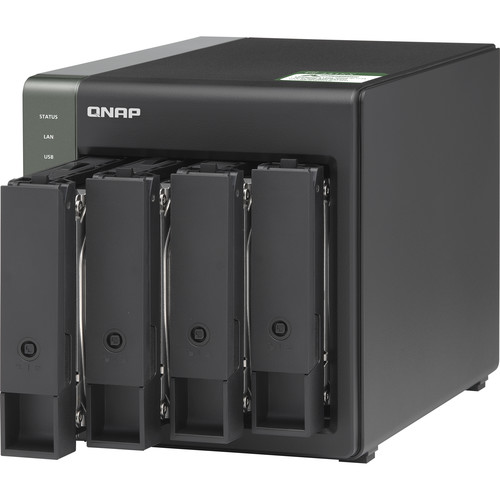

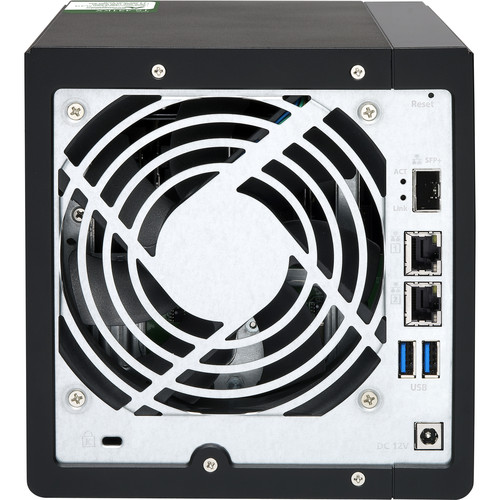

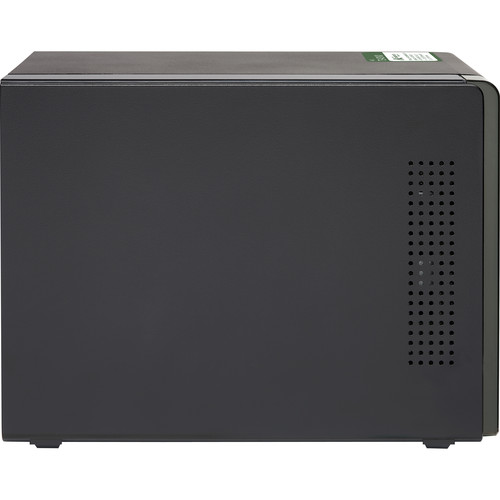

QNAP TS-431KX-2G (4-Bay NAS, Annapurna Labs AL214 Quad core 1.7GHz, 2GB DDR3L SODIMM RAM (max 8GB))
Buy QNAP TS-431KX-2G (4-Bay NAS, Annapurna Labs AL214 Quad core 1.7GHz, 2GB DDR3L SODIMM RAM (max 8GB)), Qnap from Printer Bullet - Everything for office. Fast...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | Tower |
Product details
Key Features
- 4 x 3.5" / 2.5" SATA III Drive Bays
- 1.7 GHz Annapurna Labs AL214 Quad-Core
- 2GB DDR3 RAM
- 2 x RJ45 Gigabit Ethernet Ports
- 1 x 10Gb SFP+ Port
- 3 x USB 3.1 Gen 1 Ports
- RAID 0, 1, 5, 6, 10, JBOD, Single
- Up to 1117 MB/s Sequential Read Speeds
- Up to 511 MB/s Sequential Write Speeds
- QTS 5.0.0
TS-431KX-2G
| CPU | AnnapurnaLabs, an Amazon company Alpine AL214, 4-core, 1.7GHz | ||||
| CPU Architecture | 32-bit ARM | ||||
| Floating Point Unit | |||||
| Encryption Engine | |||||
| System Memory | 2 GB SODIMM DDR3 (1 x 2 GB) | ||||
| Maximum Memory | 8 GB (1 x 8 GB) | ||||
| Memory Slot | 1 x SODIMM DDR3 | ||||
| Flash Memory | 512 MB (Dual boot OS protection) | ||||
| Drive Bay | 4x 3.5-inch SATA 6Gb/s, 3Gb/s | ||||
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives | ||||
| Hot-swappable | |||||
| SSD Cache Acceleration Support | |||||
| Gigabit Ethernet Port (RJ45) | 2 | ||||
| 10 Gigabit Ethernet Port | 1 x 10GbE SFP+ | ||||
| Wake on LAN (WOL) | Only the 1GbE port | ||||
| Jumbo Frame | |||||
| USB 3.2 Gen 1 port | 3 | ||||
| Form Factor | Tower | ||||
| LED Indicators | Power, Status, LAN, USB, HDD1-4 | ||||
| Buttons | Power, Reset, USB Auto Copy | ||||
| Dimensions (HxWxD) | 165 × 160.2 × 220.5 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) | ||||
| Weight (Net) | 3.47 kg | ||||
| Weight (Gross) | 3.47 kg | ||||
| Operating Temperature | 0 - 40 °C (32°F - 104°F) | ||||
| Storage Temperature | -20 - 70°C (-4°F - 158°F) | ||||
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | ||||
| Power Supply Unit | 90W adapter (12VDC), 100-240VAC | ||||
| Power Consumption: HDD Sleep Mode | 11.65 W | ||||
| Power Consumption: Operating Mode, Typical | 26.7 W Tested with drives fully populated. | ||||
| Fan | 1 x 120mm, 12VDC | ||||
| System Warning |
