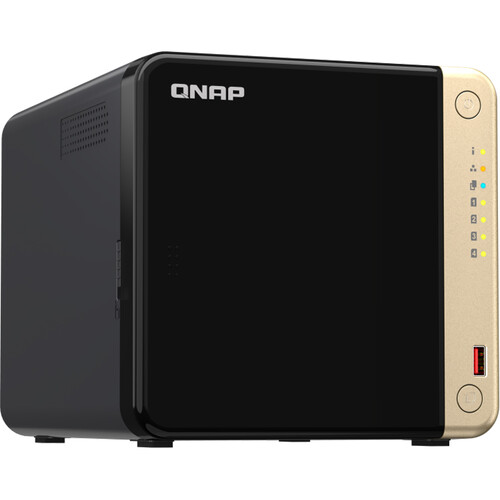

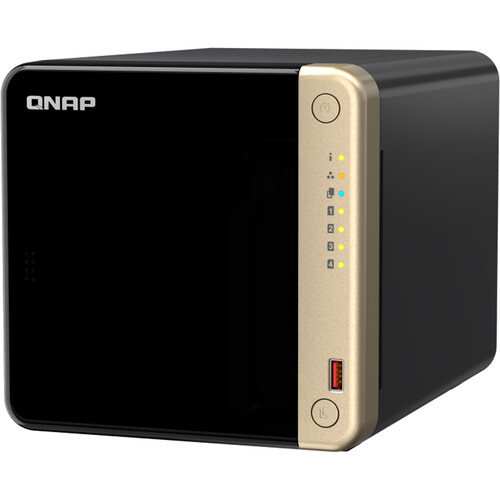

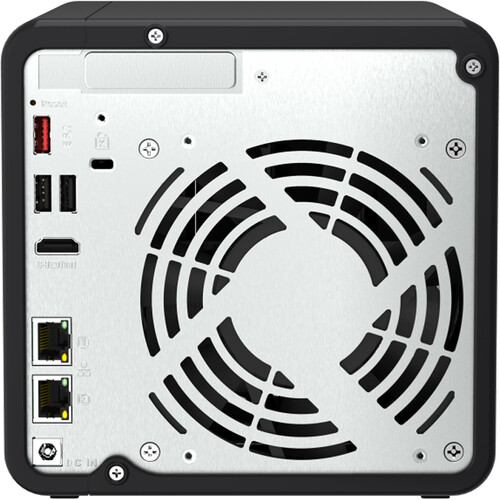

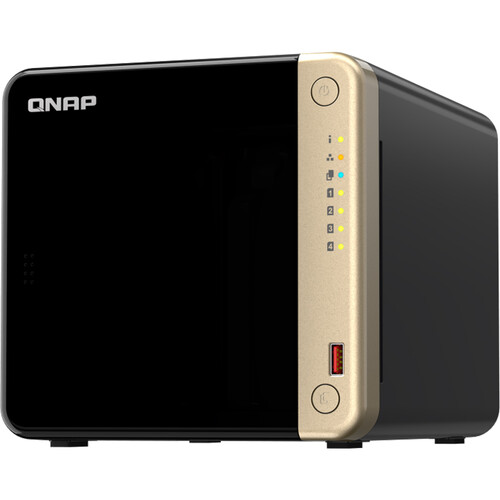

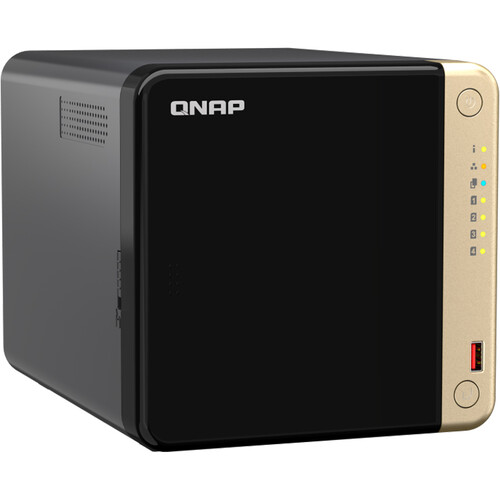

QNAP TS-464 (4-Bay desktop NAS, Intel Celeron N5105/N5095 quad-core, 4GB DDR4 SODIMM RAM)
QNAP TS-464 (4-Bay desktop NAS, Intel Celeron N5105/N5095 quad-core, 4GB DDR4 SODIMM RAM) - Key Features4 x 3.
| Form factor | Tower |
Product details
Key Features
- 4 x 3.5/2.5" SATA III 6 Gb/s Drive Bays
- 2 x M.2 2280 PCIe 3.0 x1 Slots
- 2.0 GHz Intel Celeron N5095 4-Core
- 8GB of RAM
- 2 x 2.5GbE Ports
- 2 x USB-A 3.2 Gen 2 Ports
- 1 x HDMI 2.1 Port
- 1 x PCIe 3.0 x2 Slot
- RAID 0, 1, 5, 6, 10, JBOD, and Single
- QTS 5.0.1 Operating System
TS-464-4G
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz | ||
| CPU Architecture | 64-bit x86 | ||
| Graphic Processors | Intel® UHD Graphics | ||
| Floating Point Unit | |||
| Encryption Engine | (AES-NI) | ||
| Hardware-accelerated Transcoding | |||
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) | ||
| Maximum Memory | 16 GB (2 x 8GB) | ||
| Memory Slot | 2 x SODIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules. | ||
| Flash Memory | 4GB (Dual boot OS protection) | ||
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s The system is shipped without HDD. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ | ||
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives | ||
| Hot-swappable | |||
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility. | ||
| SSD Cache Acceleration Support | |||
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) | ||
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card | ||
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card | ||
| Wake on LAN (WOL) | |||
| Jumbo Frame | |||
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches. | ||
| USB 2.0 port | 2 | ||
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A | ||
| IR Sensor | (Optional QNAP RM-IR004 remote control) | ||
| HDMI™ Output | 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) | ||
| Form Factor | Tower | ||
| LED Indicators | Power/Status, LAN, USB, HDD1-4 | ||
| Buttons | Power, USB copy, Reset | ||
| Dimensions (HxWxD) | 165 × 170 × 226.5 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) | ||
| Compute Specs | |
|---|---|
| Form factor | Tower |
