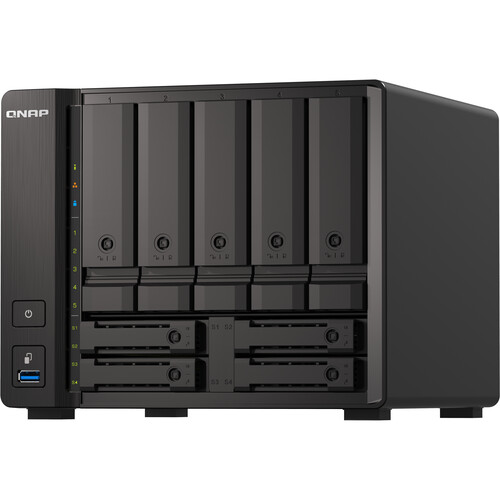

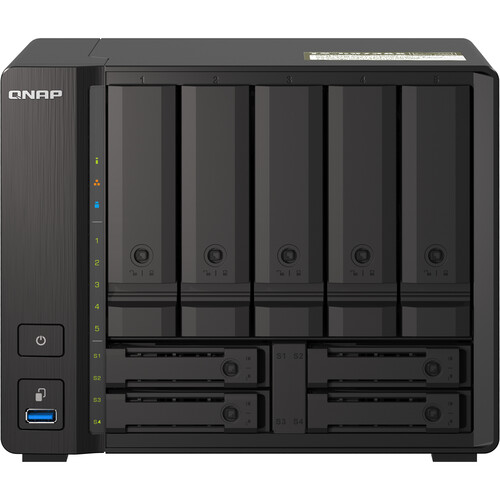

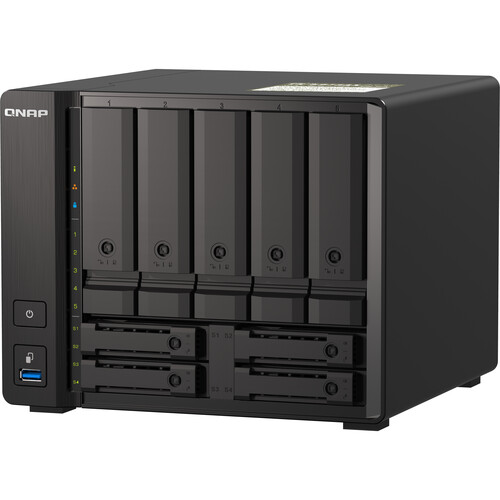

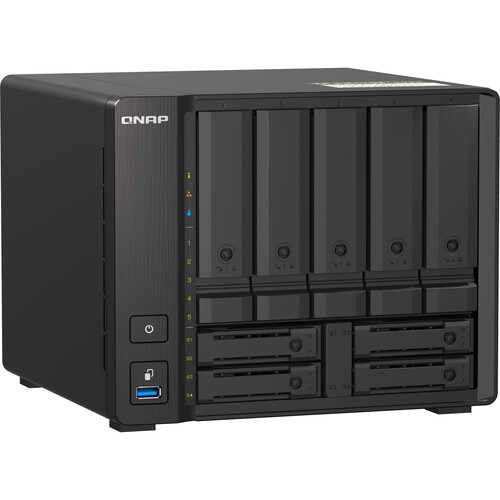

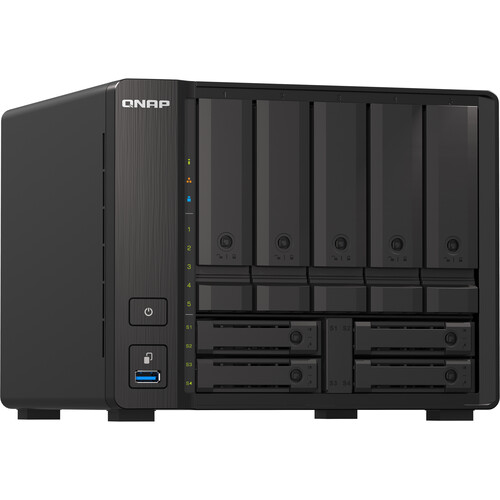

QNAP TS-h973AX-32G 9-Bay NAS Enclosure
QNAP · NAS & Storage

QNAP TS-h973AX-32G 9-Bay NAS Enclosure

Key Features5 x 3.

Quote on request
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
Key specifications
Form factor Tower
Full specifications ↓

Product details

Key Features

  • 5 x 3.5" and 2 x 2.5" SATA Drive Bays
  • 2 x U.2 NVMe PCIe / SATA 2.5" Drive Bays
  • 2.2 GHz AMD Ryzen V1500B Quad-Core
  • 32GB of DDR4 RAM
  • 1 x 10GbE and 2 x 2.5GbE Ports
  • USB 3.2 Gen 2 Type-C and Type-A Ports
  • RAID 0, 1, 5, 6, 10, 50, 60, and JBOD
  • AES 256-Bit Volume Encryption
  • QuTS Hero 4.5 Operating System


CPUAMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
System Memory32 GB SODIMM DDR4 (2 x 16 GB)
Maximum Memory64 GB (2 x 32 GB)
Memory Slot2 x SODIMM DDR4
Support optional ECC memory
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory5GB (Dual boot OS protection)
Drive Bay5 x 3.5-inch + 4 x 2.5-inch
The system is shipped without HDD/SSD.
For the HDD/SSD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch U.2 NVMe PCIe Gen3 x4 solid state drives (2.5-inch Bay #1 & #2)
* 2.5-inch bay #1 & #2 support either U.2 NVMe SSDs or SATA 6Gb/s SSDs.
** U.2 NVMe solid-state drives can only be installed in 2.5-inch bay numbers 1 and 2. Installing these drives in other bays will damage the drive connectors.
Hot-swappable
SSD Cache Acceleration Support

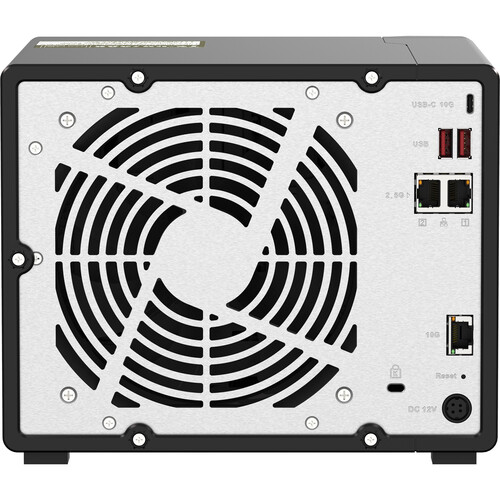

2.5 Gigabit Ethernet Port (2.5G/1G/100M)2 (2.5G/1G/100M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M)Optional via the QNA-UC5G1T USB to 5GbE network adapter
10 Gigabit Ethernet Port1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL)
Jumbo Frame
USB 3.2 Gen 2 (10Gbps) Port1 x Type-C USB 3.2 Gen 2
3 x Type-A USB 3.2 Gen 2
Form FactorTower
LED IndicatorsHDD 1-5, SSD 1-4, Power/Status, LAN, USB
ButtonsPower, Reset, USB Copy
Dimensions (HxWxD)176.5 × 224.6 × 224.1 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net)4.34 kg
Weight (Gross)5.08 kg
Operating Temperature0 - 40 °C (32°F - 104°F)
Storage Temperature-20 - 70°C (-4°F - 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply UnitExternal, 120 W, AC 100 to 240 V
Power Consumption: HDD Sleep Mode41.2 W
Power Consumption: Operating Mode, Typical55.41 W
Tested with drives fully populated.
Fan1 x 140mm, 12VDC
System Warning
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
  • Delivery & professional installation
  • Configuration & migration
  • Manufacturer warranty handling
  • Annual maintenance & managed services (MSP)
Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

Specifications

Compute Specs
Form factorTower
Compare similar

Related products

QNAP TS-h973AX 9-Bay NAS Enclosure
QNAP TS-h973AX 9-Bay NAS Enclosure
QNAP
Quote on request

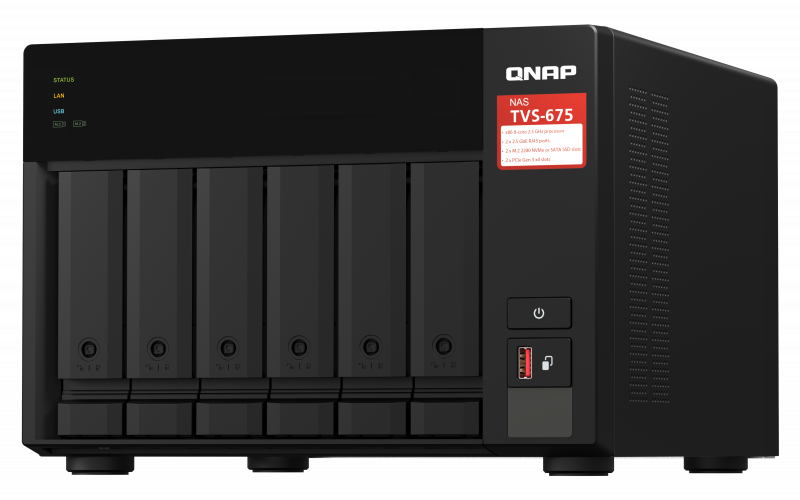

 QNAP TVS-675-8G Nas (6 Bay, ZhaoXin KX-U6580 8-core 2.5 GHz, 8GB DDR4 RAM, 64-Bit)
