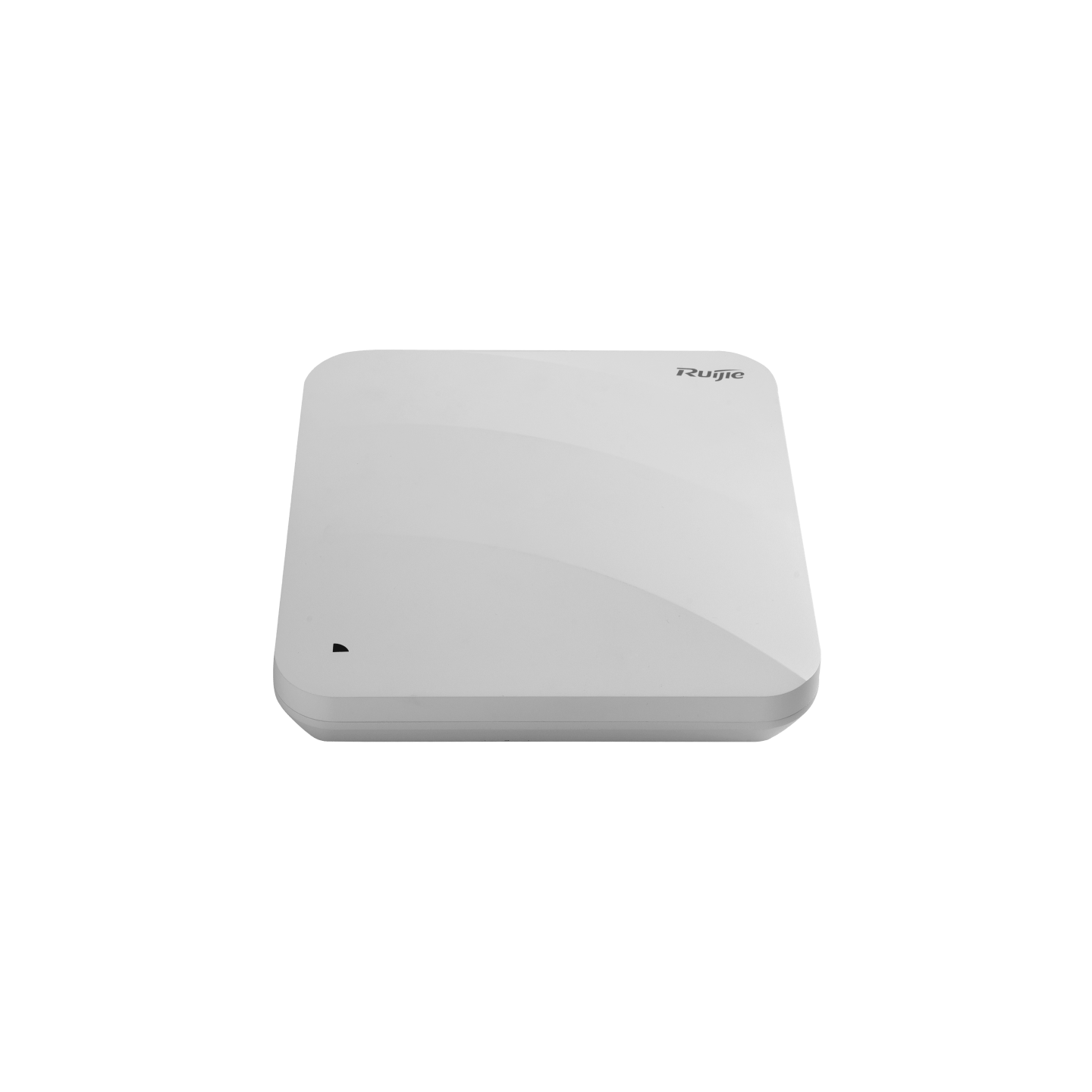

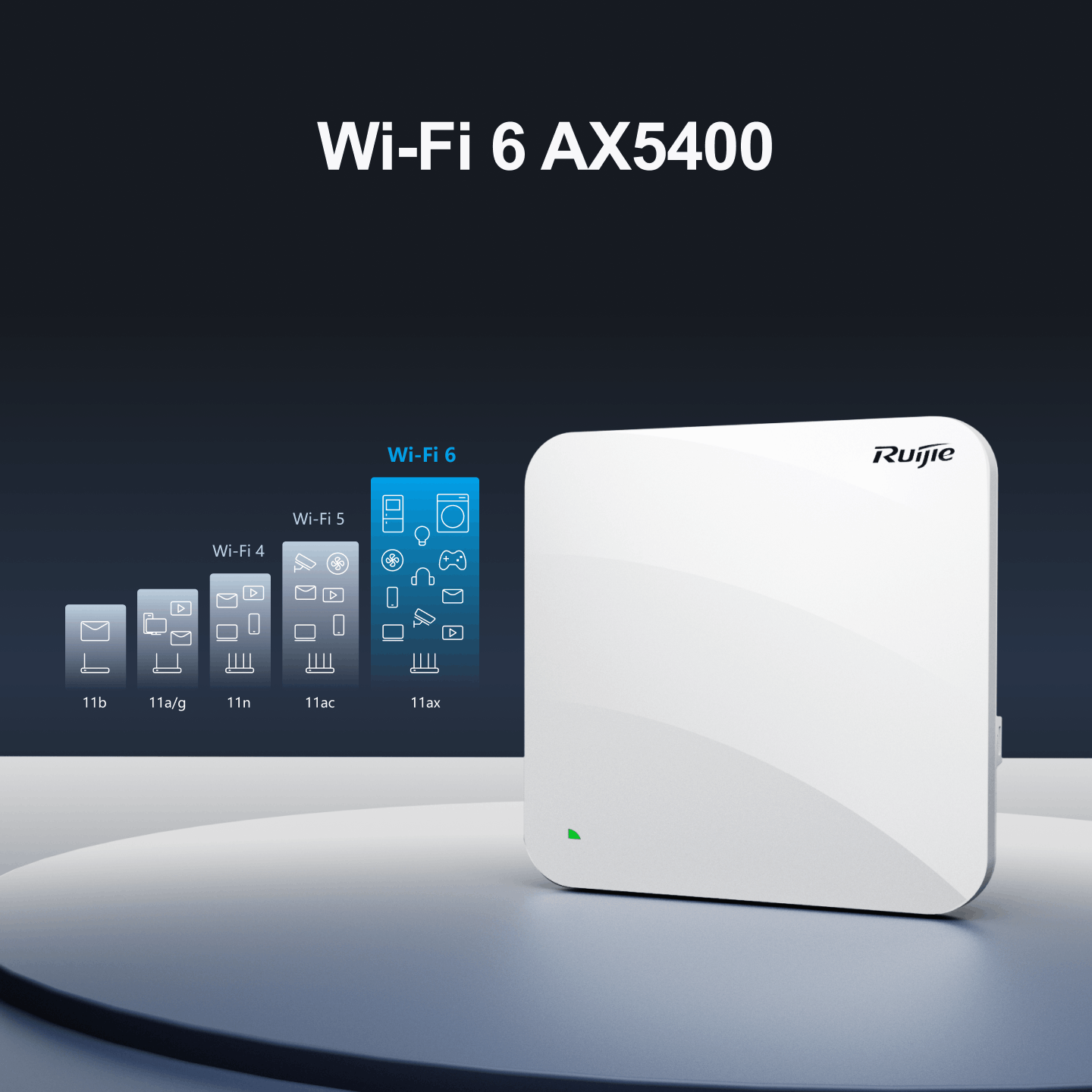

Ruijie Reyee RG-AP840-L Wi-Fi 6 Dual-Radio 5375 Mbps Indoor AP

Unit dimensions

(W x D x H)

230 mm x 230 mm x 51 mm (9.06 in x 9.06 in x 2.01 in)

Shipping dimensions

(W x D x H)

284 mm x 262 mm x 124 mm (11.18 in x 10.31 in x 4.88 in)

Unit weight

Main unit: 1.0 kg (2.20 lbs)

Mounting bracket: 0.1 kg (0.22 lbs)

Shipping weight

1.25 kg (2.76 lbs)

Mounting

Wall/Ceiling-mount (a mounting bracket is delivered with the main unit)

Lock option

Kensington lock and securing latch

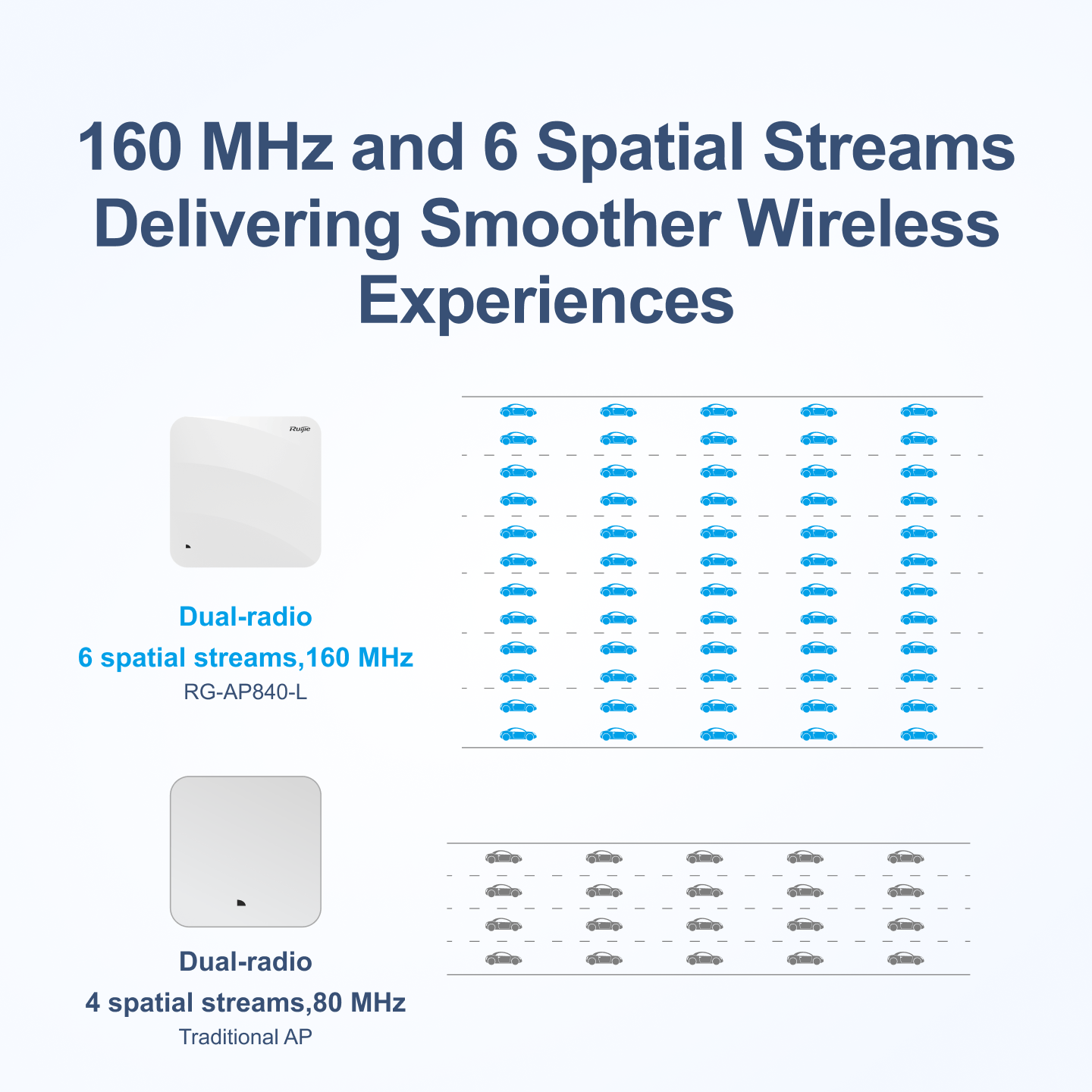

Radio design

Dual-radio and up to six spatial streams:

●    Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO

●    Radio 2: 5 GHz, four spatial streams, 4x4 MU-MIMO

Operating frequencies

802.11b/g/n/ax:

●    2.400 GHz to 2.4835 GHz, ISM

802.11a/n/ac/ax:

●    5.150 GHz to 5.250 GHz, U-NII-1

●    5.250 GHz to 5.350 GHz, U-NII-2A

●    5.470 GHz to 5.725 GHz, U-NII-2C

●    5.725 GHz to 5.850 GHz, U-NII-3/ISM

Note: Country-specific restrictions apply.

Data rates

Combined peak data rate: 5.375 Gbps

5 GHz radio:

●    Four spatial stream Single User (SU) MIMO for up to 4.8 Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (max.)

●    Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)

●    Four spatial stream Multi User (MU) MIMO for up to 4.8 Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max.)

●    Four spatial stream Multi User (MU) MIMO for up to 2.4 Gbps wireless data rate to up to four 1SS or two 2SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)

2.4 GHz radio:

●    Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to 2SS HE40 802.11ax client devices (max.)

●    Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to 2SS HE20 802.11ax client devices (typical)

Data rate set

The following 802.11-compliant data rates in Mbps are supported:

2.4 GHz radio

●    802.11b: 1, 2, 5.5, 11

●    802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54

●    802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

●    802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

5 GHz radio

●    802.11a: 6, 9, 12, 18, 24, 36, 48, 54

●    802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40)

●    802.11ac: 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160)

●    802.11ax: 8.6 to 4,803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)

Packet aggregation

802.11n/ac/ax: A-MPDU and A-MSDU

Antenna type

Built-in omnidirectional antennas (two 2.4 GHz antennas and four 5 GHz antennas)

Max. antenna gain

5.9 dBi in 2.4 GHz and 6.2 dBi in 5 GHz

The downtilt angle for the maximum gain is roughly 35 degrees.

With reference to the pattern of each antenna of the MIMO radios, the maximum gain of the effective per-antenna pattern is 3.8 dBi in 2.4 GHz and 4.6 dBi in 5 GHz.

Max. transmit power

2.4 GHz radio: 27 dBm (24 dBm per chain)

5 GHz radio: 30 dBm (24 dBm per chain)

Note: The transmit power is limited by local regulatory requirements.

Power increment

Configurable in increments of 1 dBm

Radio technologies

802.11b: Direct-Sequence Spread-Spectrum (DSSS)

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)

802.11ax: OFDMA with up to 16 resource units (for an 80 MHz channel)

Modulation types

802.11b: BPSK, QPSK, and CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, and 64-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM

2.4 GHz, 802.11b

1 Mbps

24 dBm

–96 dBm

2 Mbps

24 dBm

–95 dBm

5.5 Mbps

23 dBm

–93 dBm

11 Mbps

22 dBm

–89 dBm

2.4 GHz, 802.11g

6 Mbps

24 dBm

–91 dBm

24 Mbps

23 dBm

–85 dBm

36 Mbps

23 dBm

–80 dBm

54 Mbps

21 dBm

–74 dBm

2.4 GHz, 802.11n (HT20)

MCS0

24 dBm

–90 dBm

MCS7

20 dBm

–70 dBm

2.4 GHz, 802.11n (HT40)

MCS0

24 dBm

–90 dBm

MCS7

20 dBm

–70 dBm

2.4 GHz, 802.11ax (HE20)

MCS0

24 dBm

–90 dBm

MCS11

16 dBm

–62 dBm

2.4 GHz, 802.11ax (HE40)

MCS0

24 dBm

–88 dBm

MCS11

16 dBm

–60 dBm

5 GHz, 802.11a

6 Mbps

24 dBm

–91 dBm

24 Mbps

23 dBm

–85 dBm

36 Mbps

23 dBm

–80 dBm

54 Mbps

21 dBm

–74 dBm

5 GHz, 802.11n (HT20)

MCS0

24 dBm

–90 dBm

MCS7

20 dBm

–68 dBm
