Product details

Feature Highlights:

Ruijie EasyGate (EG) Next-generation Unified Security Gateway is a multi-functional Cloud Managed Security Gateway product for various industries. Equipped with high-performance multi-core MIPS hardware architecture, the EG Gateway supports a wide range of features such as high-performance NAT, WAN load balancing, smart flow control, online behavior management, visualized IPsec VPN , web authentication, etc.

Taking advantage of integrated Hard Disk Drive  (HDD), the EG Security Gateway can provide local storage for Internet activities logging, which is essential for National Internet Security Compliance in many countries.

Ruijie EG Next-generation Unified Security Gateway is also supported by Ruijie Cloud, altogether with switches and wireless access points, Ruijie Cloud can provide a comprehensive secure networking platform for centralized management allowing for device monitoring, configuration as well as firmware management.



For ease of provisioning, Ruijie provide an innovative Mobile App Dummy Provisioning  for SME customers. In less than 3-min, user can complete the Gateway initial setup with Internet connectivity, without any PC setup or cable installation.



There are three models available for Security Gateway, RG-EG3250, RG-EG3230 & RG-EG2100-P v2.



Feature highlights of Ruijie EG Next-generation Security Gateway Series:



• Smart Flow Control & AAA Integration
• User Online Behavior Management
• VPN & Traffic Visualization
• FREE Cloud Management
• App Caching for Download Acceleration
• Built-in Internet Audit Log Storage (EG3230)

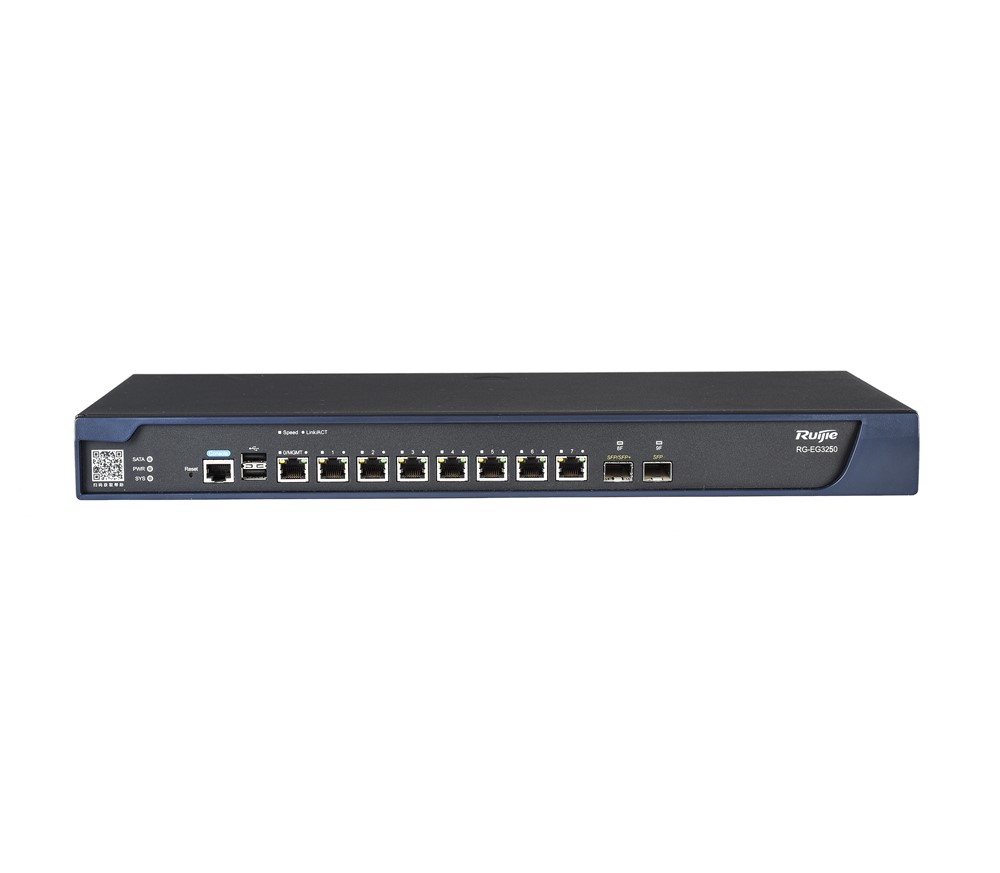

Model	RG-EG3230
Hardware Specification
CPU	Multi-core MIPS
Fixed Ports	8 1000BASE-T ports 1 SFP port 1 SFP+ port (non-combo)
WAN Ports	Upto 6
Flash	8M SPIFLASH
Hard Disk	Standard 1TB
Memory	2G
Performance & Feature
Performance	4000Mbps (1518 bytes)
	2610Mbps (512bytes)
	622Mbps (64 bytes)
Concurrent Session	300,000
Recommended Concurrent User	1000
Portal Authentication Capacity	1000 (Max Concurrent Users)
Portal Authentication Type	Username/Password Auth (Local, Windows-based AD/LDAP Integration) One-click Authentication; Guest Voucher (Ruijie Cloud required);
Seamless Authentication (Portal)	Support
App Caching	Support
Cache Resources	Windows System Patches
Network Protocol	Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc. Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF Support DHCP Relay and DHCP Server Support PPPoE Client Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc. Support ARP, trusted ARP, proxy ARP, etc. Support Ping and Traceroute fault detection
Application Visibility	Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification:   P2P: BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc.   Multimedia: YouTube, Facebook Video, WebEx Conference & etc.   Social Media: Facebook, Twitter, LinkedIn, Pinterest & etc.   VOIP/Chat: Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc.   Instant Messaging/Email: Gmail, MSN, QQ, YAHOO & etc.   Software Update: Window, McAfee, Kaspersky, ESET & etc.   Cloud-based File Collaboration: GoogleDrive, Dropbox, OneDrive, iCloud & etc.   Enterprise Application：HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc.
URL Filtering	Support HTTP/HTTPS domain filtering Support remote HTTP automatic URL library upgrade Local log storage (NAT log, traffic log, URL log, etc.) Support storage on external log server
WAN Load Balancing	Support (upto 6 WAN Port)
High Availability	VRRP RIP (Graceful Restart) OSPF (Graceful Restart)
IPsec VPN Tunnel	600
Network Security	Anti-ARP Spoofing Defense against malicious attacks from internal and external networks Support secure address binding Block WAN Ping Prevent Port Scan Attack Prevent Fragmentation Attack Prevent ICMP Flood Attack Prevent Teardrop Attack Prevent Ping of Death Attack Prevent Land Attack Prevent Smurf / Fraggle attack Prevent SYN Flood Attack
Layer 2 Features	Support Bridging Support LAN Port Aggregation
Ruijie Cloud Integration Feature	Support device health monitoring status Support centralized configuration change management & backup Support Top 10 Application/User traffic visualization Support device firmware management Support event-based alarm notification
Other Features	Integrate with AAA software to support multiple authentication modes
Other Features Service and Support	Support push advertising page
	Support multi-link load balancing
	Support remote HTTP online upgrade for signature library, software version, etc.
	Lifetime Free signature library upgrade
Rack Height	1U
Weight	4kg
Power Supply	100-240V~,50-60Hz,0.65A
Power Consumption	<25W
Dimensions (W x D x H) (mm)	440×200×43.6
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90%RH
