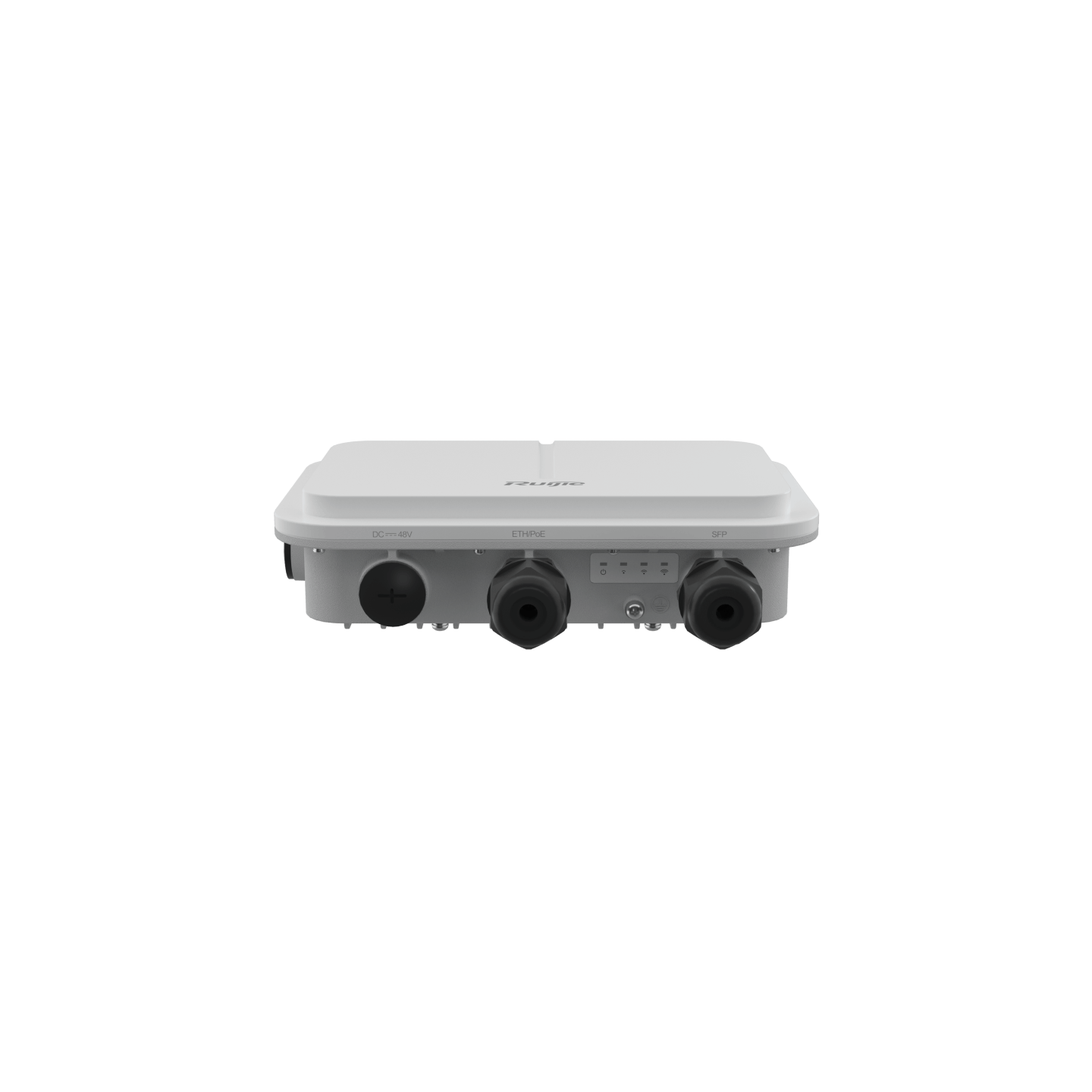

Ruijie RG-AP680-L Wi-Fi 6 Dual-Radio 2975 Mbps Outdoor AP

Unit dimensions

(W x D x H)

251 mm x 168 mm x 64 mm (9.88 in x 6.61 in x 2.52 in)

Shipping dimensions

(W x D x H)

405 mm x 232 mm x 325 mm (15.94 in x 9.13 in x 12.79 in)

Unit weight

Main unit: 1.0 kg (2.20 lbs)

Mounting bracket: 0.9 kg (1.98 lbs)

Shipping weight

3.15 kg (6.94 lbs)

Mounting

Ceiling/Pole-mount (a mounting bracket is delivered with the main unit)

Radio design

Dual-radio and four spatial streams:

●    Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO

●    Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO

Operating frequencies

Radio 1: 802.11b/g/n/ax

●    2.400 GHz to 2.483 GHz, channels 1 to 13

Radio 2: 802.11a/n/ac/ax

●    5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48

●    5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64

●    5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140

●    5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165

Note: Country-specific restrictions apply.

Data rates

Combined peak data rate: 2.975 Gbps

Radio 1: 2.4 GHz, 574 Mbps

●    Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (max.)

●    Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical)

Radio 2: 5 GHz, 2.4 Gbps

●    Two spatial stream Single User (SU) MIMO for up to 2.4 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (max)

●    Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)

●    Two spatial stream Multi-User (MU) MIMO for up to 2.4 Gbps wireless data rate to up to two 1SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max)

●    Two spatial stream Multi-User (MU) MIMO for up to 1.2 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)

Data rate set

The following 802.11-compliant data rates in Mbps are supported:

2.4 GHz radio

●    802.11b: 1, 2, 5.5, 11

●    802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54

●    802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

●    802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2,VHT20 to VHT40)

●    802.11ax: 8.6 to 575 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

5 GHz radio

●    802.11a: 6, 9, 12, 18, 24, 36, 48, 54

●    802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

●    802.11ac: 6.5 to 1732 (MCS0 to MCS9, NSS = 1 to 2,VHT20 to VHT160)

●    802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)

Packet aggregation

802.11n/ac/ax : A-MPDU and A-MSDU

Antenna type

Built-in omnidirectional antenna (two 2.4 GHz antennas and two 5 GHz antennas)

Max. antenna gain

2.4 GHz radio: 4 dBi

5 GHz radio: 6 dBi

Max. transmit power

2.4 GHz radio: 28 dBm (25 dBm per chain)

5 GHz radio: 28 dBm (25 dBm per chain)

Note: The transmit power is limited by local regulatory requirements.

Power increment

Configurable in increments of 1 dBm

Radio technologies

802.11b: Direct-Sequence Spread-Spectrum (DSSS)

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)

Modulation types

802.11b: BPSK, QPSK, CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

2.4 GHz 802.11b

1 Mbps

25 dBm

-92 dBm

2 Mbps

25 dBm

-82 dBm

5.5 Mbps

25 dBm

-84 dBm

11 Mbps

25 dBm

-78 dBm

2.4 GHz 802.11g

6 Mbps

25 dBm

-84 dBm

24 Mbps

23 dBm

-74 dBm

36 Mbps

23 dBm

-72 dBm

54 Mbps

20 dBm

-67 dBm

2.4 GHz 802.11n (HT20)

MCS0

25 dBm

-84 dBm

MCS7

20 dBm

-66 dBm

2.4 GHz 802.11n (HT40)

MCS0

25 dBm

-79 dBm

MCS7

20 dBm

-63 dBm

2.4 GHz 802.11ax (HE20)

MCS0

25 dBm

-84 dBm

MCS11

18 dBm

-54 dBm

2.4 GHz 802.11ax (HE40)

MCS0

25 dBm

-80 dBm

MCS11

18 dBm

-51 dBm

5 GHz 802.11a

6 Mbps

25 dBm

-84 dBm

24 Mbps

23 dBm

-74 dBm

36 Mbps

23 dBm

-72 dBm

54 Mbps

20 dBm

-67 dBm

5 GHz 802.11n (HT20)

MCS0

25 dBm

-84 dBm

MCS7

20 dBm

-66 dBm

5 GHz 802.11n (HT40)

MCS0

25 dBm
