Ruijie · Switches

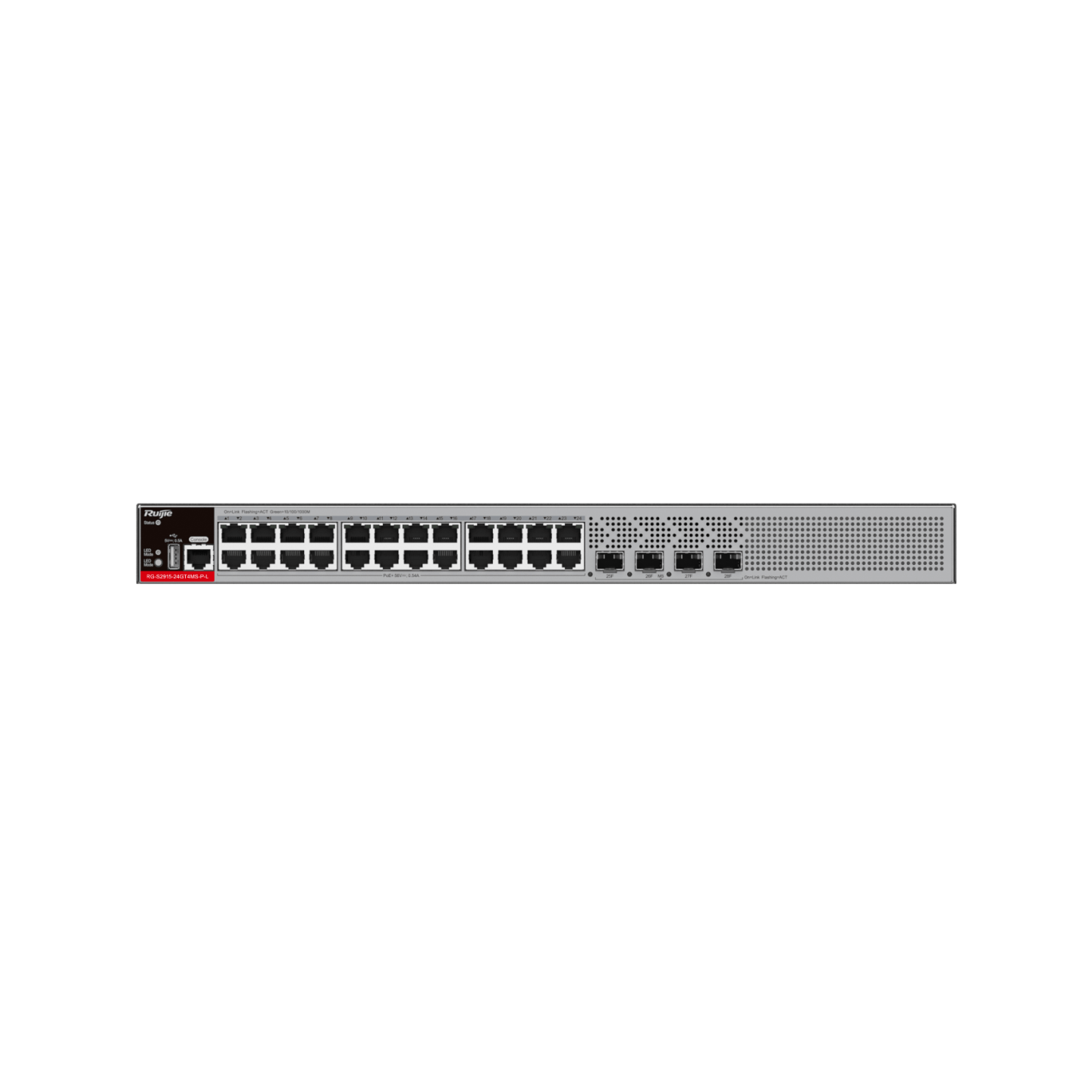

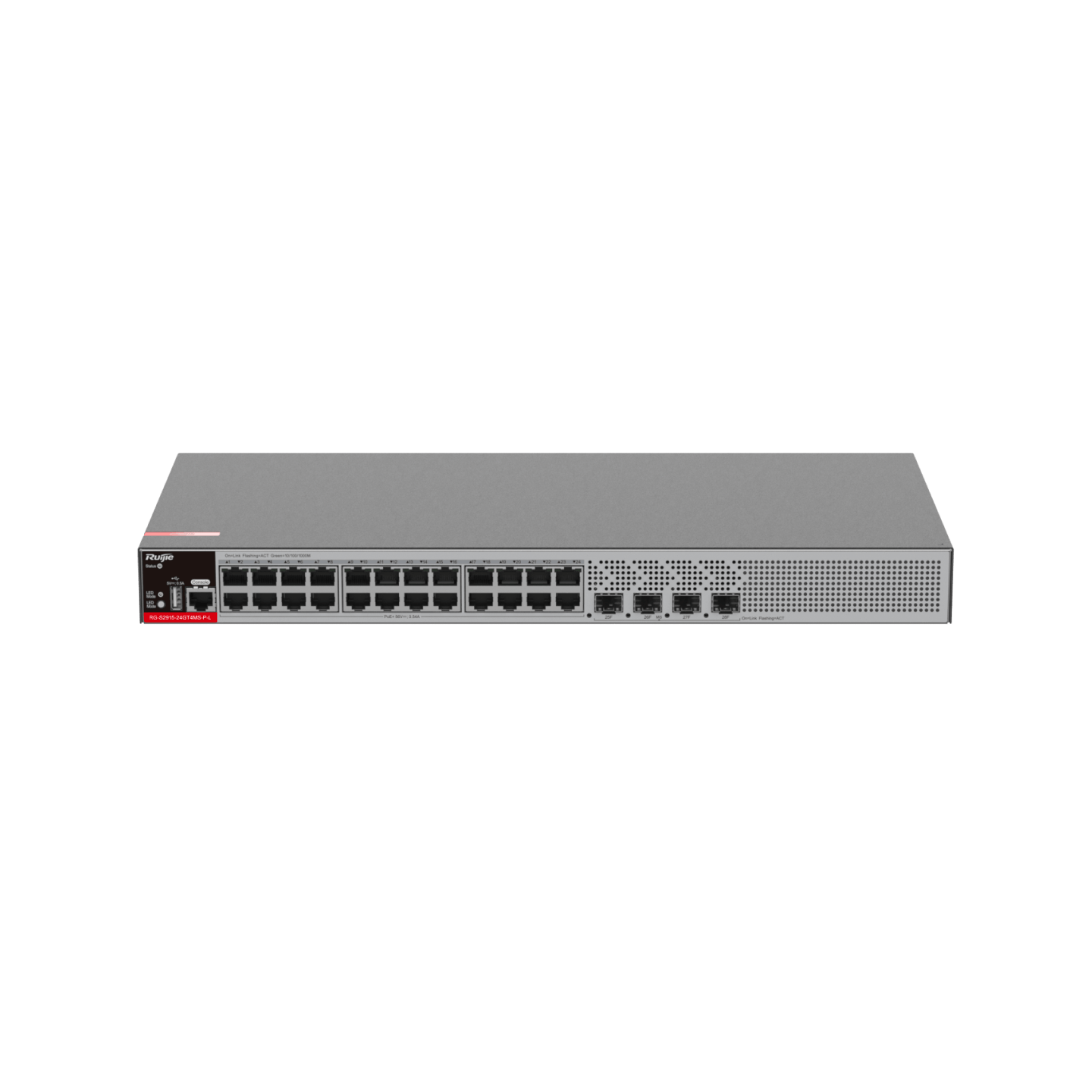

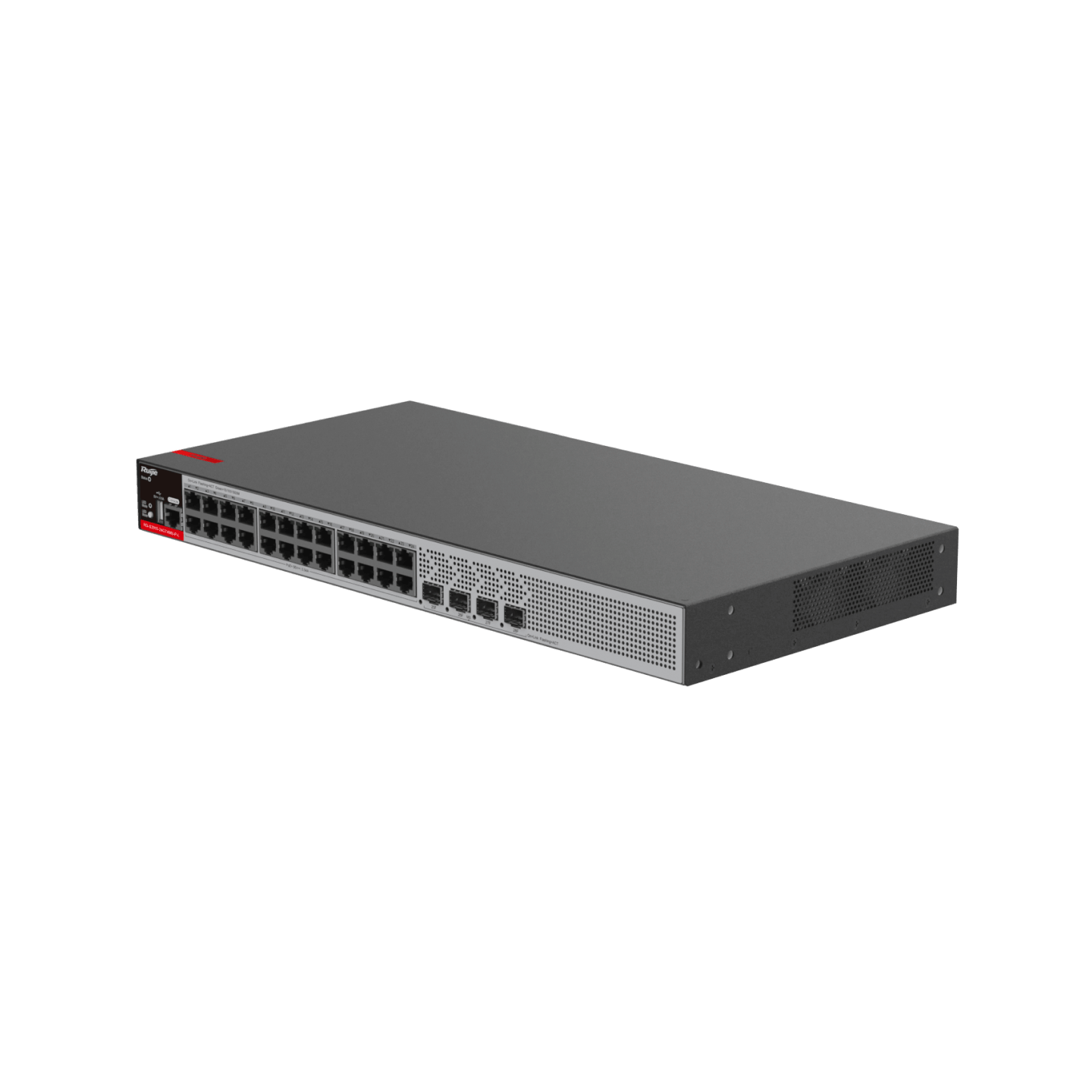

RUIJIE RG-S2915-24GT4MS-P-L，24-Port Gigabit Layer 2+ Managed PoE+ Switch with Four 2.5GE Uplink SFP Ports
Highlight Features2.
Quote on request
✓ Available to order · supplied & installed in Malaysia
Product details
- 2.5G uplink, breaking the Gigabit bottleneck, supporting access for more types of devices, and cooperating with the S6120 switch for 10G networking
- Unique CPU protection policy, ensuring stability of the switch and nonstop services
- RLDP used to provide smooth network connections
- 10 kV surge protection for ports and high reliability
- Compliance with standard protocols and application in various scenarios
- Ease of use through Ruijie Cloud for management and remote O&M
Key Specification
Service port
24 x 10/100/1000BASE-T Ethernet ports with auto-negotiation, 4 x 2.5G/1G SFP ports
Switching capacity
68 Gbps
Capacity of MAC address table
16000
Fan module
2 x fan module
Input power
Rated input voltage range: 100V AC to 240V AC, 50/60Hz
Max. input voltage range：90V AC to 264V AC, 50/60Hz
Max. input voltage range：90V AC to 264V AC, 50/60Hz
Surge protection
10 kV
Temperature
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
Management port
1 x RJ45 console port
Forwarding rate
51 Mpps
Power module
1 x fixed power module
Cooling mode
Fan cooling
Power consumption
403W (PoE budget: 370W)
Dimensions (W x D x H)
440 mm × 292 mm × 43.6 mm (17.32 in. x 11.50 in. × 1.72 in.)
Warranty
3 years
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
