Synology · NAS & Storage

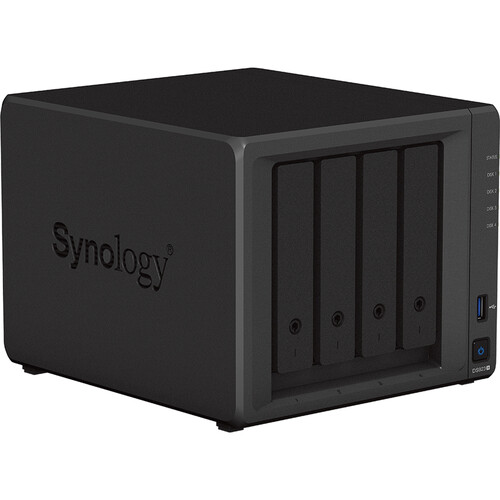

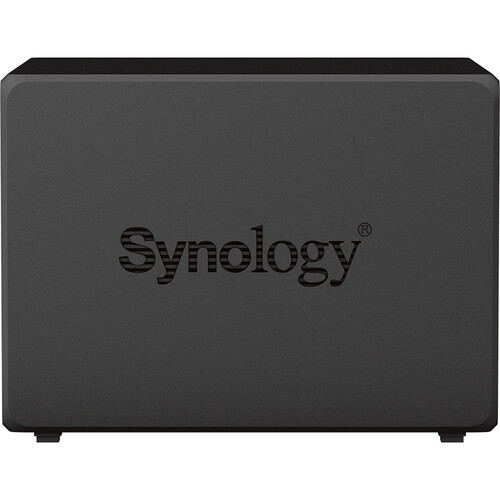

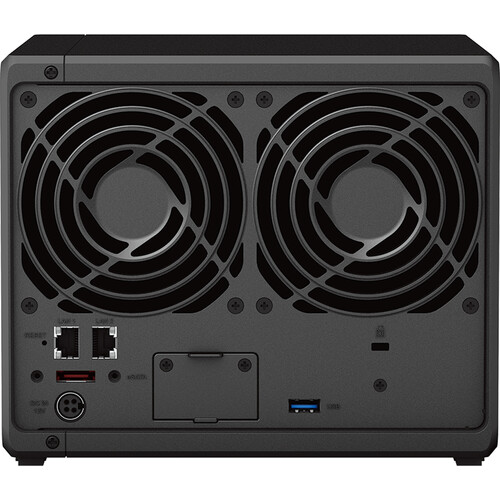

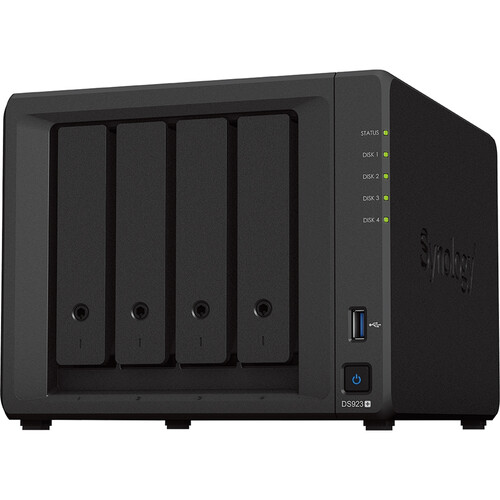

Synology DiskStation DS923+ 4-Bay NAS Server

Name: Synology DiskStation DS923+ 4-Bay NAS Server
Brand: Synology
SKU: PRD-202607-4427

Buy Synology DiskStation DS923+ 4-Bay NAS Server, Synology from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Service

Quote on request

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Key specifications
Form factor	Tower

Full specifications ↓

Product details

Key Features 4 x 3.5/2.5" Bays \| 2 x M.2 2280 Slots 2.6 GHz AMD Ryzen R1600 Dual-Core 4GB of DDR4 RAM 2 x Gigabit Ethernet Ports 2 x USB-A 3.2 Gen 1 \| 1 x eSATA RAID 0, 1, 5, 6, 10, Hybrid, Basic, JBOD Sequential Reads up to 625 MB/s Sequential Writes up to 559 MB/s AES-NI Hardware Encryption Engine Synology DiskStation Manager OS
CPU
CPU Model	AMD Ryzen R1600
CPU Quantity	1
CPU Architecture	64-bit
CPU Frequency	2-core 2.6 (base) / 3.1 (turbo) GHz
Hardware Encryption Engine (AES-NI)	✓
Memory
System Memory	4 GB DDR4 ECC
Memory Module Pre-installed	4 GB (4 GB x 1)
Total Memory Slots	2
Maximum Memory Capacity	32 GB (16 GB x 2)
Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
Drive Bays	4
Maximum Drive Bays with Expansion Unit	9 (DX517 x 1)
M.2 Drive Slots	2 (NVMe)
Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD
Hot Swappable Drive*	✓
Notes	The hot swappable drive feature is not supported by M.2 SSD slots. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
RJ-45 1GbE LAN Port*	2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port*	2
eSATA Port	1
Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe Expansion	1 x Gen3 x2 network upgrade slot
File System
Internal Drives	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance
Size (Height x Width x Depth)	166 mm x 199 mm x 223 mm
Weight	2.24 kg
Others
System Fan	92 mm x 92 mm x 2 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Brightness Adjustable Front LED Indicators	✓
Power Recovery	✓
Noise Level*	22.9 dB(A)
Scheduled Power On / Off	✓
Wake on LAN / WAN	✓
Power Supply Unit / Adapter	100 W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	35.51 W (Access) 11.52 W (HDD Hibernation)
British Thermal Unit	121.09 BTU/hr (Access) 39.28 BTU/hr (HDD Hibernation)
Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification
FCC CE BSMI VCCI RCM UKCA EAC CCC KC
Warranty
3-year hardware warranty, extendable to 5 years with EW201
Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
RoHS Compliant
Packaging Content
Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories
DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G Expansion Units: DX517 3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5210 M.2 2280 NVMe SSD: SNV3410 10GbE Network Upgrade Module: E10G22-T1-Mini VisualStation: VS360HD Surveillance Device License Pack
