Synology · NAS & Storage

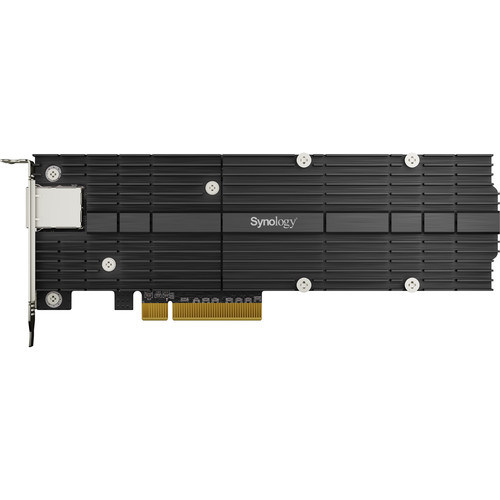

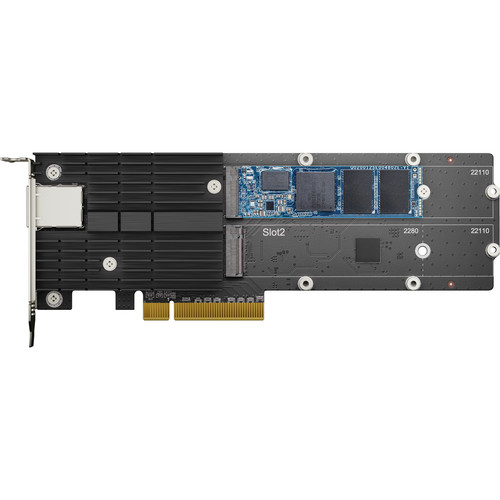

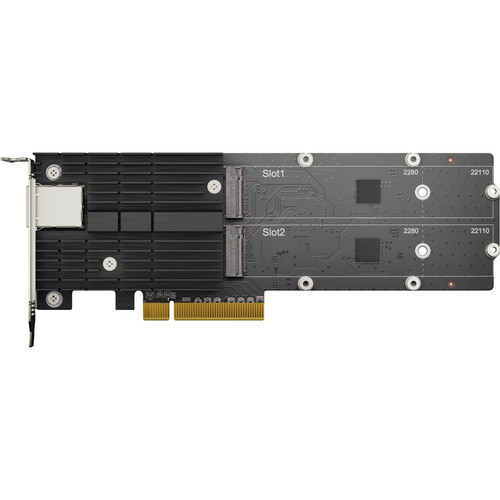

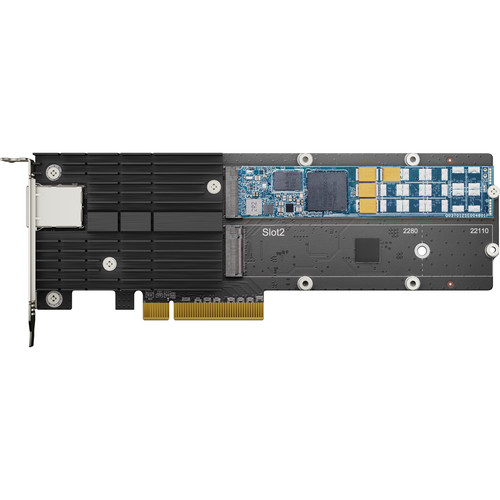

Synology E10M20-T1 M.2 SSD & 10GbE Combo Adapter Card
Synology E10M20-T1 M.2 SSD & 10GbE Combo Adapter Card - Key FeaturesFor Select Synology NAS UnitsCreate an SSD Cache via PCIeDual M.
Quote on request
✓ Available to order · supplied & installed in Malaysia
Product details
Key Features
- For Select Synology NAS Units
- Create an SSD Cache via PCIe
- Dual M.2 2280/22110 Slots
- 10Gb Ethernet Port
- PCIe 3.0 x8 Host Bus Interface
- Low Profile and Full Height Form Factor
General | ||
|---|---|---|
| Host Bus Interface | PCIe 3.0 x8 | |
| Bracket Height | Low Profile and Full Height | |
| Size (Height x Width x Depth) | 71.75 mm x 200.05 mm x 17.70 mm | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Warranty | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Storage | ||
| Storage Interface | PCIe NVMe | |
| Supported Form Factor | 22110 / 2280 | |
| Connector Type and Quantity | M-key, 2 Slots | |
Network | ||
| IEEE Specification Compliance |
| |
| Data Transfer Rates | 10 Gbps | |
| Network Operation Mode | Full Duplex | |
| Supported Features |
| |
Compatibility | ||
Applied Models | ||
| NVMe SSD |
| |
| Notes |
| |
