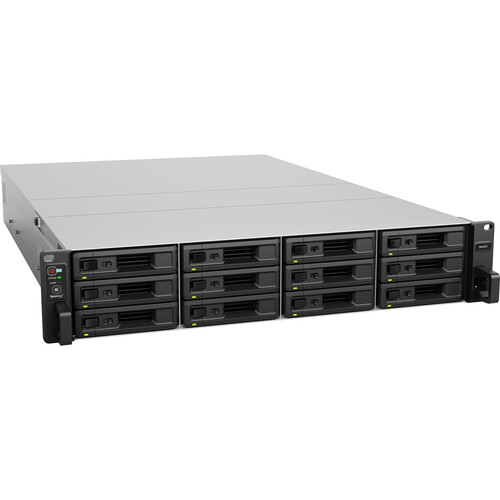

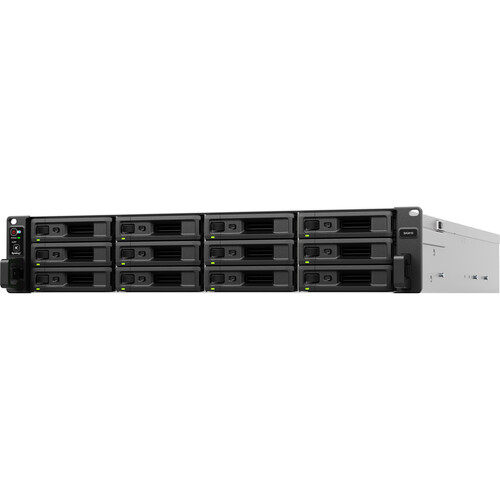

Synology SA3610 12-Bay NAS Enclosure

CPU Model

SA3610: Intel Xeon D-1567

CPU Quantity

SA3610: 1

CPU Architecture

SA3610: 64-bit

CPU Frequency

SA3610: 12-core 2.1 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)

SA3610: Yes

System Memory

SA3610: 16 GB DDR4 ECC RDIMM

Memory Module Pre-installed

SA3610: 16 GB (16 GB x 1)

Total Memory Slots

SA3610: 4

Maximum Memory Capacity

SA3610: 128 GB (32 GB x 4)

Notes

SA3610:

• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
• Installing memory modules with differing capacities is not recommended. Check the Hardware Installation Guide of your Synology product for recommended memory configurations.

Drive Bays

SA3610: 12

Maximum Drive Bays with Expansion Unit

SA3610: 96 (RX1222sas x 7)

Compatible Drive Type* (See all supported drives)

SA3610:

• 3.5" SAS HDD
• 2.5" SAS SSD
• 3.5" SATA HDD
• 2.5" SATA SSD

Hot Swappable Drive*

SA3610: Yes

Notes

SA3610:

• It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
• "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

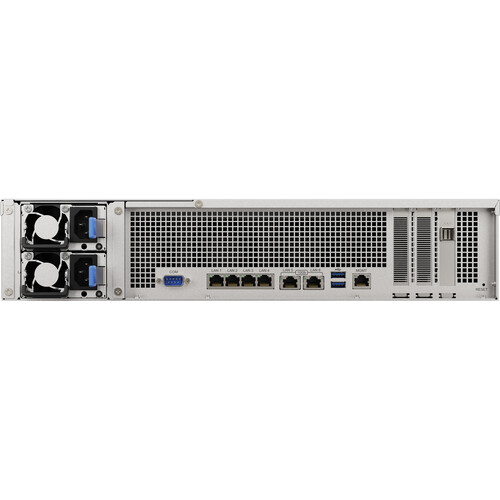

RJ-45 1GbE LAN Port

SA3610: 4 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port

SA3610: 2 (with Link Aggregation / Failover support)

Out-of-Band Management LAN Port

SA3610: 1

Max. number of LAN ports

SA3610: 15

USB 3.2 Gen 1 Port*

SA3610: 2

Expansion Port

SA3610: 1

Notes

SA3610:

• This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
• The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe Expansion

SA3610: 2 x Gen3 x8 slots (x8 link)

Internal Drives

SA3610:

• Btrfs
• EXT4

External Drives

SA3610:

• Btrfs
• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT

Form Factor (RU)

SA3610: 2U

Size (Height x Width x Depth)

SA3610: 88 mm x 482 mm x 724 mm

Weight

SA3610: 14.5 kg

Rack Installation Support*

SA3610: 4-post 19" rack (Synology Rail Kit - RKS-02)

Notes

SA3610: The rail kit is sold separately

System Fan

SA3610: 80 mm x 80 mm x 4 pcs

Fan Speed Mode

SA3610:

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Easy Replacement System Fan

SA3610: Yes

Power Recovery

SA3610: Yes

Noise Level*

SA3610: 49.8 dB(A)

Scheduled Power On / Off

SA3610: Yes

Wake on LAN / WAN

SA3610: Yes

Power Supply Unit / Adapter

SA3610: 550 W

Redundant Power Supply

SA3610: Yes

AC Input Power Voltage

SA3610: 100V to 240V AC

Power Frequency

SA3610: 50/60 Hz, Single Phase

Power Consumption

SA3610: 137.54 W (Access)
58.23 W (HDD Hibernation)

British Thermal Unit

SA3610: 469.30 BTU/hr (Access)
198.68 BTU/hr (HDD Hibernation)

Notes

SA3610:

• For more information on how power consumption is measured, refer to this article.
• Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Operating Temperature

SA3610: 0°C to 35°C (32°F to 95°F)

Storage Temperature

SA3610: -20°C to 60°C (-5°F to 140°F)

Relative Humidity

SA3610: 5% to 95% RH

SA3610:

• FCC
• CE
• BSMI
• VCCI
• RCM
• UKCA
• EAC
• CCC
• KC
• UL

SA3610: 5 Years

Notes

SA3610: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

SA3610: RoHS Compliant

SA3610:

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 2
• Quick Installation Guide X 1
