TP-Link · Switches

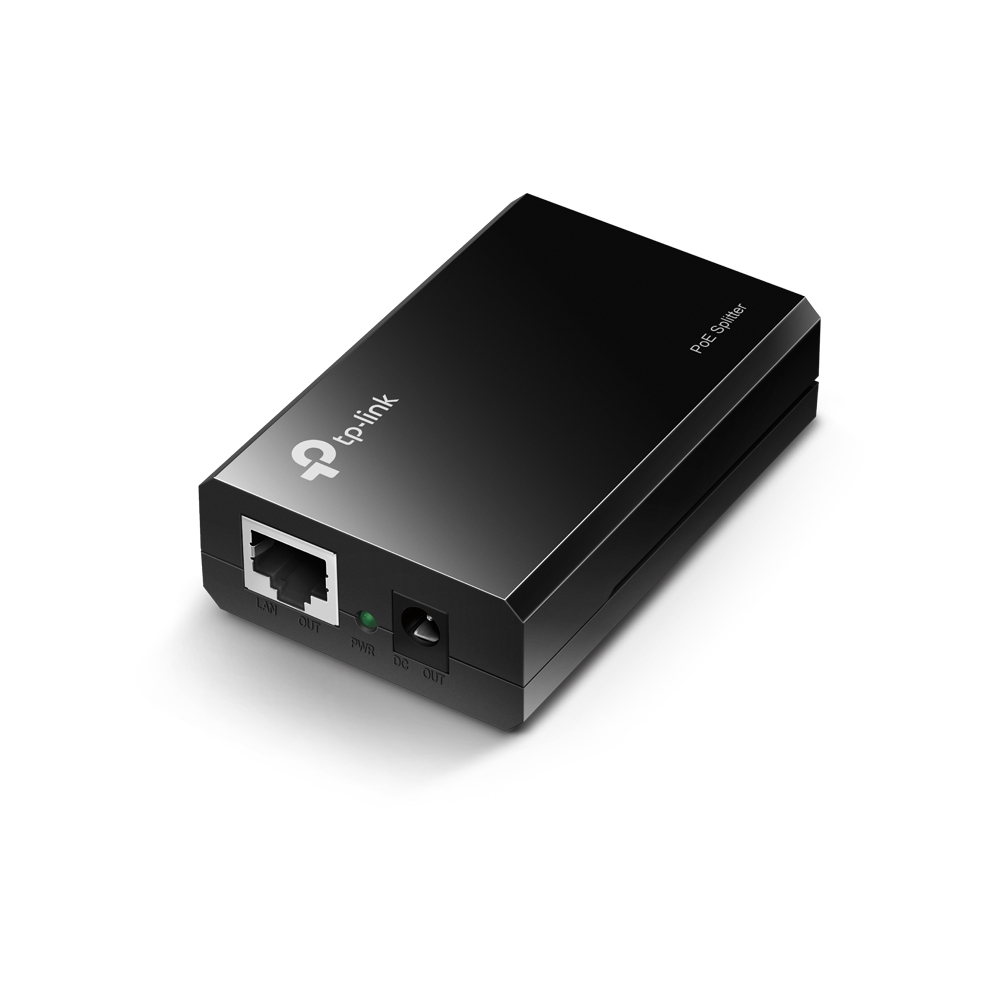

TP-Link TL-POE10R PoE Splitter

Name: TP-Link TL-POE10R PoE Splitter
Brand: TP-Link
SKU: PRD-202607-4489

Buy TP-Link TL-POE10R PoE Splitter, TP-Link from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Service

Quote on request

✓ Available to order · supplied & installed in Malaysia

Product details

PoE Splitter Adapter

PORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port

SPEC: 802.3af Compliant, Data and Power Carried over The Same Cable Up to 100 Meters, 12V/9V/5V Power Output, Plastic Case, Pocket Size

HARDWARE FEATURES

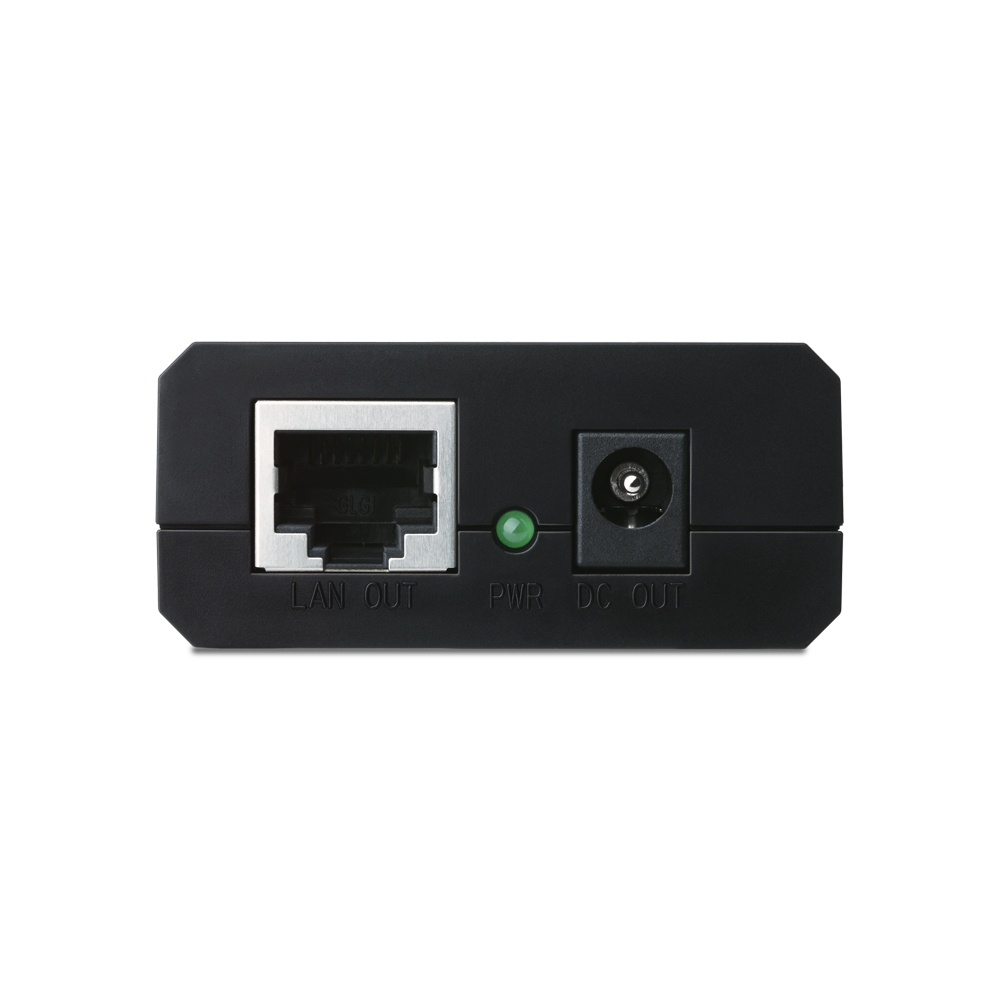

Interface	2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 POWER OUTPUT PORT
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply	12VDC 1A, 9VDC 1A, 5VDC 2A
Basic Function	Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Output
LED Indicator	PWR
Dimensions ( W x D x H )	3.22.10.9 in.(80.85424 mm)

SOFTWARE FEATURES
Basic Function	Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Supply

OTHERS
Certification	FCC, CE, RoHS

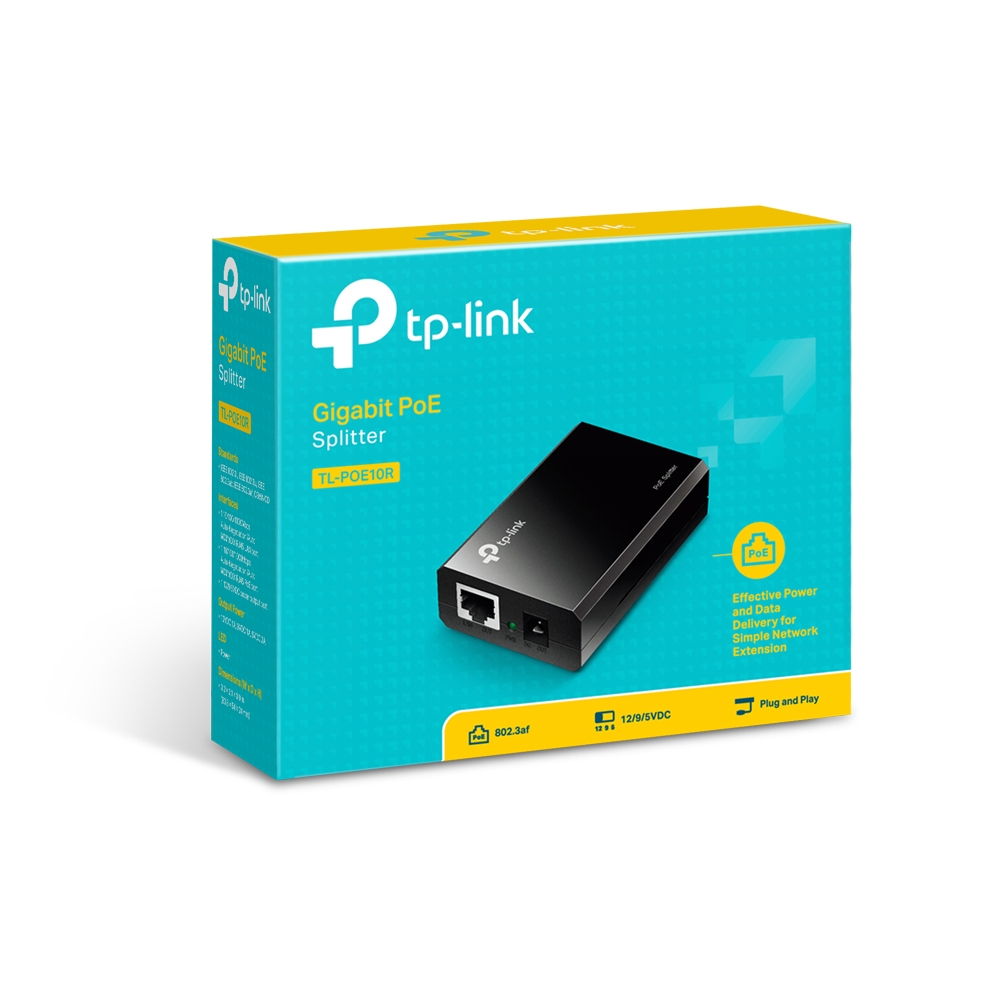

Package Contents	PoE Splitter TL-POE10R Power Cord RJ45 Cable Installation Guide
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
