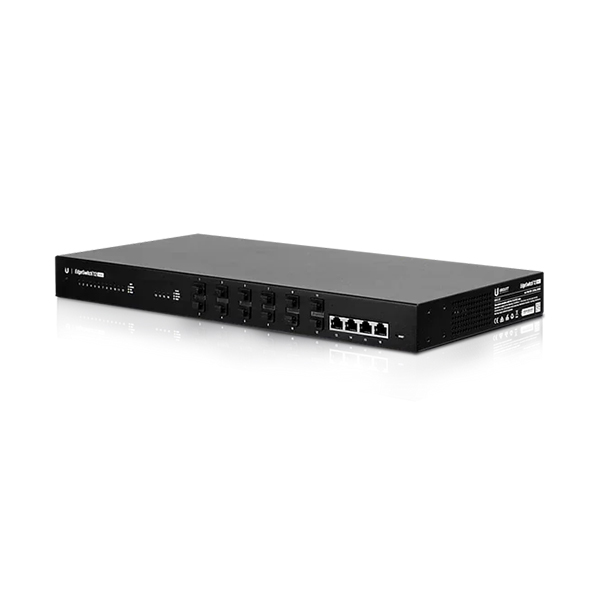

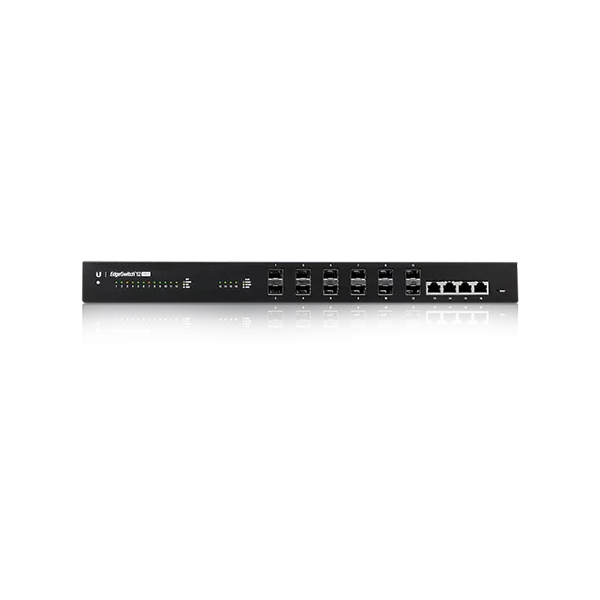

Ubiquiti Networks EdgeSwitch 12 Fiber 12-Port Gigabit Managed Network Switch
Ubiquiti Networks EdgeSwitch 12 Fiber 12-Port Gigabit Managed Network Switch -
Product details
Advanced Switching Technology for the Masses Build and expand your network with Ubiquiti EdgeSwitch® Fiber, part of the EdgeMAX® line of products. The EdgeSwitch Fiber is a fully managed, Gigabit fiber switch, delivering robust performance and intelligent switching for high‑bandwidth networks. The EdgeSwitch Fiber offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
- (12) Gigabit SFP Ports
- (4) Gigabit RJ45 Ports
- (1) Serial Console Port
- Non-Blocking Throughput: 16 Gbps
- Switching Capacity: 32 Gbps
- Forwarding Rate: 23.81 Mpps
- Maximum AC Power Consumption: 56W
- Rackmountable with Rack-Mount Brackets (Included)
- DC Input Option (Redundant or Stand-Alone)
Features:
| EdgeSwitch 12F | |
|---|---|
| Dimensions | 443 x 221 x 43 mm (17.44 x 8.70 x 1.69") |
| Weight Rack-Mount Brackets Included Rack-Mount Brackets Excluded | 2.68 kg (5.91 lb) 2.59 kg (5.71 lb) |
| Total Non-Blocking Line Rate | 16 Gbps |
| Max. AC Power Consumption | 56W |
| Power Method AC DC | 100-240VAC/50-60 Hz, Universal Input DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector |
| Power Supply | AC/DC, Internal, 56W DC |
| Supported Voltage Range | 100 to 240VAC 25 to 16VDC |
| LEDs Per Data Port | Speed/Link/Activity |
| Networking Interfaces | (8) 100/1000 Mbps SFP Ethernet Ports (4) 1000 Mbps SFP Ethernet Ports (4) 10/100/1000 Mbps RJ45 Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band |
| Rackmount | Yes, 1U High |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Related products
You recently viewed
Frequently asked questions
How much does the Ubiquiti Networks EdgeSwitch 12 Fiber 12-Port Gigabit Managed Network Switch cost?
This product is quoted per project. Send us your requirements and we will prepare a quotation.
Is this product available in Malaysia?
Yes — available to order. Supplied and installed nationwide by RYZEN ESOLUTIONS (M) SDN BHD.
Who manufactures the Ubiquiti Networks EdgeSwitch 12 Fiber 12-Port Gigabit Managed Network Switch?
It is manufactured by Ubiquiti. We supply genuine units with manufacturer warranty.
Do you provide installation and support?
Yes — we design, install, configure and support this product as part of a complete solution. Ask us about maintenance packages.
