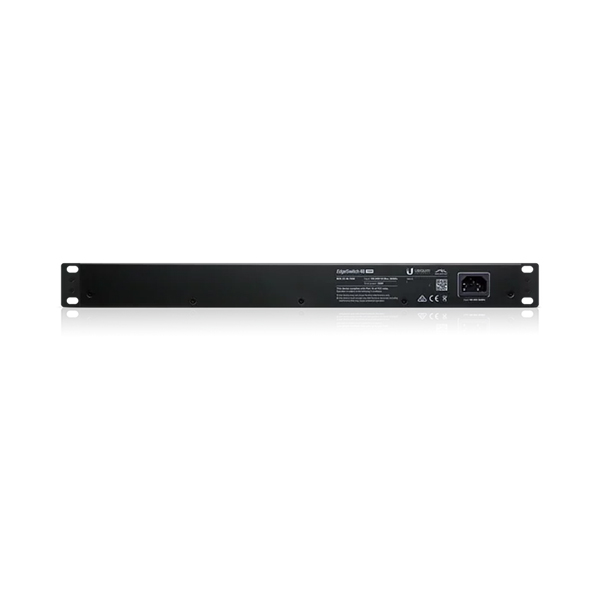

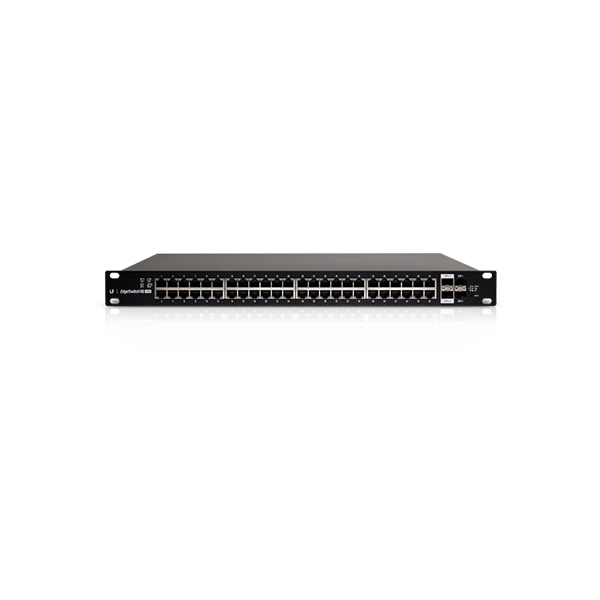

Ubiquiti Networks EdgeSwitch ES-48-750W Managed PoE+ Gigabit Switches with SFP
Buy Ubiquiti Networks EdgeSwitch ES-48-750W Managed PoE+ Gigabit Switches with SFP, Ubiquiti from Printer Bullet - Everything for office. Fast & Free Home Deliv...
Product details
- (48) Gigabit RJ45 Ports
- (2) SFP+ Ports
- (2) SFP Ports
- (1) Serial Console Port
- Non-Blocking Throughput: 70 Gbps
- Switching Capacity: 140 Gbps
- Forwarding Rate: 104.16 Mpps
- Maximum Power Consumption: 750W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- Rackmountable
Advanced Switching Technology for the Masses. Build and expand your network with Ubiquiti EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Features:
| ES-48-750W | |
|---|---|
| Dimensions | 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75") |
| Weight | 6.5 kg (14.3 lb) |
| Total Non-Blocking Throughput | 70 Gbps |
| Switching Capacity | 140 Gbps |
| Forwarding Rate | 104.16 Mpps |
| Max. Power Consumption Includes PoE Output Excludes PoE Output | 750W 64W |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 750W DC |
| LEDs Per Port RJ45 Data Ports SFP+/SFP Data Ports | PoE, Speed/Link/Activity Speed/Link/Activity |
| Networking Interfaces | (48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Certifications | CE, FCC, IC |
| Rackmount | Yes, 1U High |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| PoE Per Port | |
| PoE Interfaces | POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3at Mode | 50–57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
