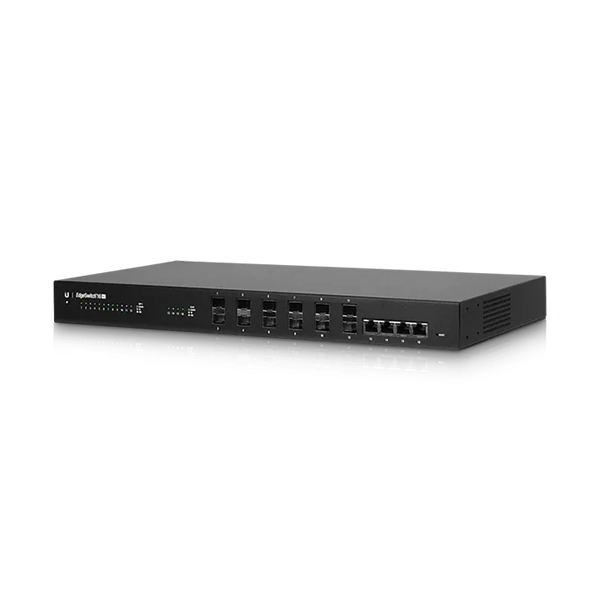

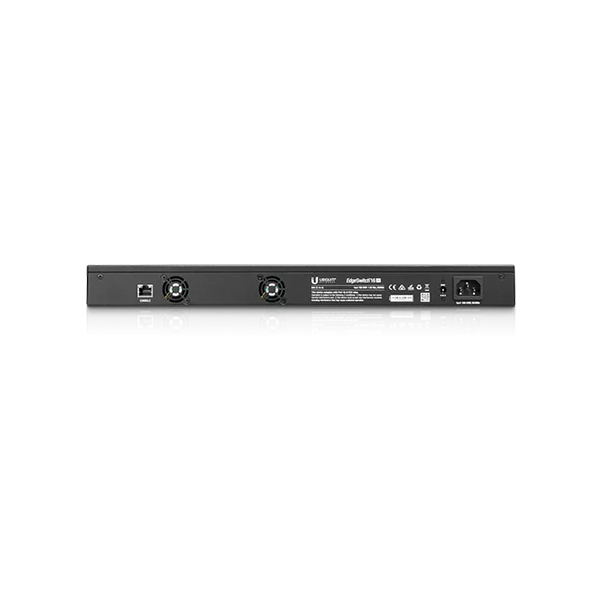

Ubiquiti Networks ES-16-XG EdgeSwitch 16 10G 16-Port Managed Aggregation Switch
Ubiquiti Networks ES-16-XG EdgeSwitch 16 10G 16-Port Managed Aggregation Switch -
Product details
The ES-16-XG is a fully managed, carrier-class 10 Gigabit aggregation switch with twelve 10G SFP+ ports and four 10G RJ45 ports. The ES-16-XG provides up to 160 Gbps total, non-blocking line rate for concurrent, full-capacity support of up to sixteen 10G switches and devices.
- (12) SFP+ Ports
- (4) 10G RJ45 Ports
- (1) RJ45 Serial Console Port
- Non-Blocking Throughput: 160 Gbps
- Switching Capacity: 320 Gbps
- Forwarding Rate: 238.10 Mpps
- Rack Mountable with Rack-Mount Brackets (Included)
- DC Input Option (Redundant or Stand-Alone)
Features:
| EdgeSwitch 16 XG | |
|---|---|
| Dimensions | 443 x 221 x 43 mm (17.44 x 8.70 x 1.69") |
| Weight | 2.62 kg (5.78 lb) |
| With Mount Brackets | 2.71 kg (5.97 lb) |
| Total Non-Blocking Line Rate | 160 Gbps |
| Max. DC Power Consumption | 36W (excludes SFP/SFP+ module) |
| Power Method AC DC | 100-240VAC/50-60 Hz, Universal Input DC 56W, 25 to 16V, with 2.5 mm, DC Power Inline Connector |
| Power Supply | AC/DC, Internal, 56W DC |
| Supported Voltage Range | 100 to 240VAC 25 to 16VDC |
| Rack-Mount | Yes, 1U High |
| LEDs Per Port SFP+ Data Ports RJ45 Data Ports | Speed/Link/Activity Speed/Link/Activity |
| Networking Interfaces | (12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In-Band |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
