Ubiquiti Networks LTU Rocket 5 GHz LTU BaseStation Radio & PtMP Access Point
Ubiquiti Networks LTU Rocket 5 GHz LTU BaseStation Radio & PtMP Access Point -
Product details
Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades.
TECHNICAL SPECIFICATIONS
- Width x Height x Depth:
224 × 82 × 48mm (8.82 × 3.23 × 1.89") - Weight: 0.468 kg (1.03 lb)

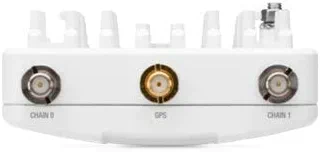

- GPS: External, Magnetic Base
- 5150-5250MHz
- 5740-5850MHz
- Power Supply: 24V, 1A PoE Gigabit Adapter (Included)
- Power Method: Dual Passive Power over Ethernet
- Max. Power Consumption: 25W
- Supported Voltage Range: +18 to +54VDC*

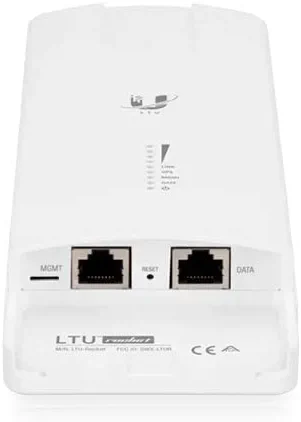

- Data Port: (1) 10/100/1000 Ethernet Port
- Configuration Port: (1) 10/100/1000 Ethernet Port
- Processor: LTU IC
- Maximum Throughput: 600 Mbps*
- Maximum Range: 200+ km**
- Encryption: 128-bit AES
- Operating System: airOS F
- Max TX Power: 29 dBm (Dependent on Regulatory Region)
- ± 2.5 ppm without GPS Synchronization
- ± 0.2 ppm with GPS Synchronization
- 10/20/30/40/50 MHz SelectableProgrammable Uplink and Downlink Duty Cycles
- Operating Temperature: -40° to 55° C (-40° to 131° F)
- FCC
- airFiber X Mount (Rocket Mount Compatible)
- GPS Pole Mount (Included)
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
