Ubiquiti UAP AC LITE Indoor, dual-band, 802.11ac Wave 1 access point with a 1.1+ aggregate throughput rate
Ubiquiti UAP AC LITE Indoor, dual-band, 802.11ac Wave 1 access point with a 1.1+ aggregate throughput rate -
Product details
- 802.11ac Wave 1 WiFi technology
- 5 GHz band with a 867 Mbps throughput rate
- 2.4 GHz band with a 300 Mbps throughput rate
- Powered with 802.3af PoE* or 24V passive PoE

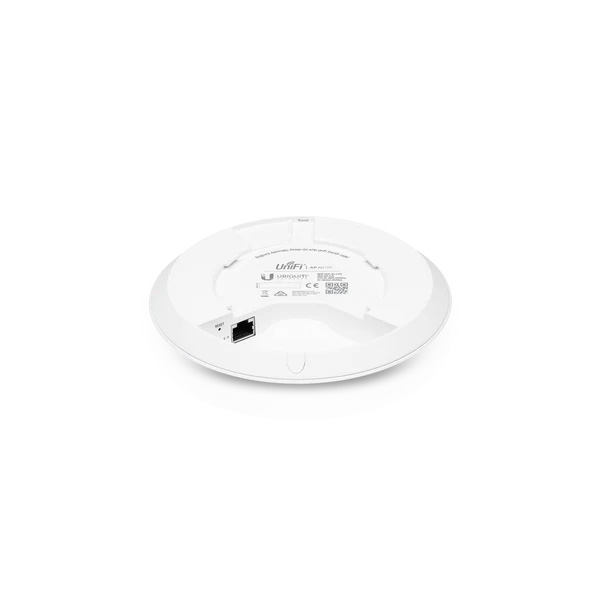

- (1) GbE RJ45 port

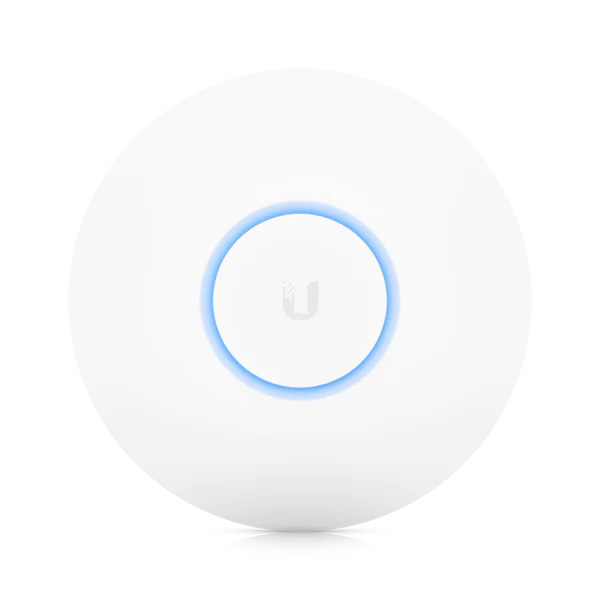

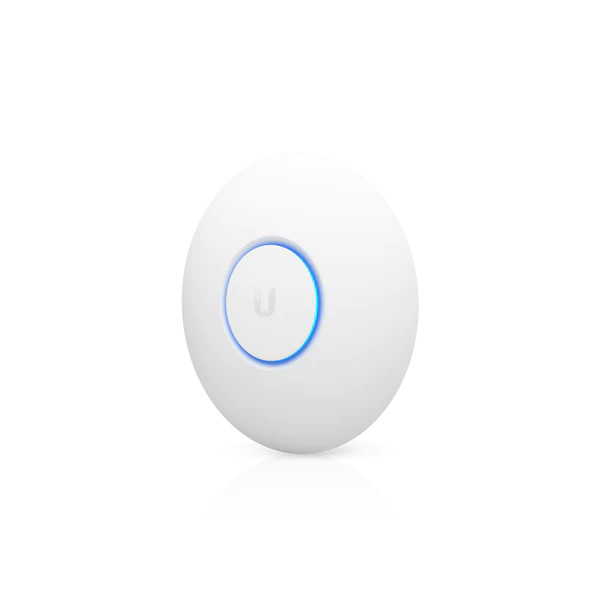

The Access Point AC Lite (UAP AC Lite) is a high-performance, indoor, 802.11ac WiFi access point that utilizes Wave 1 technology to reach a 1.1+ Gbps aggregate throughput rate with its 5 and 2.4 GHz bands. The UAP AC Lite broadcasts its signal up to 122 meters (400 feet) away, allowing for greater multi-user support from further away. This access point can be powered with either 802.3af PoE or 24V passive PoE802.3at PoE+ *, and it is equipped with (1) GbE RJ45 port for high-speed LAN connectivity. The UAP AC Lite can be set up in minutes and fully managed with the UAP Network web application or mobile app.
Features:
| Mechanical | |
|---|---|
| Dimensions | 160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24") |
| Weight With Mounting Kits | 170 g (6.0 oz) 185 g (6.5 oz) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Buttons | Reset |
| Power Method | 802.3af/A PoE 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter* |
| Power Save | Supported |
| Maximum Power Consumption | 6.5W |
| Max TX Power 2.4 GHz 5 GHz | 20 dBm 20 dBm |
| Antennas | (2) Dual-Band Antennas, 3 dBi Each |
| Wi-Fi Standards | 802.11 a/b/g/n/r/k/v/ac |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per Radio |

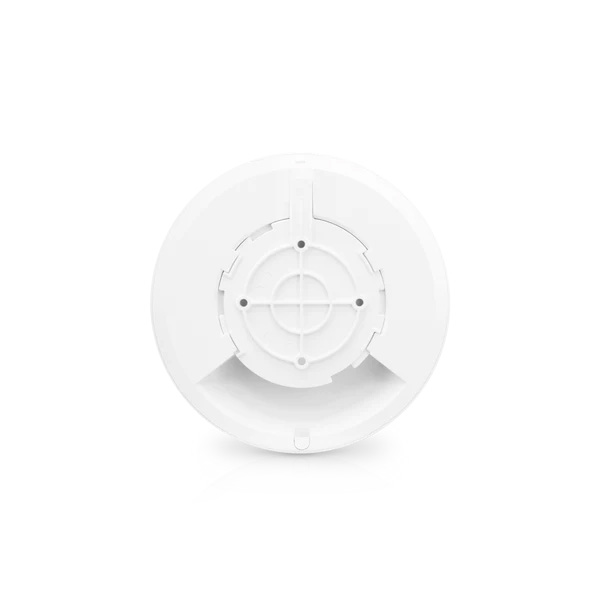

| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
