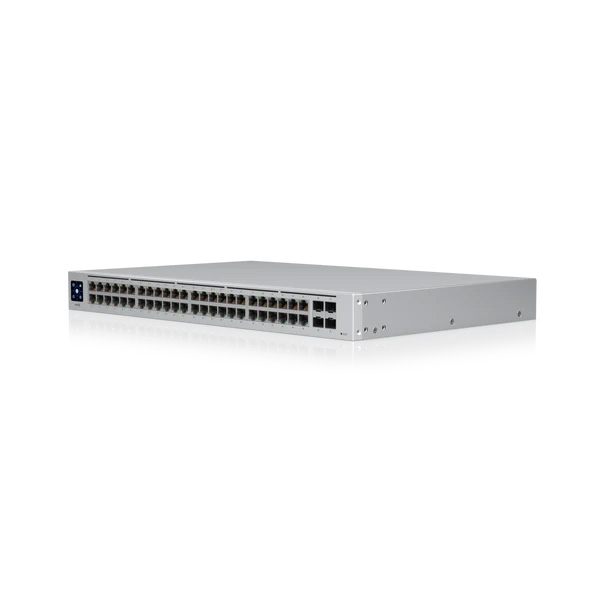

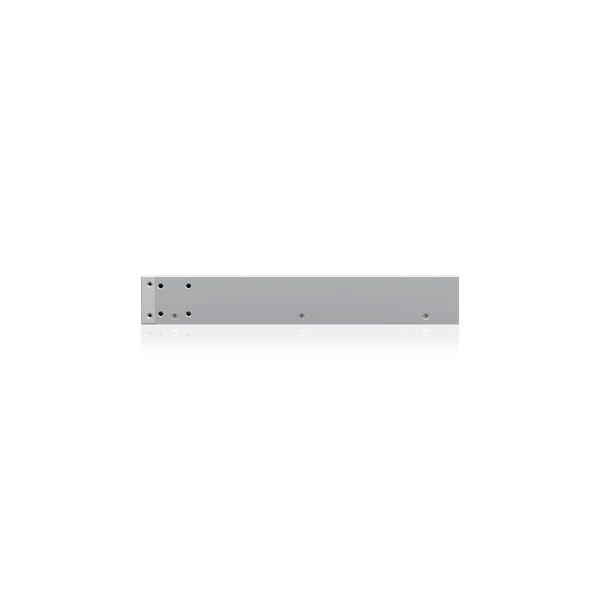

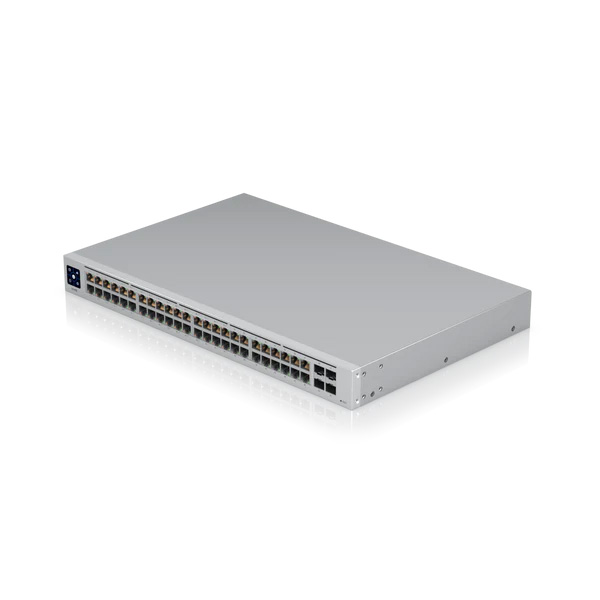

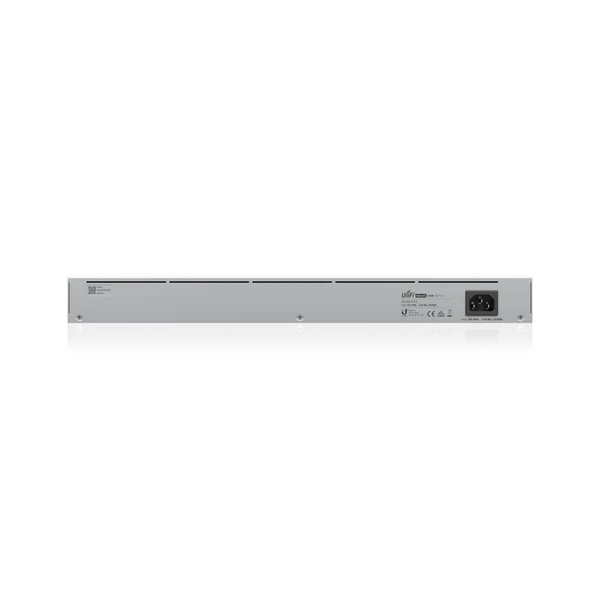

Ubiquiti USW-48-POE Layer 2, PoE switch with (48) GbE RJ45 ports, including (32) 802.3at PoE+ ports, and (4) 1G SFP ports
Buy Ubiquiti USW-48-POE Layer 2, PoE switch with (48) GbE RJ45 ports, including (32) 802.3at PoE+ ports, and (4) 1G SFP ports, Ubiquiti from Printer Bullet - Ev...
Product details
- (1) 1.3" LCM color touchscreen with AR switch management
- (32) GbE, 802.3at PoE+ RJ45 ports
- (16) GbE RJ45 ports
- (4) 1G SFP ports
- 195W total PoE supply
- Fanless, silent cooling
The Switch 48 PoE (USW 48 PoE) is a fully managed switch with (48) GbE RJ45 ports, including (32) GbE, 802.3at PoE+ ports, and (4) 1G SFP ports. The versatile USW 48 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can also be monitored or configured from anywhere with the powerful, intuitive UAP Network web application and mobile app.
Features:
Managed with the UAP Network application: Version 5.12.32 and later
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72") |
| Weight With Rackmount Brackets | 4.52 kg (9.97 lb) 4.61 kg (10.16 lb) |
| Interfaces Networking Management | (48) 10/100/1000 RJ45 Ports (4) 1G SFP Ethernet Ports Ethernet In-Band |
| Total Non-Blocking Throughput | 52 Gbps |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| Power Method | 100-240VAC, 50/60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 240W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 45W |
| LEDs RJ45 Data Ports SFP Data Ports | PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| Total Available PoE | 195W |
| PoE Interfaces Ports 1-32 | POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Max. PoE Wattage per Port by PSE 802.3at | 32W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at Mode | 50-57V |
