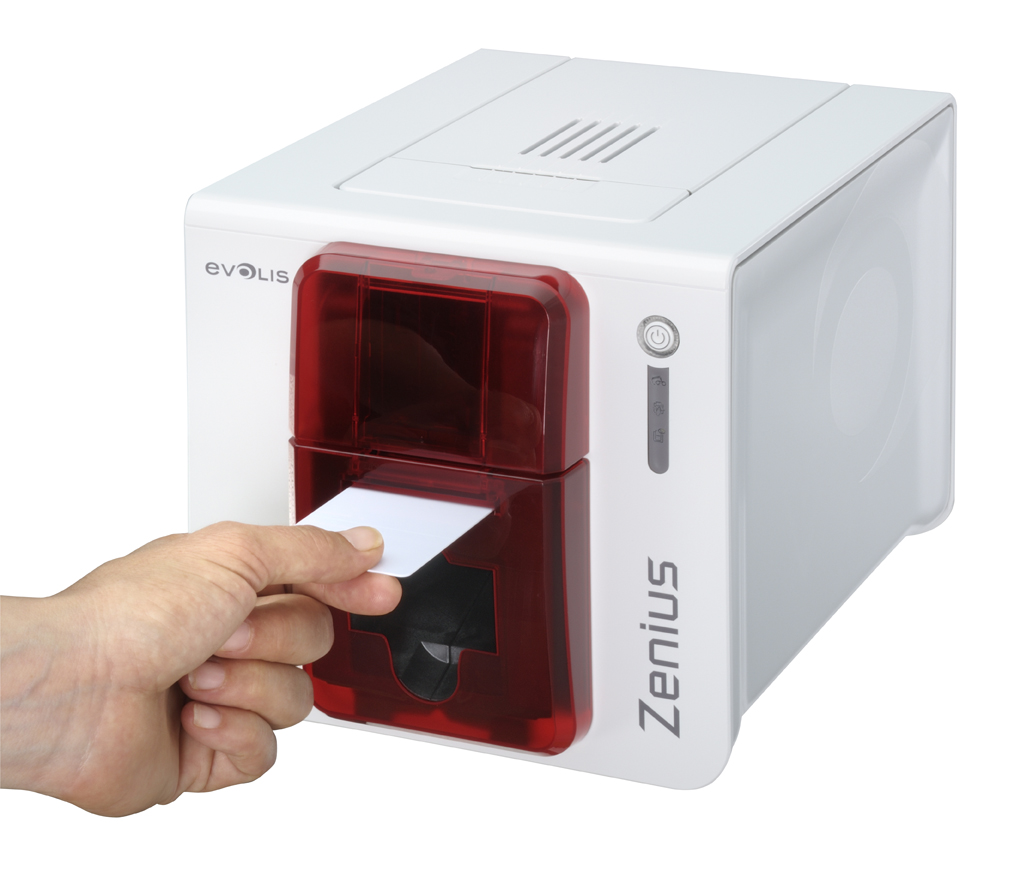

ZENIUS CLASSIC COMPACT CARD PRINTER (ZN1U0000RS)

Product details

General features

• Direct-to-card dye-sublimation/Resin thermal transfer
• Single-sided printing, edge-to-edge
• 300 dpi print head (11.8 dots/mm)
• 16 million colors
• 16MB memory (RAM), 32 MB for the Expert version
• Colors available: fire red & grey brown

Printing performances

• Color (YMCKO): 120 - 150 cards/hour
• Monochrome: 400 - 500 cards/hour

Additional encoding modules

• Available modules on the Expert version:
  • Magnetic stripe encoder ISO 7811 HiCo/LoCo, JIS2
  • Smart contact station ISO 7816-2
  • Contact smart card encoder - PC/SC, EMV 2011-1
  • Contactless smart card encoder - ISO 14443A, B, ISO15693, Mifare, DesFire, HID iCLASS
  • Other specific encoders upon request

• Internal USB ports
• Options can be combined
• Factory-installed or installed on-site

Interfaces

• USB (1.0, 1.1, 2.0, 3.0), cable supplied
• Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led) on the Expert version

Card management and specifications

• Automatic or manual feeding
• Feeder capacity: 50 cards (0.76 mm - 30 mil)
• Output hopper capacity: 20 cards (0.76 mm - 30 mil)
• Card thickness: 0.25 to 0.76 mm (10 to 30 mil), gauge adjustment
• Card types:
  • PVC cards
  • Composite PVC cards
  • PET cards
  • ABS cards
  • Special varnished cards
• Card format: ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm)

Evolis High Trust® ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.

• Automatic identification and setting
• Delivered in a drop-in cassette for easy handling
• Ribbon saver for monochrome printing

Software

• Delivered with Evolis Premium Suite^® for Windows^®:




  • Printer driver
  • Evolis Print Center for printer administration and settings
  • Evolis Printer Manager for graphical notification³
  • 24/7 online support
  • Compatible with Windows® (32/64 bits): XP SP3, Vista,W7, W8, W10
• Delivered with cardPresso XXS Lite for designing and editing badges:
  • Internal database up to 50 records
  • Windows® (from XP onwards) and Mac OS X
• Delivered with a driver for Mac OS X (from 10.5 onwards)
• Linux OS upon request
• Evolis Premium SDK for remote supervision of the printer, while facilitating and speeding up integrationinto IT systems

Eco-friendly design, certifications and statement of compliance

• Standby, sleep modes & reduced energy consumption
• CE, FCC, IEC, VCCI, CCC, KC, BIS, EAC
• RoHS

Warranty

• 2-year warranty (printer and printhead)
• Warranty extension available as an option

1 Under specific conditions / 2 Depends on the Windows® version  / 3 Requires the .net 4.0 client profile version / 4 Warranty subject to observance of specific conditions and use of Evolis High Trust® ribbons.
