HP DesignJet T250 24-inch Compact Large Format Plotter Printer (up to A1 size) with Mobile Printing
HP DesignJet T250 24-inch Compact Large Format Plotter Printer (up to A1 size) with Mobile Printing -
Quote on request
✓ Available to order · supplied & installed in Malaysia
Product details
Specifications
| Product number | 5HB06A |
| Functions | |
| PRINT SPECIFICATIONS | |
| Print technology | HP Thermal Inkjet |
| Print languages | JPEG, URF |
| Model size | 610 mm |
| Theoretical minimum line width | 0.02 mm |
| Line accuracy | ±0.1%[3] |
| Print speed | 30 sec/page on A1, 76 A1 prints per hour[1] |
| Maximum optical density (black) | 8 L* min/2.10 D[4] |
| Print quality color (best) | Up to 2400 x 1200 optimized dpi |
| Non-printable area (cut-sheet) | 5 x 5 x 5 x 5 mm |
| Non-printable area (roll media) | 5 x 5 x 5 x 5 mm |
| Printer drivers included | Raster driver for Windows and macOS |
| Internal Storage | None |
| Memory | 512 MB |
| CONNECTIVITY AND COMMUNICATIONS | |
| Connectivity, standard | Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11 |
| POWER | |
| Power Consumption Description | <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby) |
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max |
| CARTRIDGES AND PRINTHEADS | |
| Number of print cartridges | 4 (C, M, Y, K) |
| Print cartridge volume delivered | 80 ml (K); 38 ml (K); 29 ml (C, M, Y) |
| Print heads | 1 (cyan, magenta, yellow, black) |
| Print head nozzles | 1376 |
| Ink drop | 5.5 pl (C, M, Y); 12 pl (K) |
| Ink types | Dye-based (C, M, Y); pigment-based (K) |
| SUPPORTED PRINTING MEDIA | |
| Finished output handling | Sheet feed, roll feed, automatic horizontal cutter |
| Media types | Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene) |
| Media sizes supported | A4, A3, A2, A1 |
| Media sizes, custom | 210 x 279 to 610 x 1897 mm |
| Media sizes standard (metric rolls) | 279 to 610 mm |
| Media width, maximum | 610 mm |
| Media weight, recommended | 60 to 280 g/m² |
| Media thickness | Up to 11.8 mil |
| Roll external diameter | 100 mm |
| Roll maximum input | 1 |
| Roll maximum weight | 4.1 kg |
| Recommended media | [5] BMG trademark license code FSC®-C115319, see http://www.fsc.org. HP trademark license code FSC®-C017543, see http://www.fsc.org. |
| Supported Primary Applications | Line drawings; Presentations; Renderings |
| ENVIRONMENTAL | |
| Operating temperature range | 5 to 40ºC |
| Storage temperature range | -25 to 55ºC |
| Operating humidity range | 20 to 80% RH |
| Non-Operating Humidity Range | 0 to 95% RH |
| Acoustic power emissions | 5.8 B(A) (operating), <3.4 B(A) (idle) |
| Acoustic pressure emissions | 42 dB(A) (operating), <16 dB(A) (idle) |
| DIMENSIONS AND WEIGHT | |

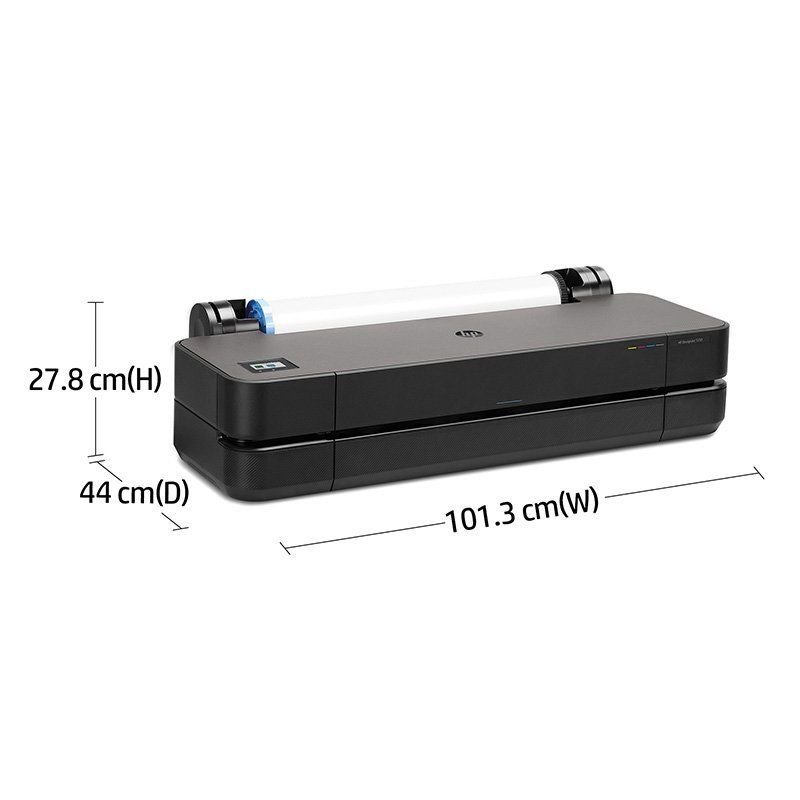

| Dimensions without stand (W x D x H) | 1013 x 440 x 285 mm |
| Package dimensions (W x D x H) | 1155 x 575 x 405 mm |
| Weight | 21.5 kg |
| Package weight | 28 kg |
| BOX CONTENTS | |
| What's in the box | HP DesignJet T250 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord |
| Software included | HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant |
| WARRANTY | |
| Warranty | Three-year limited hardware warranty |
