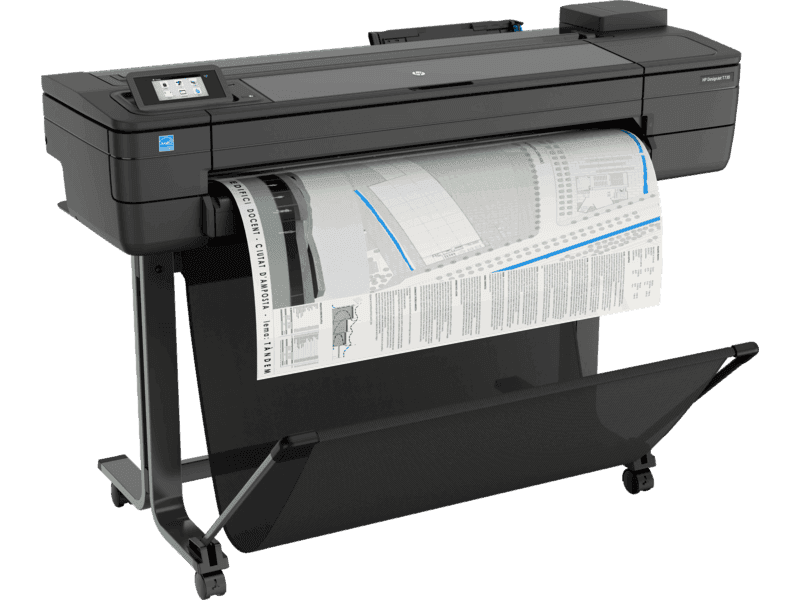

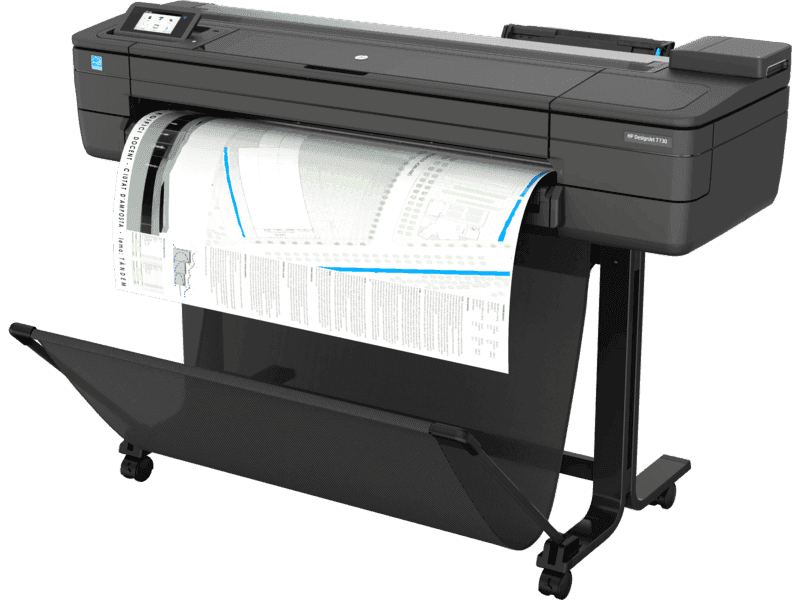

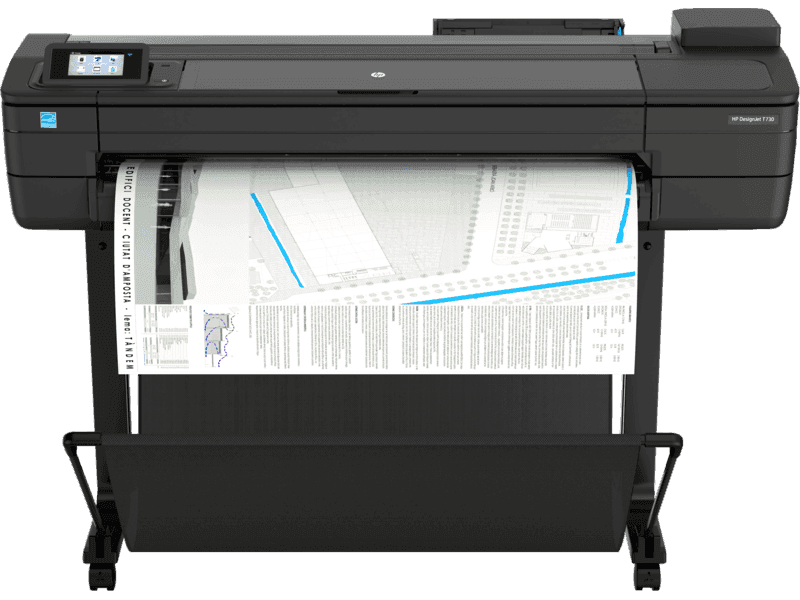

HP DesignJet T730 36-in Printer

Print technology

HP Thermal Inkjet

Average weekly print volume (D/A1)

100 D/A1 prints per week

Print languages

HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF

Model size

914 mm

Guaranteed minimum line width

0.07 mm (ISO/IEC 13660:2001(E))

Guaranteed minimum line width footnote

Measured on HP Matte Film

Theoretical minimum line width

0.02 mm (HP-GL/2 addressable)

Line accuracy

±0.1%[2]

Line accuracy note

±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E HP Heavyweight media in Best or Normal mode with Original HP inks

Print speed

25 sec/page on A1, 82 A1 prints per hour[1]

Print speed line drawing (economode, A1 plain paper)

82 A1 prints per hour

Print time line drawing (economode, A1 plain paper)

25 sec/page

Maximum optical density (black)

8 L* min/2.10 D[3]

Print quality color (best)

Up to 2400 x 1200 optimized dpi

Maximum optical density footnote (black)

With HP Premium Instant Dry Photo Gloss media with Original HP inks.

Non-printable area (cut-sheet)

5 x 5 x 5 x 5 mm

Non-printable area (roll media)

5 x 5 x 5 x 5 mm

Printing path

Wi-Fi Direct to enable mobile printing via HP ePrint, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive

Printer drivers included

HP-GL/2, HP-RTL drivers for Windows; Raster driver for macOS and Windows

Internal Storage

None

Connectivity, standard

Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n

Connectivity, optional

HP USB 3.0 to Gigabit LAN Adapter

Network ready

Standard

HP ePrint capability

Yes

Mobile printing capability

Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing via HP ePrint, Apple AirPrint™ and HP Smart App. Supports printing from most smartphones and tablets using these operating systems: Android, iOS

Memory

1 GB

Number of print cartridges

4 (C, M, Y, mK)

Print cartridge volume delivered

HP 728 Ink Cartridge: matte black (300 ml); cyan, magenta, yellow (130 ml); matte black, cyan, magenta, yellow (69 ml); cyan, magenta, yellow (40 ml)

Print heads

1 (C, M, Y, mK)

Print head nozzles

1376

Ink drop

6 pl (C, M, Y); 12.6 pl (mK)

Ink types

Dye-based (C, M, Y); pigment-based (mK)

Finished output handling

Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter

Media types

Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)

Media sizes supported

Input tray: A4, A3; Manual feed: A2, A1, A0

Media sizes, custom

Input tray: 210 x 279 to 330 x 482 mm; Manual feed: 330 x 482 to 914 x 1897 mm

Media sizes standard (metric rolls)

279 to 914 mm

Media width, maximum

914 mm

Media weight, recommended

60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)

Media thickness

Up to 11.8 mil

Roll external diameter

100 mm

Roll maximum input

1

Roll maximum weight

6.2 kg

Supported Primary Applications

Line drawings; Renderings; Presentations

Dimensions without stand (W x D x H)

1403 x 605 x 1155 mm

Package dimensions (W x D x H)

1578 x 575 x 646 mm

Weight

43.7 kg

Package weight

65.7 kg

What's in the box

HP DesignJet T730 Printer, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord

Software included

HP Click, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows

Warranty

Three-year limited warranty. Warranty and support options vary by product, country and local legal requirements.
