QNAP · NAS & Storage

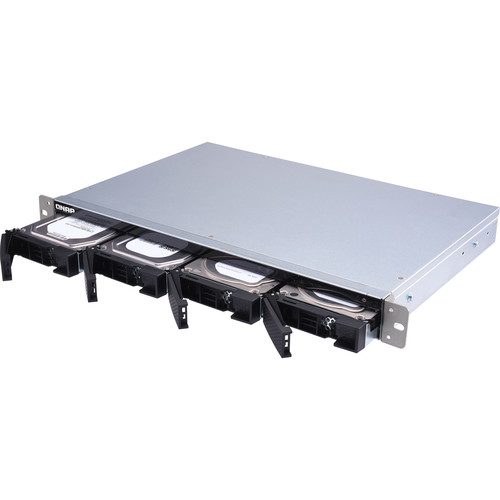

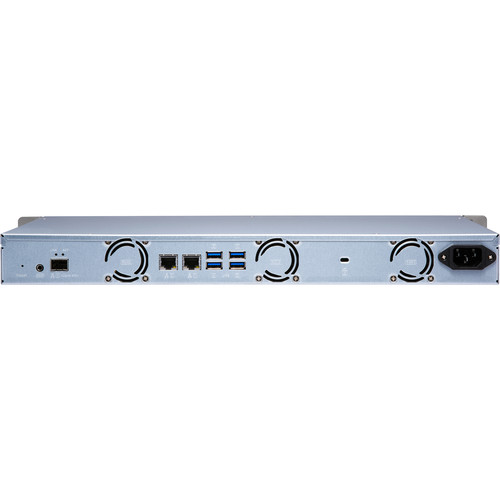

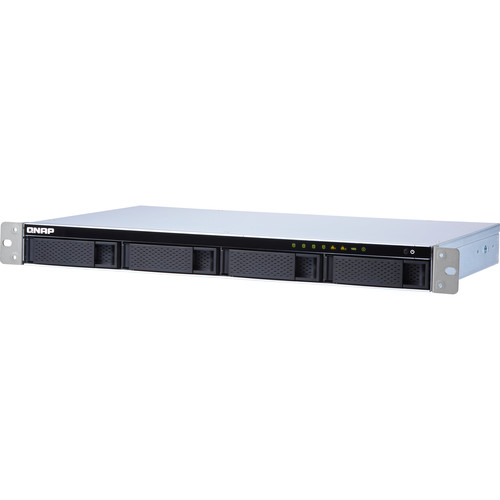

QNAP TS-431XEU-8G 4-Bay NAS Enclosure
QNAP TS-431XEU-8G 4-Bay NAS Enclosure - Key Features4 x 3.
Quote on request
✓ Available to order · supplied & installed in Malaysia
| Form factor | 1U Rackmount |
Product details
Key Features
- 4 x 3.5"/2.5" SATA III Drive Bays
- 1.7 GHz Alpine AL-314 Quad-Core
- 8GB of 1600 MHz DDR3 RAM
- 1 x 10GbE SFP+ Port | 4 x 1GbE Ports
- 4 x USB 3.1 Gen 1 Ports Type-A Ports
- RAID 0, 1, 5, 6, 10, JBOD, and Single
- Up to 1055 MB/s Download Speeds
- Up to 580 MB/s Upload Speeds
- AES 256-Bit Volume Encryption
- QTS 5.0.1 Operating System
| CPU | AnnapurnaLabs Alpine AL314 32-bit ARM® Cortex-A15 4-core 1.7GHz processor | ||
| CPU Architecture | 32-bit ARM | ||
| Floating Point Unit | |||
| Encryption Engine | |||
| System Memory | 8 GB SODIMM DDR3 (1 x 8 GB) | ||
| Maximum Memory | 8 GB (1 x 8 GB) | ||
| Memory Slot | 1 x SODIMM DDR3 | ||
| Flash Memory | 512MB (Dual boot OS protection) | ||
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s | ||
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives | ||
| Hot-swappable | |||
| SSD Cache Acceleration Support | |||
| Gigabit Ethernet Port (RJ45) | 2 | ||
| 10 Gigabit Ethernet Port | 1 x 10GbE SFP+ | ||
| Wake on LAN (WOL) | |||
| Jumbo Frame | |||
| USB 3.2 Gen 1 port | 4 | ||
| Form Factor | 1U Short Depth Rackmount | ||
| LED Indicators | HDD 1-4, Status, USB, LAN1-3 | ||
| Buttons | Power, Reset | ||
| Dimensions (HxWxD) | 43.3 × 430 × 291 mm Excludes ear hook and the protruding part of the Power Supply Unit. | ||
| Weight (Net) | 5 kg | ||
| Weight (Gross) | 5.9 kg | ||
| Operating Temperature | 0 - 40 °C (32°F - 104°F) | ||
| Storage Temperature | -20 - 70°C (-4°F - 158°F) | ||
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | ||
| Power Supply Unit | Open-frame 100W, Input: 100V-240V ~ / 3.5A, 50Hz-60Hz | ||
| Power Consumption: HDD Sleep Mode | 12.42 W | ||
| Power Consumption: Operating Mode, Typical | 30.99 W Tested with drives fully populated. | ||
| Fan | 3 x 40mm, 12VDC | ||
| System Warning | Buzzer | ||
| Kensington Security Slot | |||
| Standard Warranty | 3 | ||
| Compute Specs | |
|---|---|
| Form factor | 1U Rackmount |
Your research
You recently viewed
Frequently asked questions
How much does the QNAP TS-431XEU-8G 4-Bay NAS Enclosure cost?
This product is quoted per project. Send us your requirements and we will prepare a quotation.
Is this product available in Malaysia?
Yes — available to order. Supplied and installed nationwide by RYZEN ESOLUTIONS (M) SDN BHD.
Who manufactures the QNAP TS-431XEU-8G 4-Bay NAS Enclosure?
It is manufactured by QNAP. We supply genuine units with manufacturer warranty.
Do you provide installation and support?
Yes — we design, install, configure and support this product as part of a complete solution. Ask us about maintenance packages.
