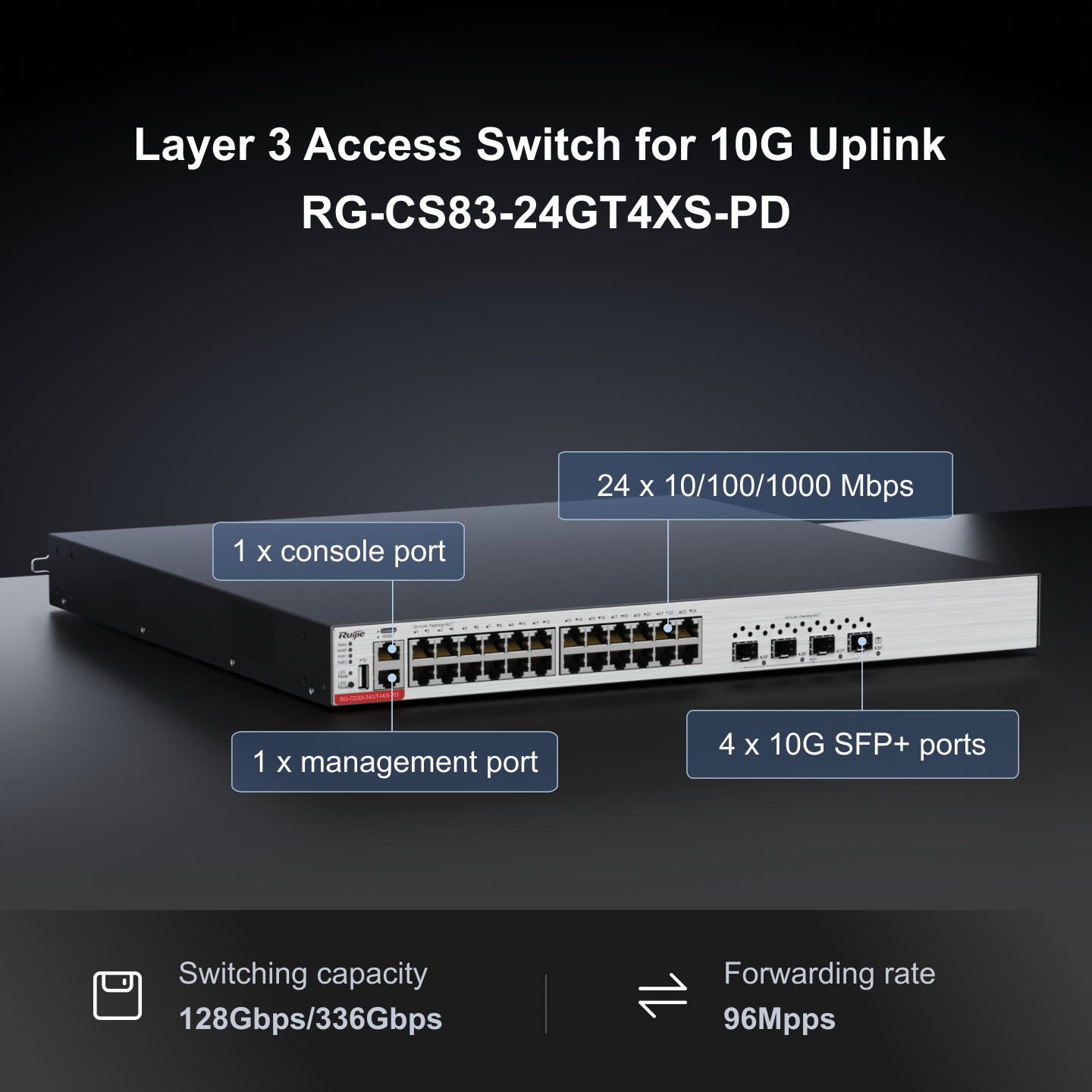

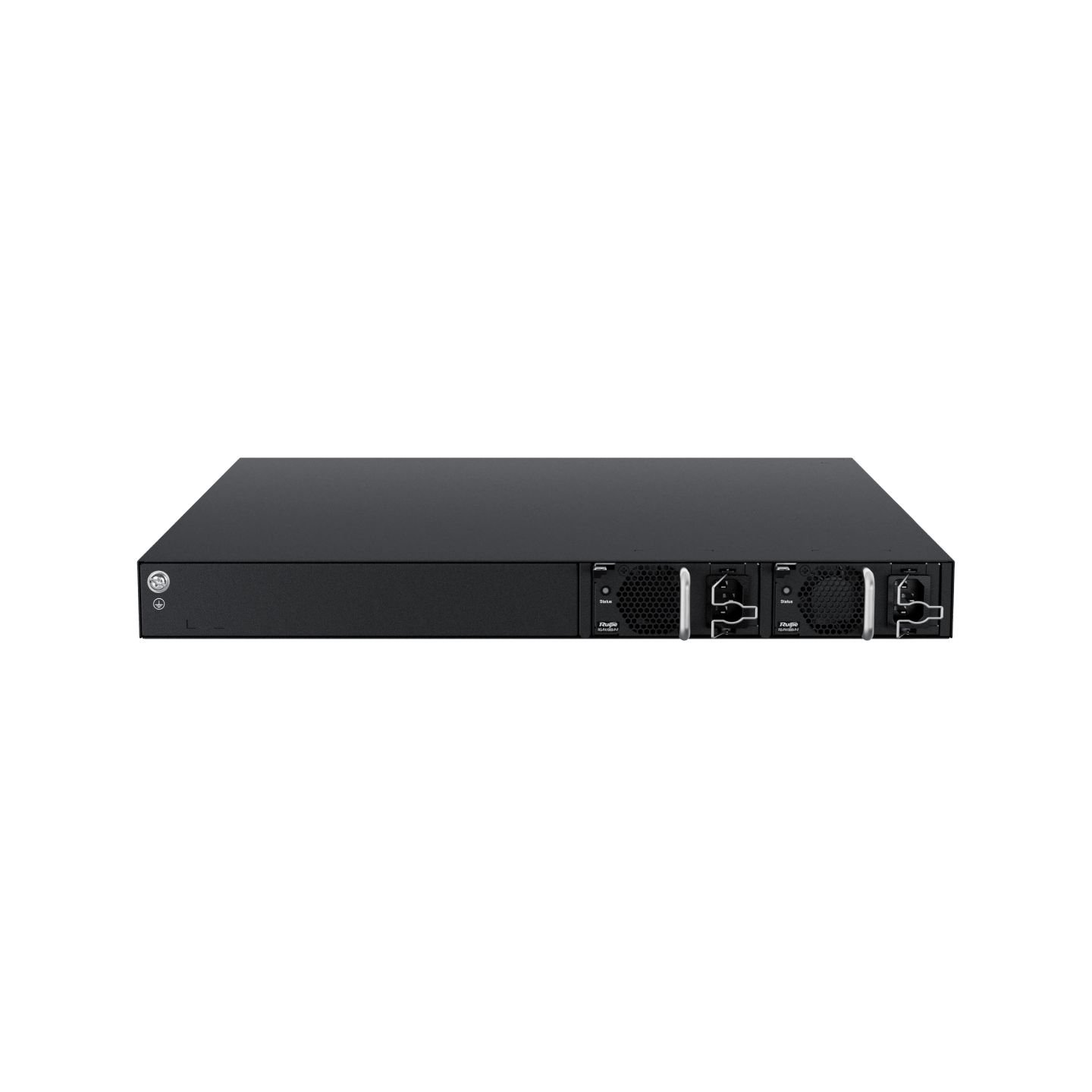

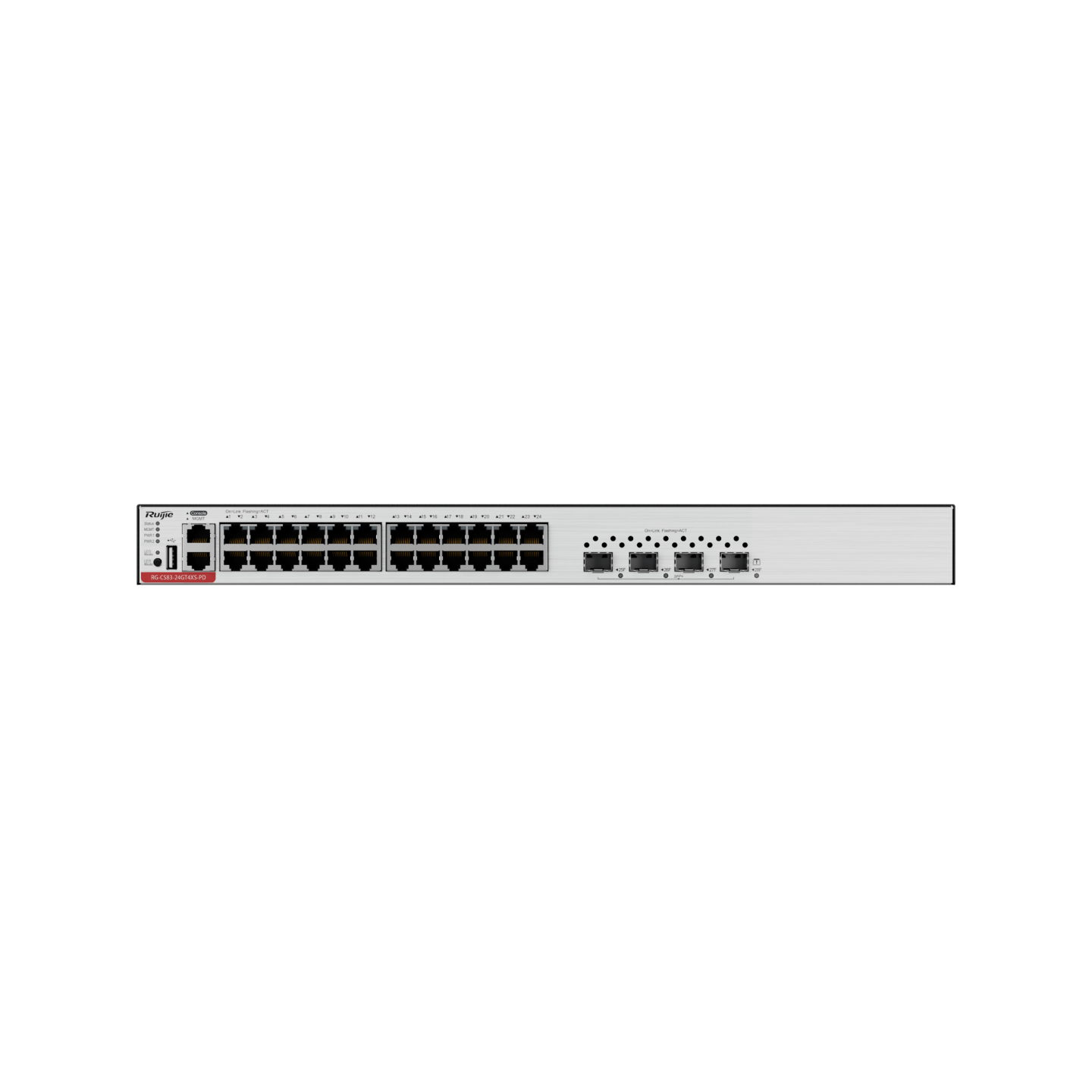

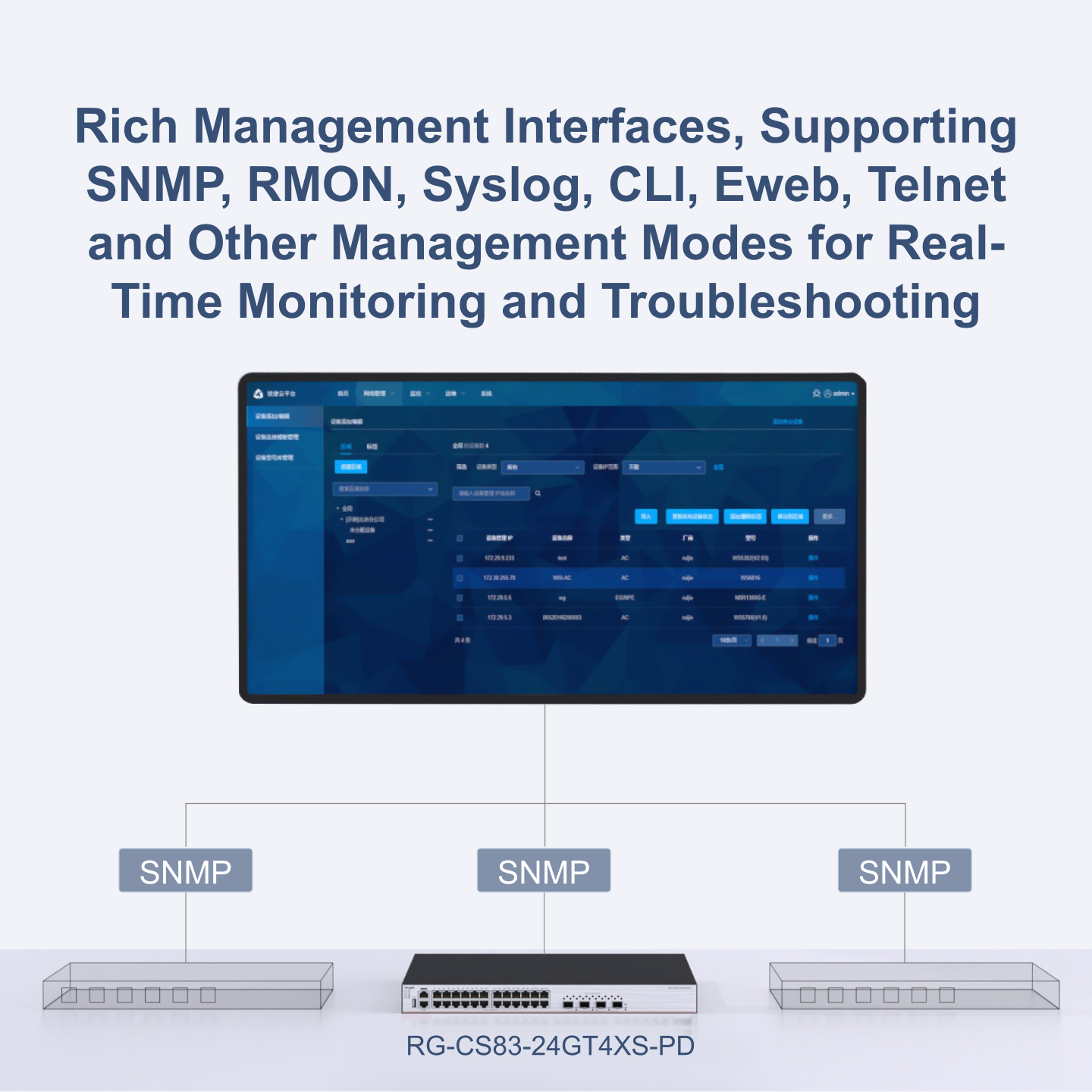

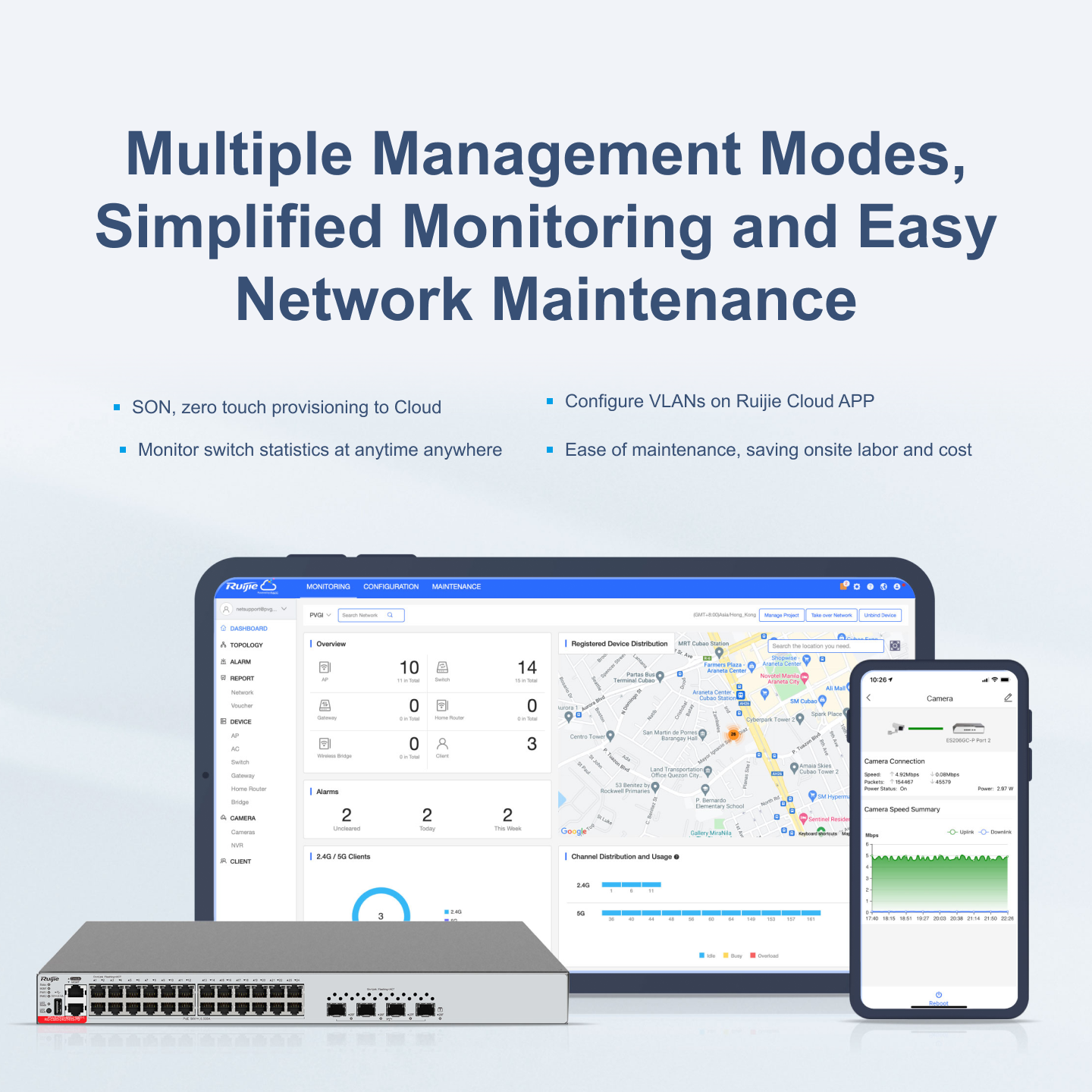

RUIJIE RG-CS83-24GT4XS-PD 24-Port GE Electrical Layer 3 Managed Access Switch with PoE+, 4 × 10G Uplink Ports

Hardware Specifications

RG-CS83-24GT4XS-PD

Interface Specifications

Fixed ports

24 x 10/100/1000 BASE-T ports

4 x 1G/10G SFP+ ports

PoE standards: IEEE 802.3af and 802.3at

Fans

Fixed fans

Power supplies

RG-PA600I-P-F: 600 W (PoE: 370 W), 0.9 kg

RG-PA1000I-P-F: 176-290 V AC 1000 W; 90-176 V AC 930 W (PoE: 740 W); 1 kg

Power supplies in redundancy mode

Fixed management ports

1 x MGMT port, 1 x console port, and 1 x USB port

System Specifications

Forwarding rate

96 Mpps

System Switching capacity

336 Gbps

MAC address

32K

ARP table

4K

Routing table size (IPv4)

8K

Routing table size (IPv6)

4K

ACL entries

In: 3500

Out:1500

Number of VSU members

4

Dimensions and Weight

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

Package dimensions (W x D x H)

570 mm x 565 mm x 172 mm

Weight of the empty chassis

4.3 kg

Package weight

6.78 kg

CPU and Storage

CPU

Dual cores, with the clock speed of 1.2 GHz

Storage

Flash memory: 2 GB

SDRAM: 1 GB

Power and Consumption

Maximum power consumption

< 65 W (non-PoE)

< 810 W (PoE full load)

Maximum output power

RG-PA600I-P-F: 600 W (PoE: 370 W)

RG-PA1000I-P-F:

176 V AC to 290 V AC, 1000W

90 V AC to 176 V AC, 930 W (PoE: 740 W)

Rated input voltage

RG-PA600I-P-F:

AC: 100 V AC to 240 V AC, 50/60 Hz

HVDC: 240 V DC

RG-PA1000I-P-F:

AC: 100 V AC to 240 V AC, 50/60 Hz

HVDC: 240 V DC

Maximum input voltage

RG-PA600I-P-F:

AC: 90 V AC to 264 V AC, 47/63 Hz

HVDC: 192 V DC to 288 V DC

RG-PA1000I-P-F:

AC: 90 V AC to 264 V AC, 47/63 Hz

HVDC: 192 V DC to 288 V DC

Environment and Reliability

MTBF

≥ 356,000 hours (dual power modules)

≥ 208,000 hours (single power module)

Heat dissipation

Left-to-right and front-to-right airflow

Operating temperature

0°C to 45°C (32°F to 115°F)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Operating humidity

10% to 90% RH (non-condensing)

Storage humidity

5% to 95% RH (non-condensing)

Operating noise

27°C: 51.6 dB

45°C: 57.4 dB

Interface surge protection

Power port: 6 kV/6 kV

Telecom port: 10 kV (MGMT port: 4 kV)

RG-CS83-PD Series

Feature

Description

Ethernet switching

Jumbo frame (maximum length: 9216 bytes)

IEEE 802.1Q (4K VLANs)

Voice VLAN

Super VLAN and private VLAN

MAC VLAN, port-based VLAN, protocol-based VLAN, and IP-subnet based VLAN

GVRP

Basic QinQ

Selective QinQ

STP, RSTP, and MSTP

ERPS (G.8032)

LLDP/LLDP-MED

LACP (IEEE 802.3ad)

IP service

ARP

DHCP client, DHCP relay, and DHCP server

DHCP snooping

DNS

DHCPv6 client and DHCPv6 relay

DHCPv6 snooping

Neighbor Discovery (ND) and ND snooping

IP routing

Static routing

RIP, RIPng

OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6

IPv4 and IPv6 VRF

IPv4 and IPv6 PBR

Multicast

IGMP v1/v2/v3, and IGMP proxy

IGMP v1/v2/v3 snooping

PIM-DM, PIM-SM, and PIM-SSM

MSDP

MLD v1/v2

MLD snooping v1/v2

PIM-SMv6, PIM-SSM v6

ACL and QoS

Standard IP ACLs

Extended IP ACLs

Extended MAC ACLs

ACL80

IPv6 ACL

ACL redirection

Port traffic identification

Port traffic rate limiting

802.1p/DSCP/ToS traffic classification

Eight priority queues per interface

Traffic policing: CAR

Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
