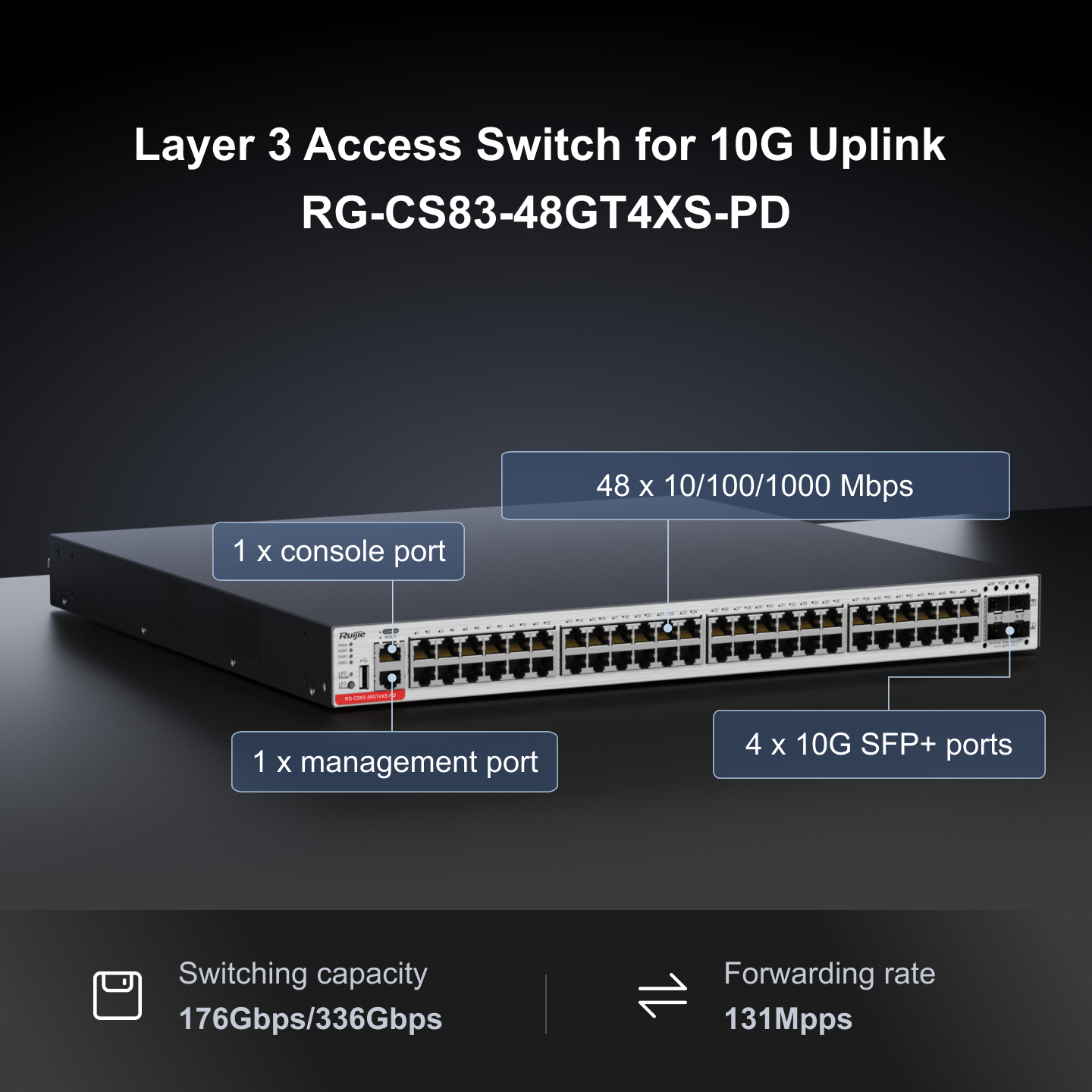

RUIJIE RG-CS83-48GT4XS-PD 48-Port GE Electrical Layer 3 Managed Access Switch with PoE+, Four 10G Uplink Ports
Highlight Features48 x GE Ethernet ports and 4 x 10GE uplink optical portsIEEE 802.
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Service ports | 48 x 10/100/1000 Mbps electrical ports with auto-negotiation, 4 x 1GE/10GE SFP+ ports |
| Forwarding Rate | 131 Mpps |
| Power Supply | AC200–240 VAC, 50/60 Hz |
| Switching Capacity | 176 Gbps |
| Operating Temperature | 0–45°C |
Product details
- 48 x GE Ethernet ports and 4 x 10GE uplink optical ports
- IEEE 802.3af and IEEE 802.3at compliant, PoE+ supported
- VSU, Realizing Flexible Networking and High Performance
- Multiple management modes, allowing simplified and easy network maintenance
Key Specification
Service port
48 x 10/100/1000 Mbps electrical ports with auto-negotiation, 4 x 1GE/10GE SFP+ ports
Forwarding rate
131 Mpps
AC
200–240 VAC,50/60 Hz
Surge protection
10 KV
Operating Temperature
0–45°C
PoE
supported
Switching Capacity
176 Gbps
Cooling mode
fan modules
Power Consumption
≤ 55 W (non-PoE), or < 1570 W (PoE fully loaded)
Dimensions (W x D x H)
442 mm x 420 mm x 43.6 mm
Warranty period
3 years
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Service ports | 48 x 10/100/1000 Mbps electrical ports with auto-negotiation, 4 x 1GE/10GE SFP+ ports |
| Forwarding Rate | 131 Mpps |
| Power Supply | AC200–240 VAC, 50/60 Hz |
| Switching Capacity | 176 Gbps |
| Operating Temperature | 0–45°C |
| Power Consumption | ≤ 55 W (non-PoE), or < 1570 W (PoE fully loaded) |
| Dimensions | 442 mm x 420 mm x 43.6 mm |
| Warranty Period | 3 years |
