Ruijie · Switches
RUIJIE RG-CS85-24SFP/8GT8XS-D 24-Port GE Optical Layer 3 Enterprise-Class Core or Aggregation Switch (with Eight Combo Ports), Eight 10G Uplink Ports
Buy RUIJIE RG-CS85-24SFP/8GT8XS-D 24-Port GE Optical Layer 3 Enterprise-Class Core or Aggregation Switch (with Eight Combo Ports), Eight 10G Uplink Ports, Ruiji...
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Service ports | 24 x 1000 Mbps SFP ports, eight combo 10/100/1000 Mbps electrical ports, eight 1G/10G SFP+ ports |
| Uplink ports | Eight 10G optical ports |
| Switching Capacity | 208Gbps/688Gbps (including expansion module) |
| Forwarding Rate | 155Mpps/512Mpps (including expansion module) |
| Operating Temperature | 0 - 45°C |
Product details
- Rich port types, 24 x 1000 Mbps Ethernet ports, and 8 × 10G optical ports for uplink
- Hardware redundancy, guaranteed service continuity and network connectivity
- VSU virtualization, flexible networking and high reliability
- Layer 3 routing control, adaptive to multiple services, efficient and guaranteed data transmission
- Network security policies, real-time monitoring, CPP and NFPP, delivering enhanced network robustness

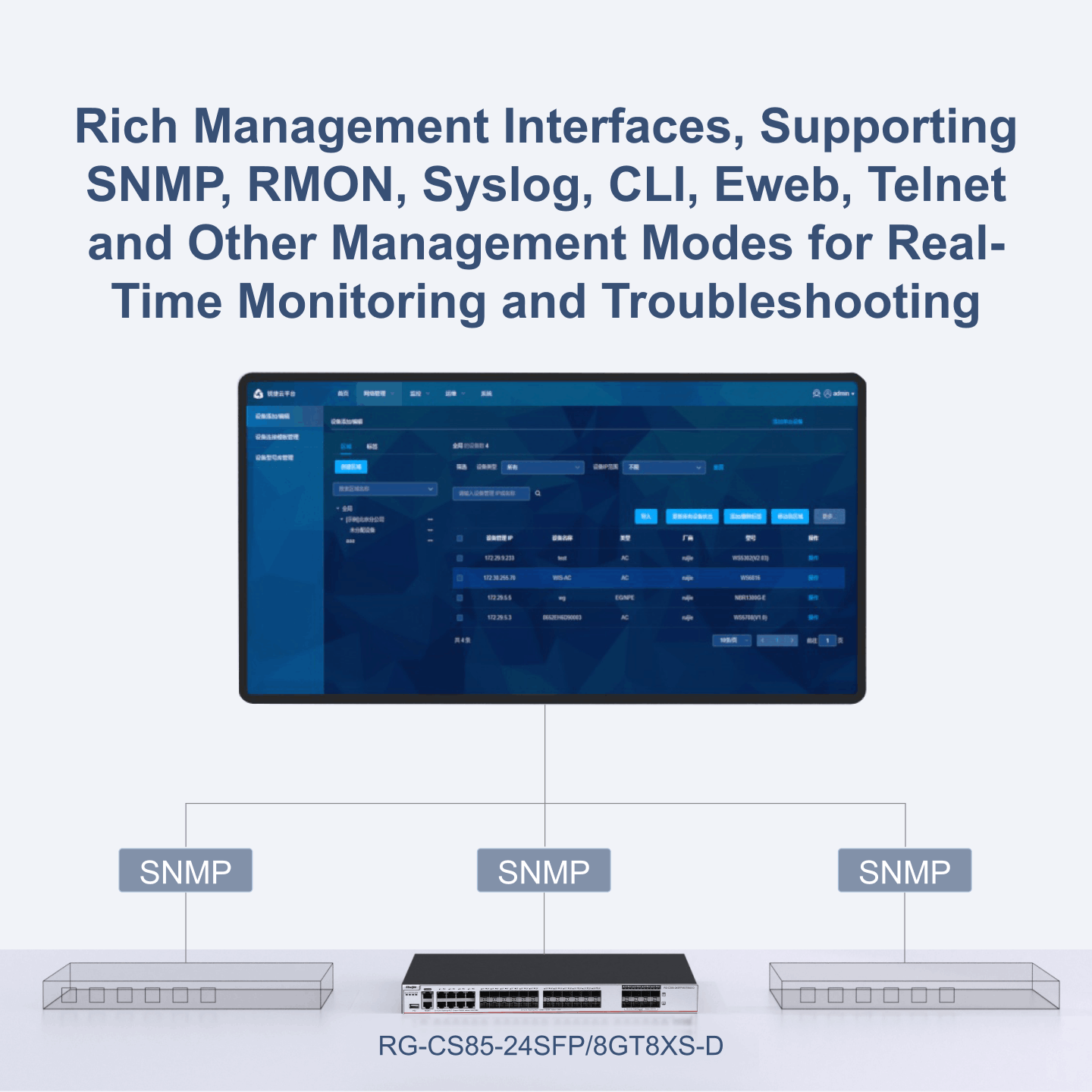

- SNMP, RMON, Syslog, USB log backup features, CLI, Eweb, telnet and other management modes, easy network maintenance
Key Specification
Service port
24 x 1000 Mbps SFP ports (Ports 1–16 are 100/1000 Mbps SFP ports), eight combo 10/100/1000 Mbps electrical ports with auto-negotiation, eight 1G/10G SFP+ ports, and two modular power slots
Switching Capacity
208Gbps/688Gbps(including expansion module)
Cooling mode
Fan cooling
DC
240 VDC
Link Aggregation
Supported
Operating Temperature
0 - 45°C
Management port
1 x management port, 1 x console port, and 1 x USB 2.0 port
Forwarding rate
155Mpps/512Mpps(including expansion module)
AC
100 - 240 VAC,50/60 Hz
Power Consumption
< 77 W (without expansion module), or < 102 W (with expansion module)
Dimensions (W x D x H)
440 mm x 340 mm x 44 mm
Warranty period
3 years
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Service ports | 24 x 1000 Mbps SFP ports, eight combo 10/100/1000 Mbps electrical ports, eight 1G/10G SFP+ ports |
| Uplink ports | Eight 10G optical ports |
| Switching Capacity | 208Gbps/688Gbps (including expansion module) |
| Forwarding Rate | 155Mpps/512Mpps (including expansion module) |
| Operating Temperature | 0 - 45°C |
| Power Consumption | < 77 W (without expansion module), or < 102 W (with expansion module) |
| Dimensions | 440 mm x 340 mm x 44 mm |
| Warranty Period | 3 years |
