Name: RUIJIE RG-CS86-20XS4VS2QXS-D: 20-Port 10GE Layer 3 Ruijie Cloud-Managed Core/Aggregation Switch (4 x 25GE SFP28 Ports, 10GE Compatible), 40GE Uplink
Brand: Ruijie
SKU: PRD-202607-5497

Product details

Highlight Features

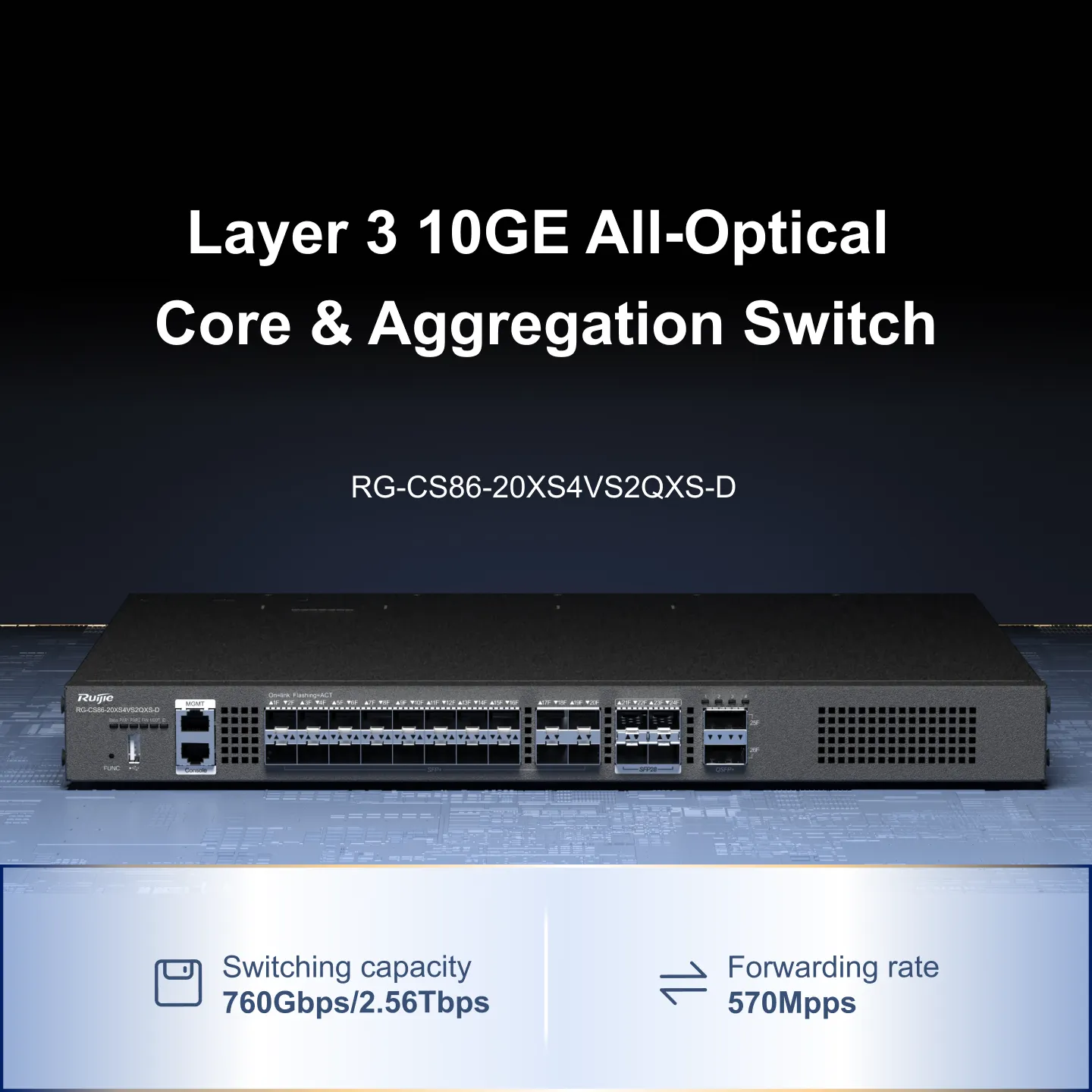

20 x 10GE SFP+ ports, 4 x 25GE SFP28 ports, and 2 x 40GE QSFP+ ports for uplink

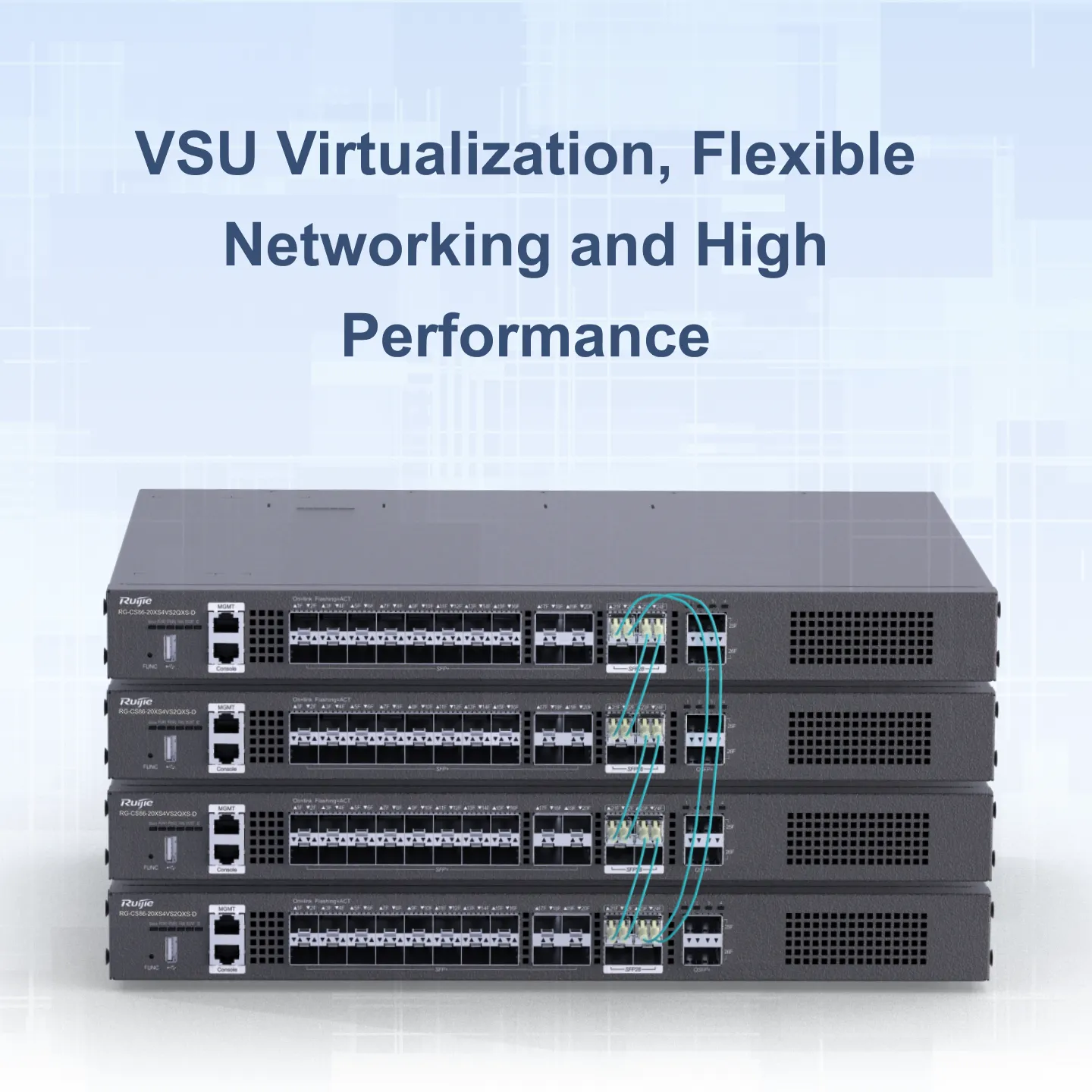

VSU, realizing flexible networking and high performance

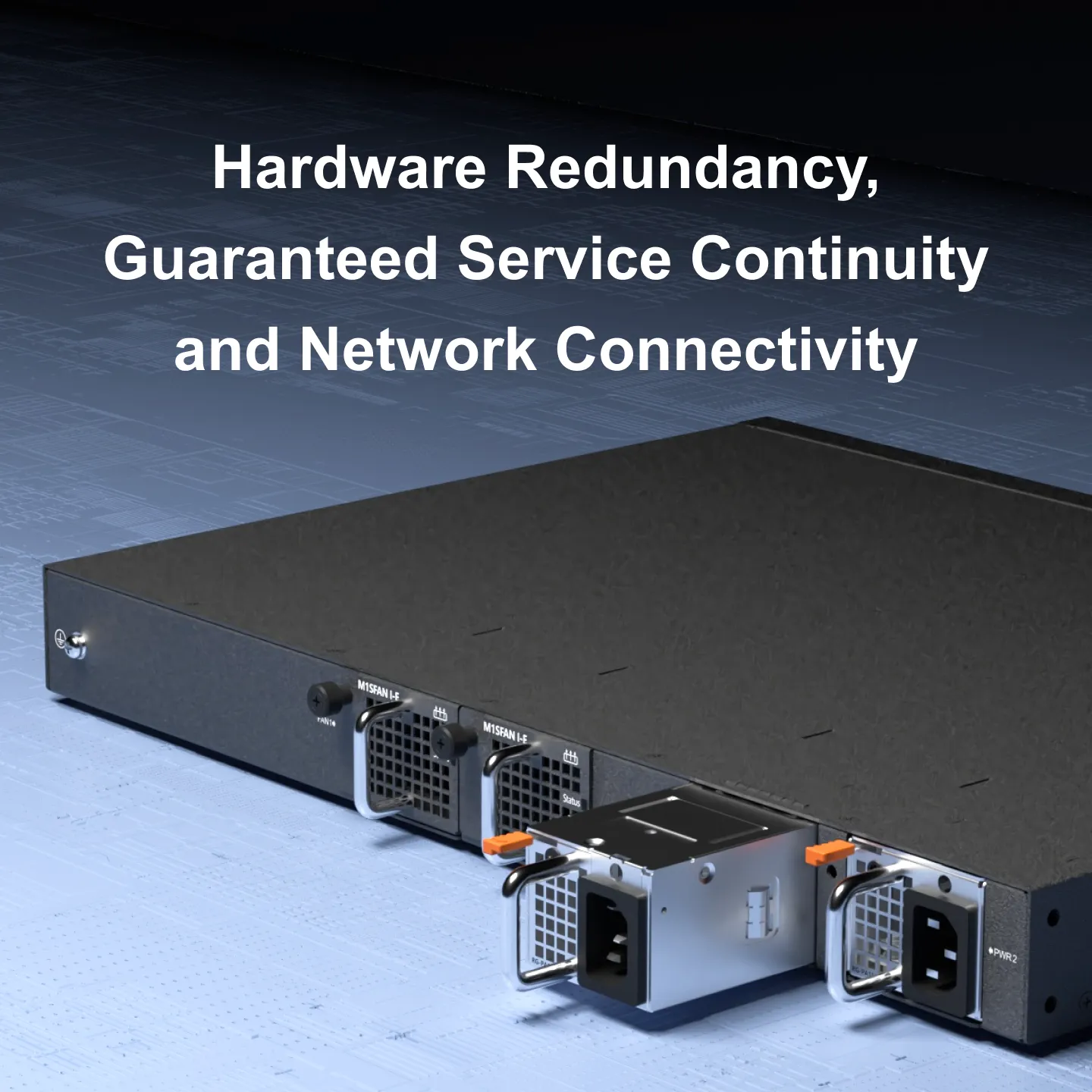

Hardware-level multi-protection, ensuring service continuity

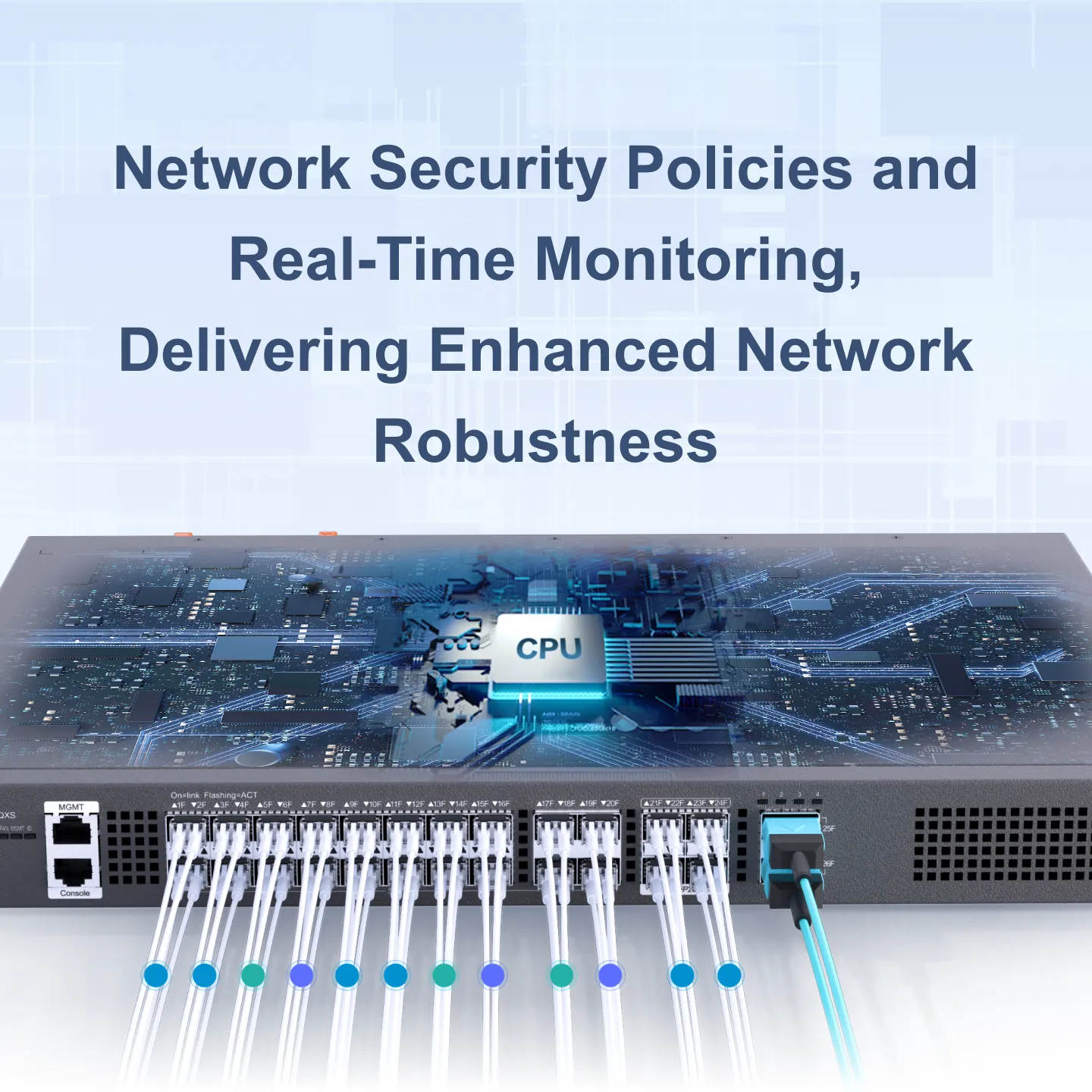

Network security policies and real-time monitoring, enhancing network robustness

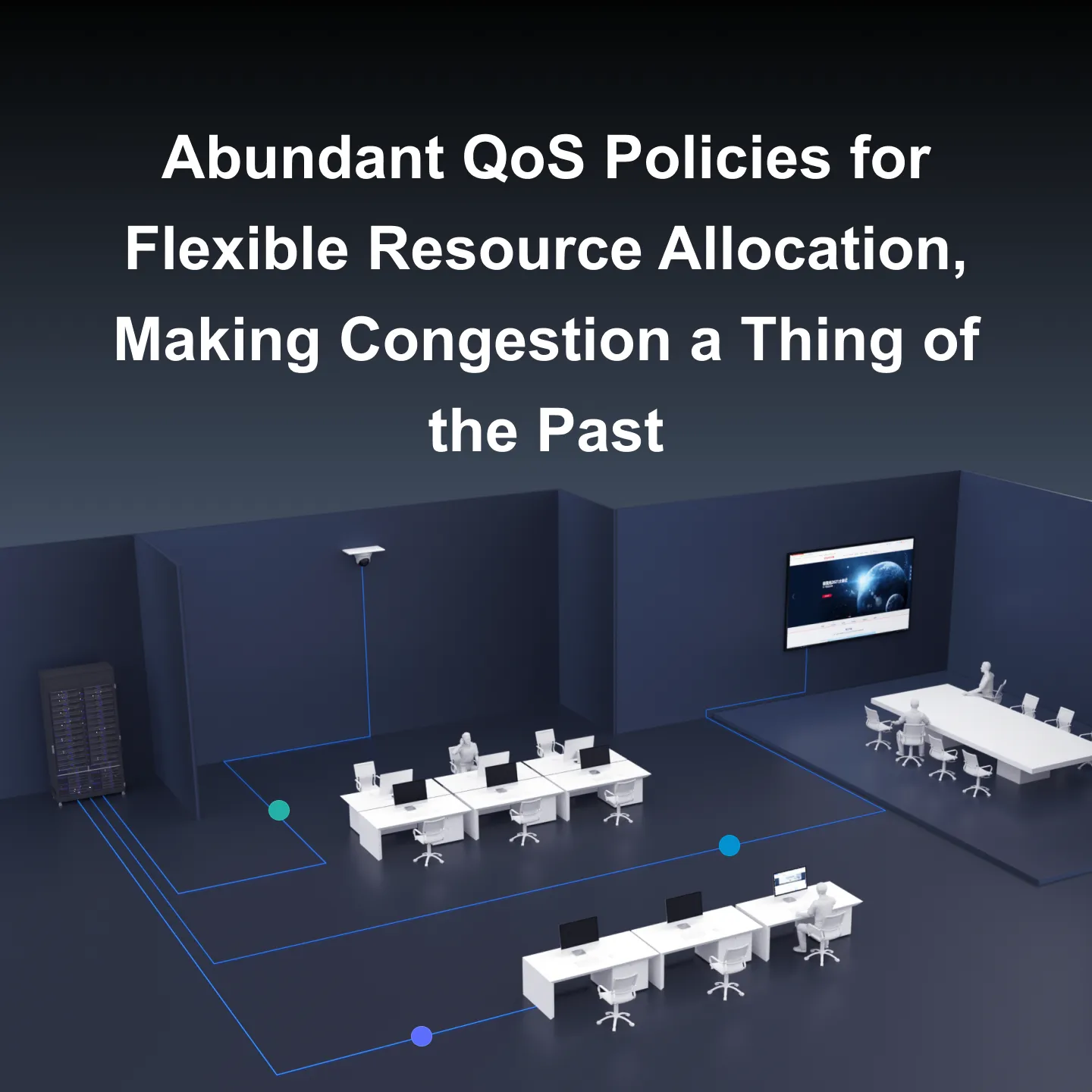

Comprehensive QoS policies for flexible network resource allocation and stable services
Diverse network management modes, enabling simple maintenance

Specifications

Hardware Specifications

Hardware Specifications	RG-CS86-20XS4VS2QXS-D
Interface Specifications
Fixed Ports	20 x 1GE/2.5GE/10GE SFP+ ports, 4 x 10G/25G SFP28 ports, 2 x 40G QSFP+ ports. One switch provides a maximum of 32 x 10G ports, 2 modular power slots, and 2 modular fan slots.
Fan modules	Dual pluggable modular fans, with front-to-rear ventilation channels Fan speed regulating and alarm function
Power modules	2 replaceable hot-swappable power supply slots
Fixed management ports	One MGMT port, one console port, and one USB port
System Specifications
Forwarding Rate	570 Mpps/1260 Mpps
Switching Capacity	2.56 Tbps
MAC Table Capacity	32,768
ARP table	16,000
IPv4 Unicast Routes	16,000
IPv4 Multicast Routes	4,000
IPv6 Unicast Routes	2,000
IPv6 Multicast Routes	16,000
ACL entries	In: 2,500 Out:1,000
Number of VSU members	4
Dimensions and Weight
Dimensions (W x D x H)	440 x 330 x 43.6 mm (17.32 x 12.99 x 1.72 in), 1 RU
Weight of the empty chassis	4.6 kg (10.14 lbs)
CPU and Storage
CPU	Dual-core CPU, 1.25GHz
Storage	Flash memory: 1 GB SDRAM: 1 GB
Power and Consumption
Power Supply	Supported power module type: RG-PA150I-F AC input: Rated voltage range: 100–240 V AC; 50/60 Hz Maximum voltage range: 90–264 V AC; 47/63 Hz Rated input current: 3 A HVDC input: Rated voltage: 240 V DC Maximum voltage range: 192–288 V AC Rated current per circuit: 3 A
Environment and Reliability
Operating temperature	0°C to 50°C (32°F to 122°F)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Operating humidity	10% to 90% RH (non-condensing)
Storage humidity	5% to 95% RH (non-condensing)
Interface surge protection	Power port: 6 kV/6 kV Telecom port: 10 kV (MGMT port: 4 kV)
Temperature Alarm	Supported

Software Specifications

RG-CS86-20XS4VS2QXS-D
Feature	Description
Ethernet Switching	Jumbo frame (maximum length: 9,216 bytes)
	IEEE 802.1Q (supporting 4K VLANs)
	Voice VLAN
	Super VLAN, Private VLAN
	MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN
	GVRP
	Basic QinQ
	STP, RSTP, and MSTP
	ERPS (G.8032)
	LLDP/LLDP-MED
	LACP (IEEE 802.3ad)
IP Service	ARP
	DHCP client, DHCP relay, and DHCP server
	DHCP snooping
	DNS
	DHCPv6 client and DHCPv6 relay
	DHCPv6 snooping
	Neighbor Discovery (ND) and ND snooping
IP Routing	Static routing
	RIP and RIPng
	OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6
	BGP4 and BGP4+
	IPv4 and IPv6 VRF
	IPv4 and IPv6 PBR
	Equal and Weighted Cost Multi-Path (ECMP)
Multicast	IGMP v1/v2/v3, and IGMP proxy
	IGMP v1/v2/v3 snooping
	PIM-DM, PIM-SM, and PIM-SSM
	MSDP
	MLD v1/v2
	MLD snooping v1/v2
	PIM-SMv6 and PIM-SSM v6
	IGMP filtering, IGMP immediate leave
ACL and QoS	Standard IP ACLs Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL
	ACL redirection
	Port traffic rate limiting
	Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
	Congestion avoidance: tail drop, RED, and WRED
	802.1p/DSCP/ToS traffic classification Eight priority queues per port
Security	Multiple AAA modes
	RADIUS and TACAS+
	Port-based and MAC-based 802.1x authentication
	Web authentication
	HTTPS
	SSHv1, SSHv2
	Global IP-MAC binding
	Port isolation and port security
	IP source guard
