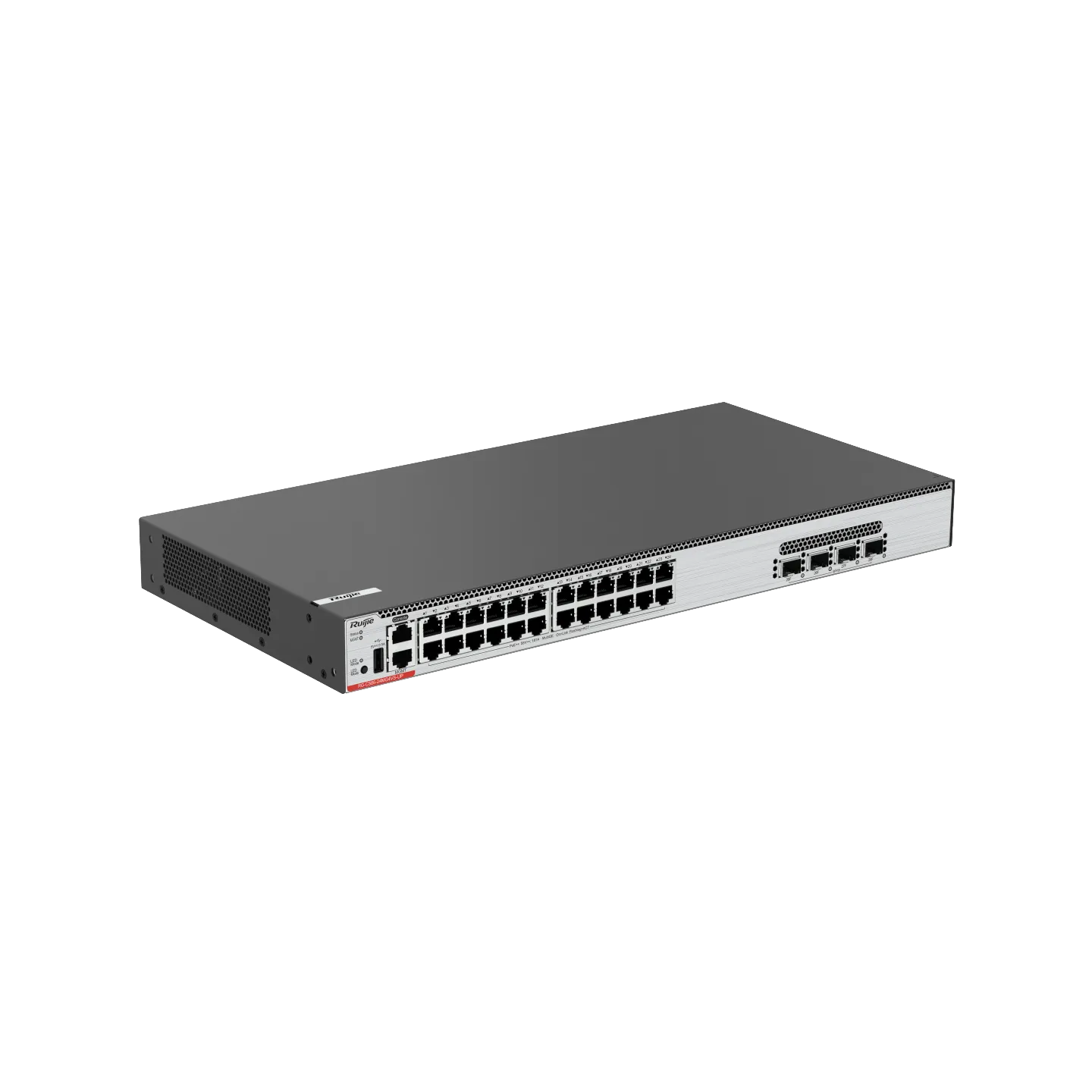

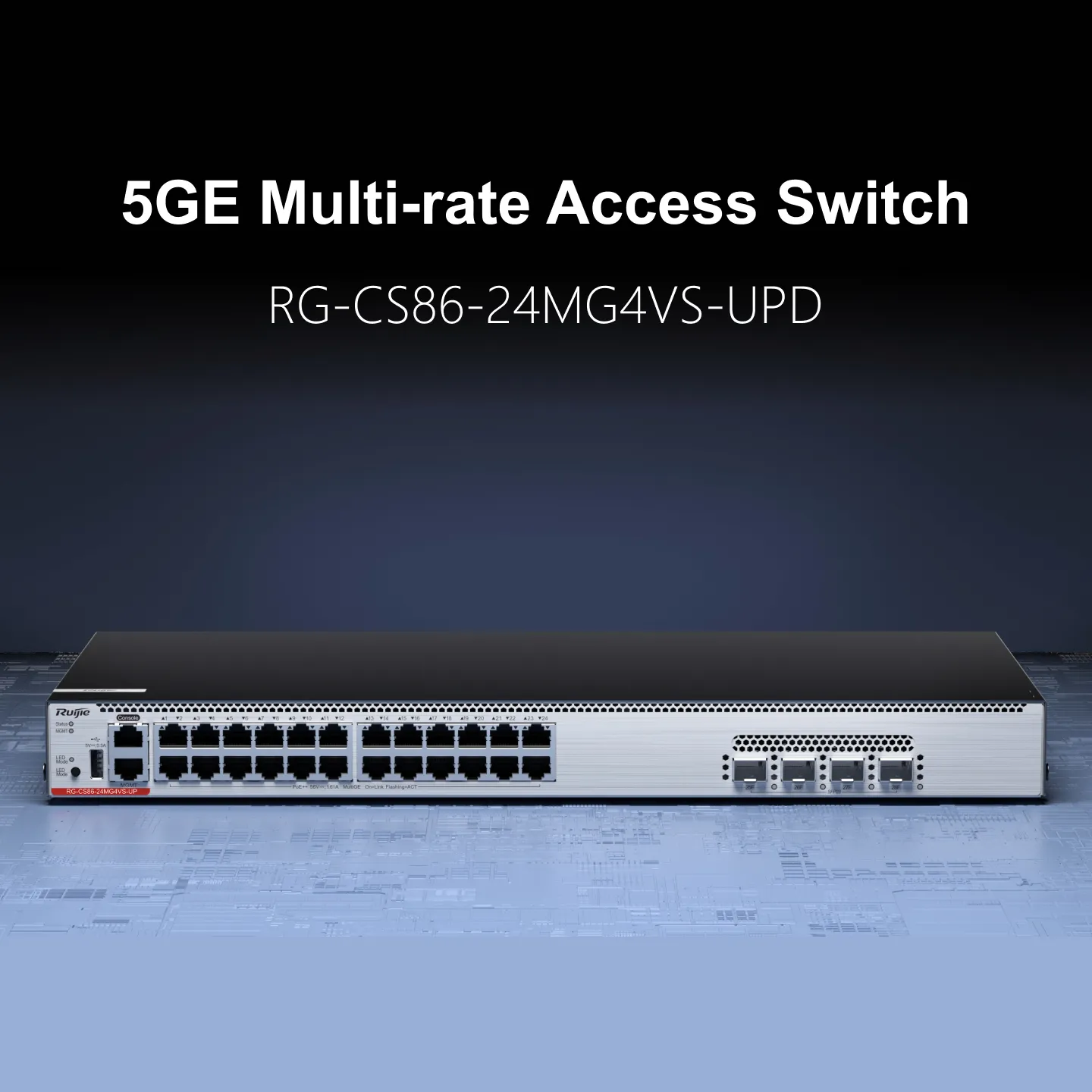

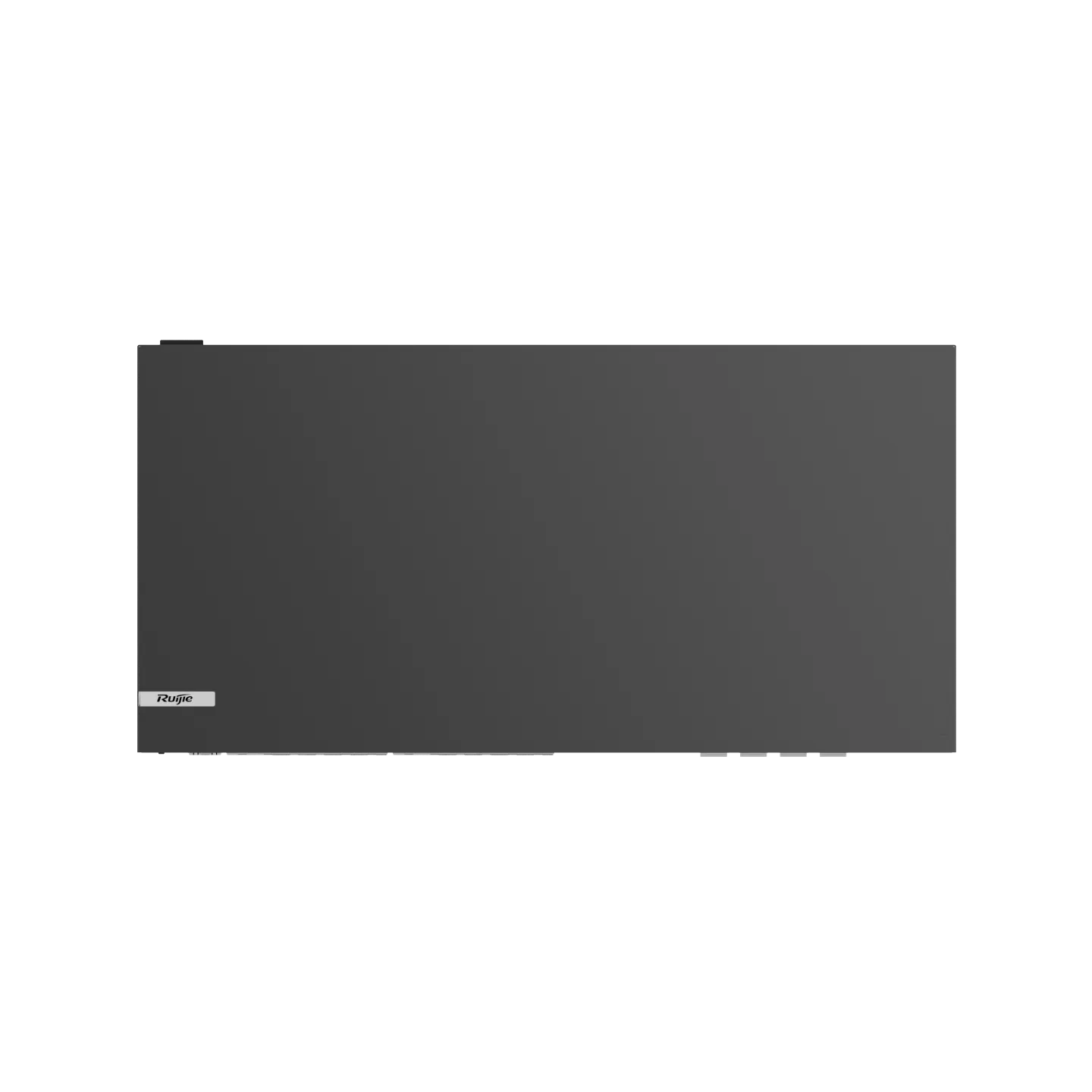

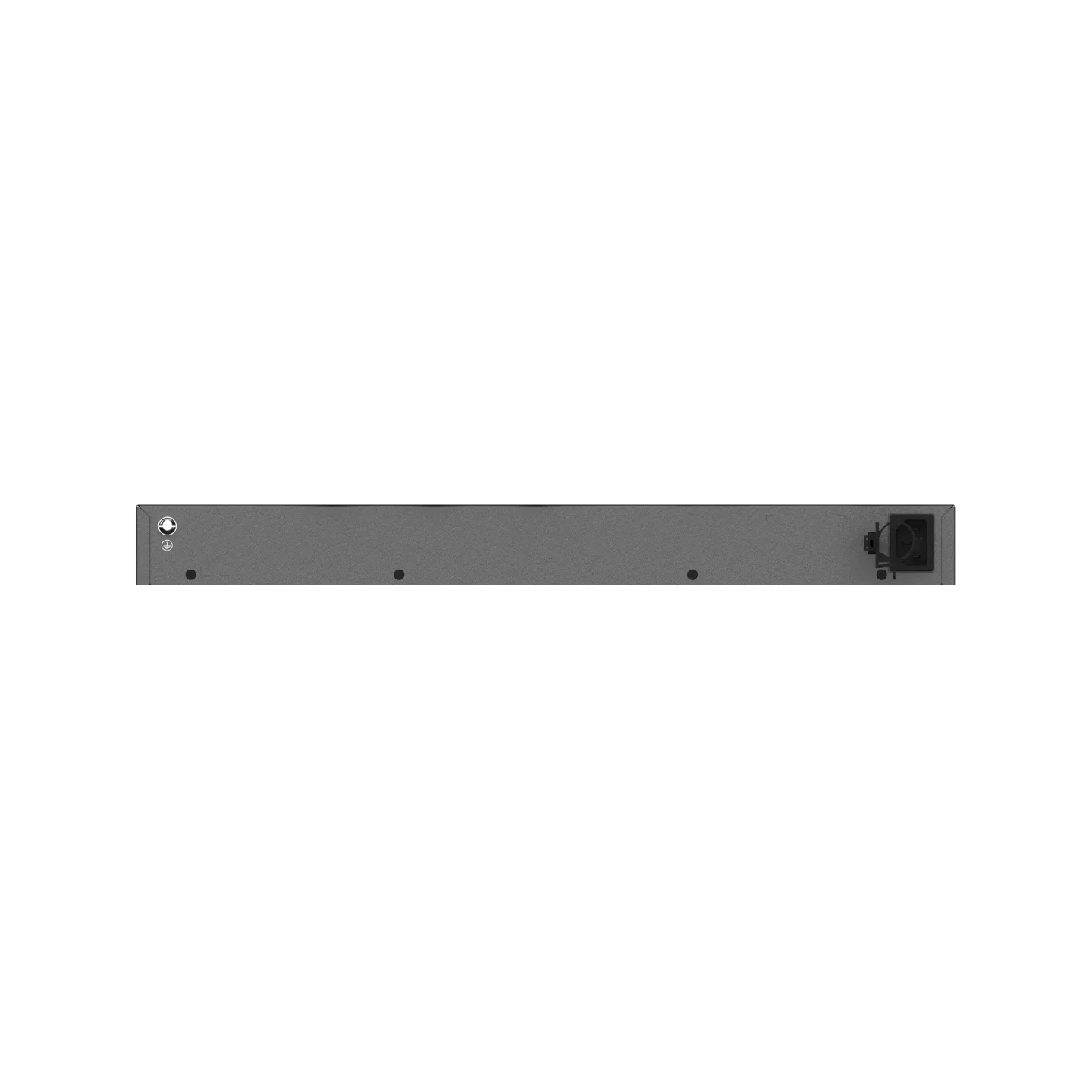

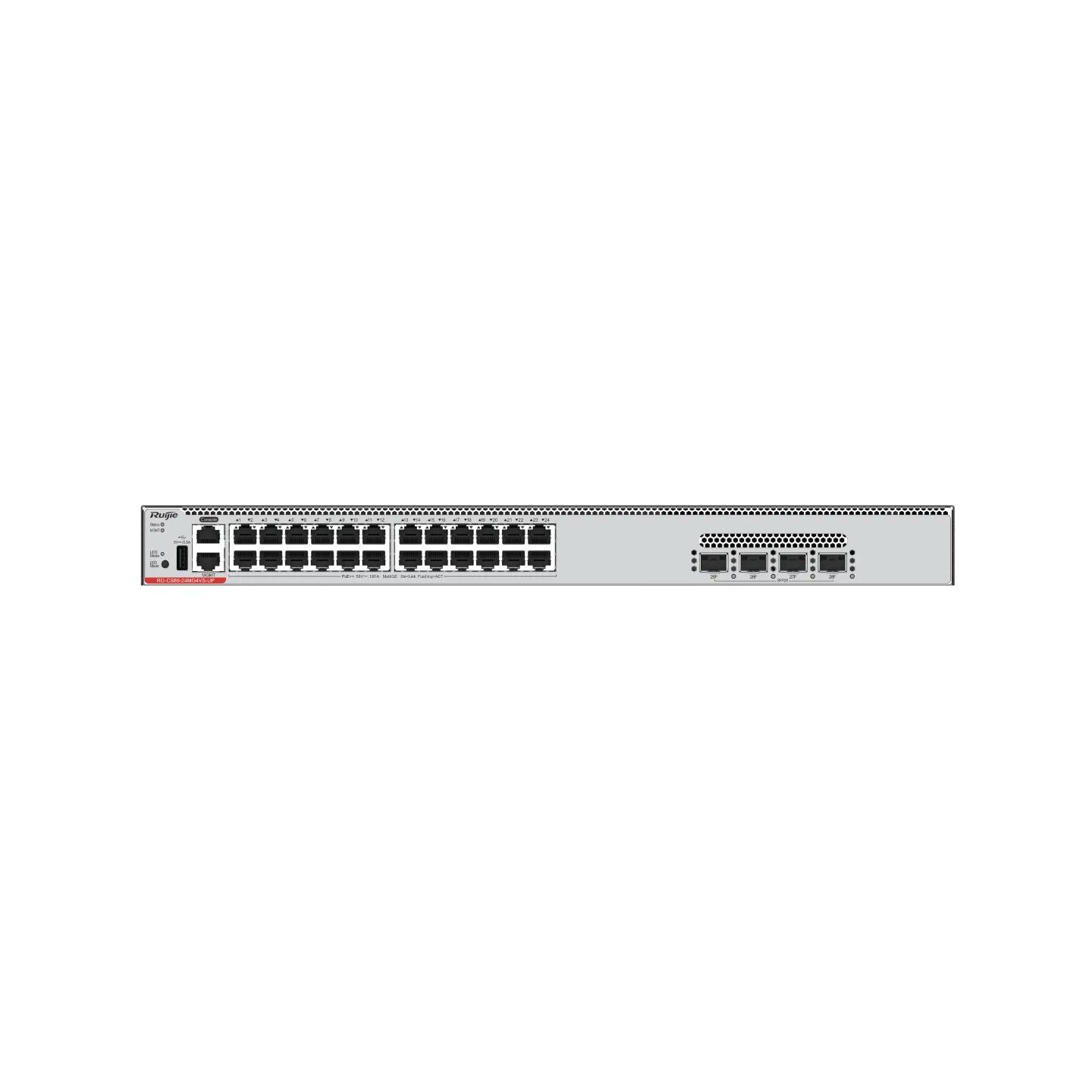

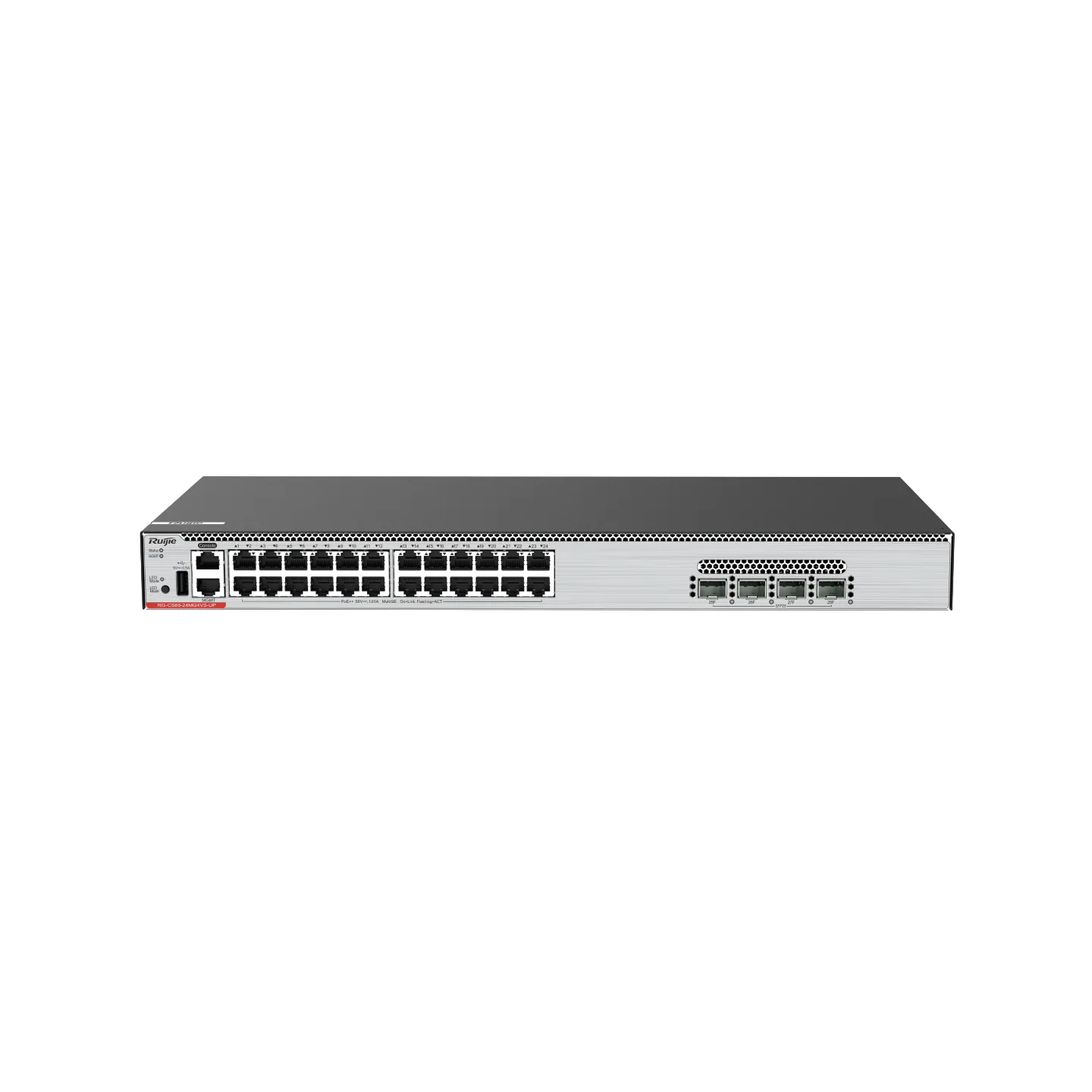

RUIJIE RG-CS86-24MG4VS-UP: 24-Port Ruijie Cloud-Managed Multi-GE Switch, Full 1/2.5/5GE Access with PoE++
RUIJIE RG-CS86-24MG4VS-UP: 24-Port Ruijie Cloud-Managed Multi-GE Switch, Full 1/2.5/5GE Access with PoE++ - Highlight Features24 x 5GE/2.
Product details
- 24 x 5GE/2.5GE/GE/100M Base-T Ethernet ports for access, 4 x 25GE ports for uplink, meeting high-bandwidth campus network demands
- Hardware-level multi-protection, ensuring service continuity
- VSU, realizing flexible networking and high performance
- Network security policies and real-time monitoring, enhancing network robustness
- Intelligent speed regulation and auto sleeping, reducing energy consumption and noise
- Diverse network management modes, enabling simple maintenance
Specifications
Hardware Specifications
Multi-GE Switch
Hardware Specifications | RG-CS86-24MG4VS-UP |
Interface Specifications | |
Fixed Service Port | 24 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation |
Fan modules | 2 fixed fans |
Power modules | 1 Built-in power module |
Fixed Management Port | 1 x MGMT port 1 x console port 1 x USB port |
System Specifications | |
Switching Capacity | 440 Gbps/2.56Tbps |
Packet Forwarding Rate (Actual) | 327 Mpps |
MAC Table Capacity | 32,768 |
ARP table | 16,000 |
IPv4 Unicast Routes | 16,000 |
IPv4 Multicast Routes | 4,000 |
IPv6 Unicast Routes | 16,000 |
IPv6 Multicast Routes | 2,000 |
ACL entries | In: 2,500 Out:1,000 |
Dimensions and Weight | |
Dimensions (W x D x H) | 442 × 220 × 43.6 mm (17.40 × 29.92 × 6.89 in.) , 1 RU |
Weight | 3.65 kg (8.82 lbs) |
Power Supply and Consumption | |
Typical Power Consumption | Without PoE: < 110 W (Total power consumption of all modules) Full PoE load: < 370 W (Total power consumption of all modules) |
Power Module Model | Built-in power module |
Rated Input Voltage | Built-in power module AC input Rated voltage range: 100 V AC to 240 V AC Maximum voltage range: 90 V AC to 264 V AC Frequency: 50/60 Hz Rated current per circuit: 6 A |
PoE-capable Port | Ports 1 to 24 support PoE/PoE+ and HPoE power supply |
Environment and Reliability | |
Surge Protection | 6 kV |
Temperature Monitoring | Temperature alarm |
Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
Operating Humidity | 10% RH to 90% RH (non-condensing) |
Storage Humidity | 5% RH to 95% RH (non-condensing) |
Software Specifications
Software Specifications | RG-CS86-24MG4VS-UP | RG-CS86-48MG4VS2QXS-UPD | RG-CS86-24XMG4XS4VS-UPD |
Ethernet Switching | Jumbo frame (maximum length: 9216 bytes) | ||
IEEE 802.1Q (supporting 4K VLANs) | |||
Voice VLAN | |||
Super VLAN, Private VLAN | |||
MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN | |||
GVRP | |||
Basic QinQ Flexible QinQ | |||
STP, RSTP, and MSTP | |||
ERPS (G.8032) | |||
LLDP/LLDP-MED | |||
LACP (IEEE 802.3ad) | |||
IP Service | ARP | ||
DHCP client, DHCP relay, and DHCP server | |||
DHCP snooping | |||
DNS | |||
DHCPv6 client and DHCPv6 relay | |||
DHCPv6 snooping | |||
Neighbor Discovery (ND) and ND snooping | |||
IP Routing | Static routing | ||
RIP and RIPng | |||
OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6 | |||
BGP4 and BGP4+ | |||
IPv4 and IPv6 PBR | |||
ECMP | |||
Multicast | IGMP v1/v2/v3, and IGMP proxy | ||
IGMP v1/v2/v3 snooping | |||
PIM-DM, PIM-SM, and PIM-SSM | |||
MSDP | |||
MLD v1/v2 | |||
MLD snooping v1/v2 | |||
PIM-SMv6 and PIM-SSM v6 | |||
ACL and QoS | Standard IP ACLs Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL | ||
Port traffic rate limiting | |||
Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |||
Congestion avoidance: tail drop, RED, and WRED | |||
802.1p/DSCP/ToS traffic classification Eight priority queues per port | |||
Security | Multiple AAA modes | ||
RADIUS and TACAS+ | |||
Port-based and MAC-based 802.1x authentication | |||
Web authentication | |||
HTTPS | |||
SSHv1, SSHv2 | |||
Global IP-MAC binding | |||
IP source guard | |||
SAVI | |||
CPP and NFPP | |||
Strict and loose RPF uRPF ignoring default routes | |||
Reliability | REUP, RLDP, DLDP | ||
