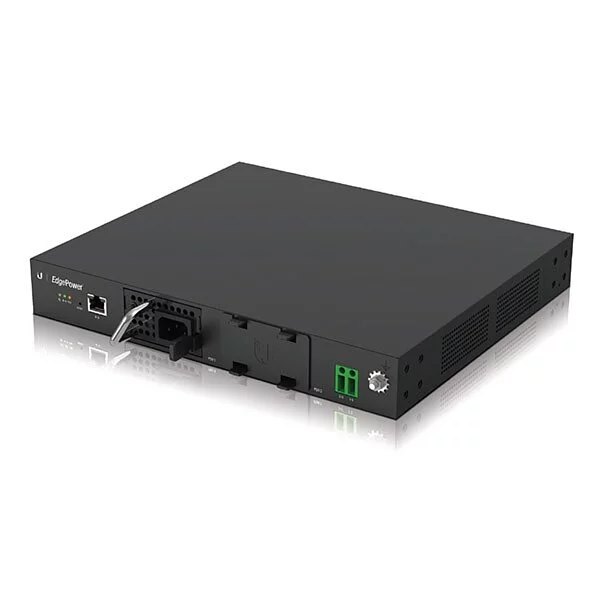

Ubiquiti EP-54V-150W
Ubiquiti EP-54V-150W -
Product details
THE EP-54V-150W USES MODULAR PSUS FOR FLEXIBLE CONFIGURATION OPTIONS. IT CAN UTILIZE TWO MODULAR PSUS TO PROVIDE UP TO 300W OF POWER, OR BE CONFIGURED TO PROVIDE UP TO 150W OF POWER WITH AN AUTOMATIC PSU BACKUP.
THE EP-54V-150W CONSISTS OF A RACK-MOUNTABLE, TWO-BAY HOUSING AND CONTROL UNIT, AND INCLUDES ONE AC-DC 54V, 150W PSU MODULE. THE SECOND PSU BAY CAN HOUSE AN AC-DC OR DC-DC PSU MODULE (SOLD SEPARATELY):
The EP-54V-150W provides up to 150W of power output. With an optional PSU in the secondary bay, it may be configured to deliver up to 300W of power.
The secondary PSU may be configured as a backup PSU. In backup mode, the secondary PSU remains inactive and offline. If failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.
| EdgePower 54V 150W | |
|---|---|
| Dimensions without Mount Brackets | 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.675") |
| Weight without Mount Brackets | 2.7 kg (5.95 lb) |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply Module | 54V, 150W AC/DC, Model EP-54V-150W-AC, Installed in PSU 1 |
| Maximum Power Output PSU | 150W (1 PSU Module) 300W (2 PSU Modules @ 150W Each) |
| LEDs Power Ethernet PSU | System On/Off Management Port Link PSU1+PSU2, PSU1/PSU2 |
| Networking Interface | (1) 10/100 RJ45 Ethernet |
| Management Interface | Ethernet In-Band, Web UI |
| Rack-Mount | Yes, 1U High |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% RH |
| ESD/EMP Protection | Air ± 24KV; Contact ± 24KV |
| Certifications | CE, FCC, IC |
