Ubiquiti EP-S16 EdgePoint 16-Port Gigabit PoE-Compliant WISP Switch
Buy Ubiquiti EP-S16 EdgePoint 16-Port Gigabit PoE-Compliant WISP Switch, Ubiquiti from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Q...
Quote on request
✓ Available to order · supplied & installed in Malaysia
Product details

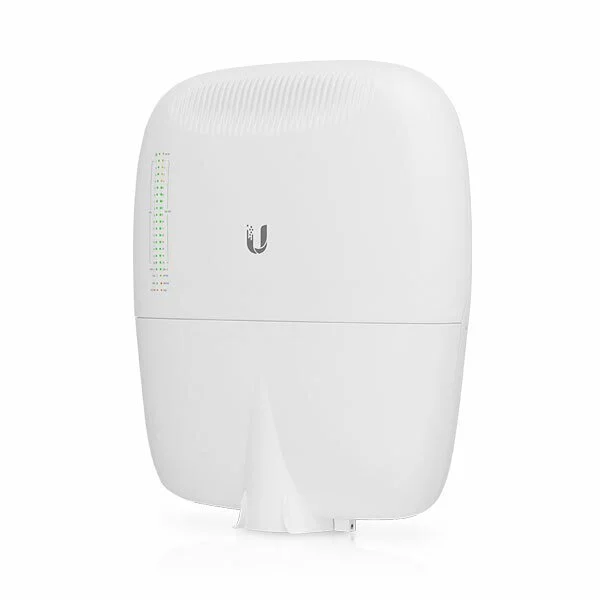

Ubiquiti Networks introduces the EdgePoint™, part of the EdgeMAX® platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities.
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
| EP-S16 | |
|---|---|
| Dimensions With Wall-Mount | 326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50") 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15") |
| Weight With Wall-Mount | 3.4 kg (7.50 lb) 3.8 kg (8.38 lb) |
| Max. Power Consumption | 40W (Excludes PoE Output) |
| Power Input | (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs) |
| Power Supply | Min. 54V / 0.8A (Excludes PoE Output Power) |
| VDC Input | 54V / 6A |
| Passive PoE Input | (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 and 2 (Do NOT Configure Port 1 or 2 in PoE Output Mode if You Are Using PoE Input Power Sources.) |
| Passive PoE Output | (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 to 4 (12) 802.3af/at or 24V/0.7A, 2-Pair (+ 4, 5; - 7, 8) Passive PoE, Ports 5 to 16 |
| Power Monitoring | (1) DC Terminal Block, Input Power (2) RJ45, Ports 1 and 2, PoE Input or Output Power (14) RJ45, Ports 3 to 16, PoE Output Power |
| Supported Voltage Range | +42 to +56VDC (-48V is NOT Supported) |
| Button | Reset |
| LEDs System PoE In 1 to 16 SFP | Power PoE Speed/Link/Activity, PoE Speed/Link/Activity |
| Ports Serial Console Port Data Ports | (1) RJ45 Serial Port (16) 10/100/1000 RJ45 Ports (2) 1/10 Gbps SFP+ Ports |
| Pole/Wall Mount | Yes |
| Operating Temperature | -40 to 65° C (-40 to 149° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
