Ubiquiti Networks UF-Loco UFiber Gigabit Passive Optical Network Unit (UF-Loco)
Buy Ubiquiti Networks UF-Loco UFiber Gigabit Passive Optical Network Unit (UF-Loco), Ubiquiti from Printer Bullet - Everything for office. Fast & Free Home Deli...
Product details
- High-Performance GPON CPE
- LED diodes for easy diagnostics
- Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream
- Supports up to 20 km GPON Links
- Powerful Layer 2/3 Management Features
- GPON WAN Port
- RJ45 Gigabit LAN Port
- SC/APC Fiber Connector

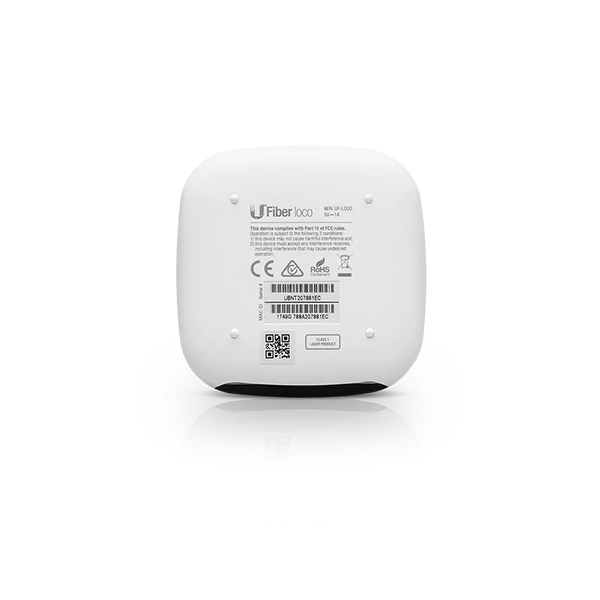

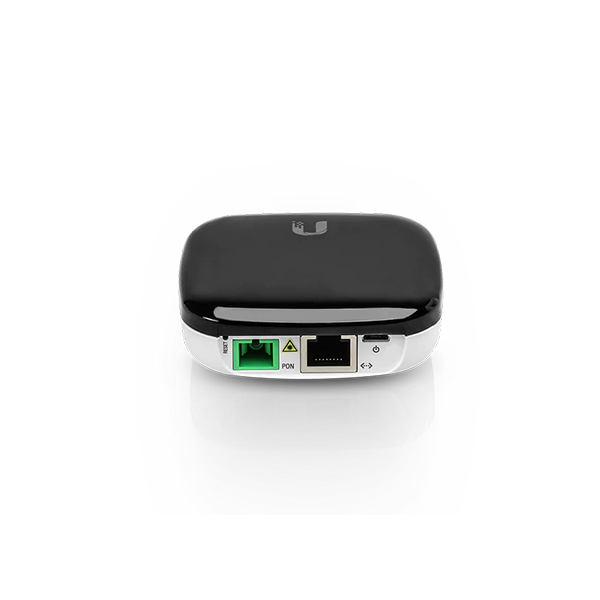

The sleek UFiber loco is a robust, high‑performance GPON CPE that features extremely low power consumption and the choice of 24V passive PoE or Micro‑USB power.
Features:
Note: Micro-USB power adapter included only in single-pack.
| UF-LOCO | |
|---|---|
| Dimensions | 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04") |
| Weight | 77 g (2.72 oz) |
| Networking Interfaces | (1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN |
| Networking Interface Speeds | (1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream (1) GbE LAN, 10/100/1000 Mbps |
| Management Interface | In-Band Ethernet PON |
| Normal Optical Power Range | TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm |
| Power Method | Micro-USB: 5V, 1A 24V Passive PoE (Pins +4, 5; -7, 8) |
| Power Supply | Micro-USB Power Adapter*: 5V, 1A *Included only in the single-pack of the UF-LOCO |
| Max. Power Consumption | 3.5W |
| Supported Voltage Range | 4.7 to 5.3V |
| Processor Specs | MIPS-32, 240 MHz |
| Memory Information | 128 MB DDR3 |
| Button | (1) Reset |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
