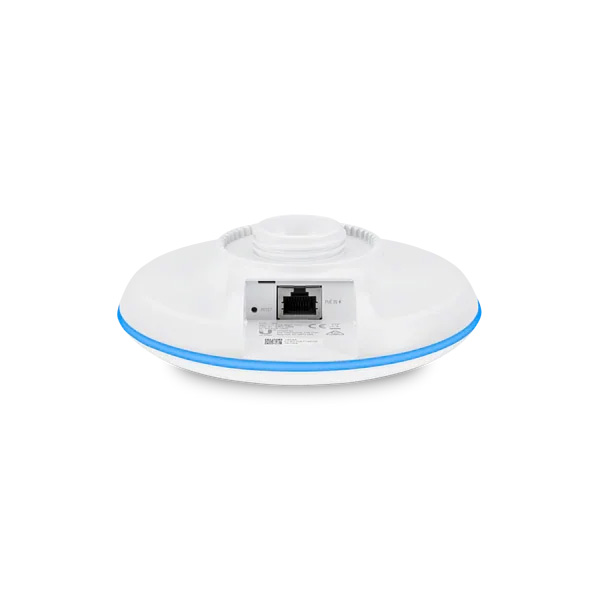

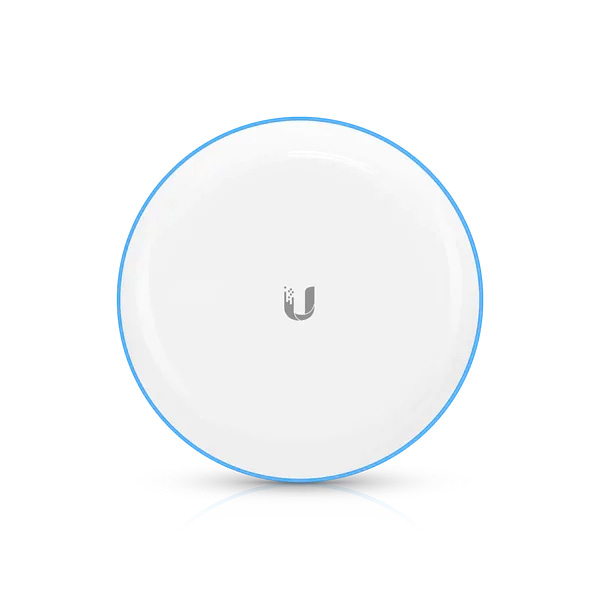

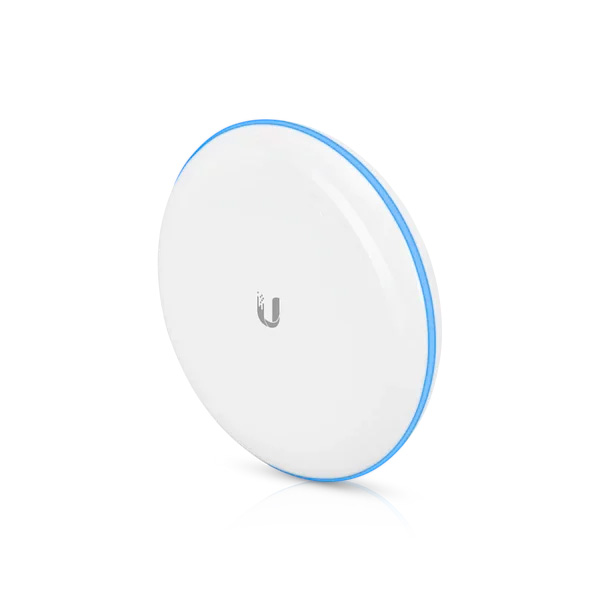

Ubiquiti Networks UniFi Building-to-Building Network Bridge
Buy Ubiquiti Networks UniFi Building-to-Building Network Bridge, Ubiquiti from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality S...
Product details
- UAP Building-to-Building Bridge (x2)
- Ball joint mount (x2)
- Lock ring (x2)
- Metal strap (x2)
- Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
- Power cord (x2)
1.7+ Gbps bi-directional Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Application Management, and range of up to 500 m
UAP® Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi application makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.
Package Contents:
| Mechanical | |
|---|---|
| Dimensions | 140 x 140 x 90 mm (5.51 x 5.51 x 3.54") |
| Weight | 376 g (13.3 oz) |
| Enclosure | UV-Resistant Polycarbonate |
| Mounting | Pole-Mount (Kit Included) Wall-Mount (Not Included) |
| Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Antenna Gain 2.4 GHz (BLE) 5 GHz 60 GHz | 2 dBi 10 dBi 17.2 dBi |
| GPS | Yes |
| Max. TX Power 5GHz 60GHz | 25 dBm 32 - 36.5dBm |
| 60 GHz Elevation Beamwidth | 30° |
| 60 GHz Azimuthal Coverage | ±60° |
| Interfaces Networking Management | (1) 10/100/1000 Ethernet Port Bluetooth |
| Power Method | 802.3af Supported Passive Power over Ethernet (48V) |
| Power Supply | UAP PoE Switch 48V, 0.32A Gigabit PoE Adapter (Included) |
| Max Power Consumption | 11W |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| Worldwide | 5150 - 5875 57,000 - 66,000 |
| US/CA | U-NII-1: 5150 - 5250 U-NII-3: 5725 - 5850 57,000 - 66,000 |
| Bluetooth (MHz) | |
| Worldwide | 2400 - 2483.5 |
