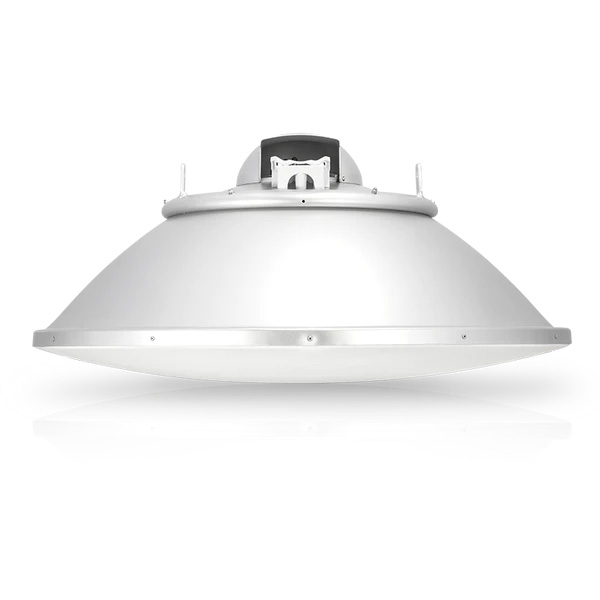

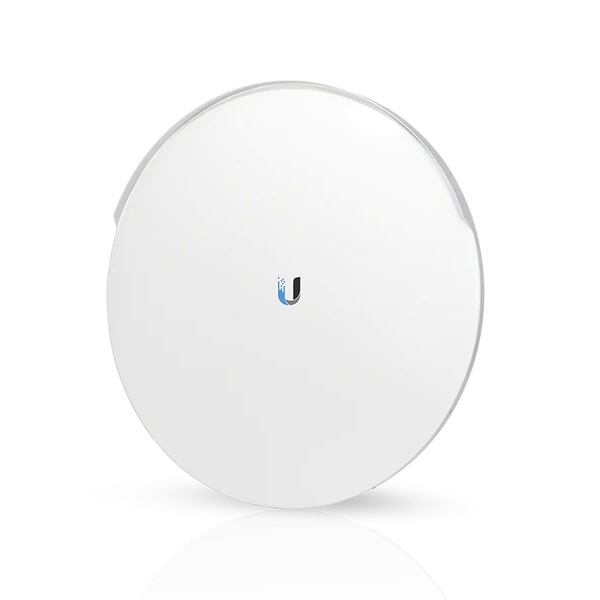

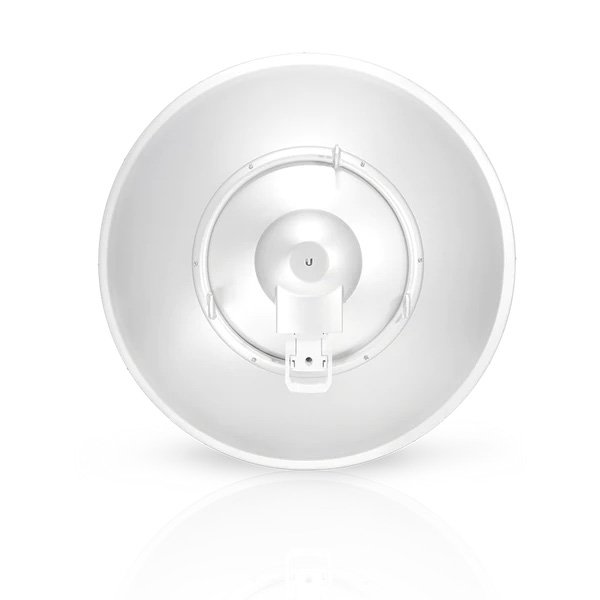

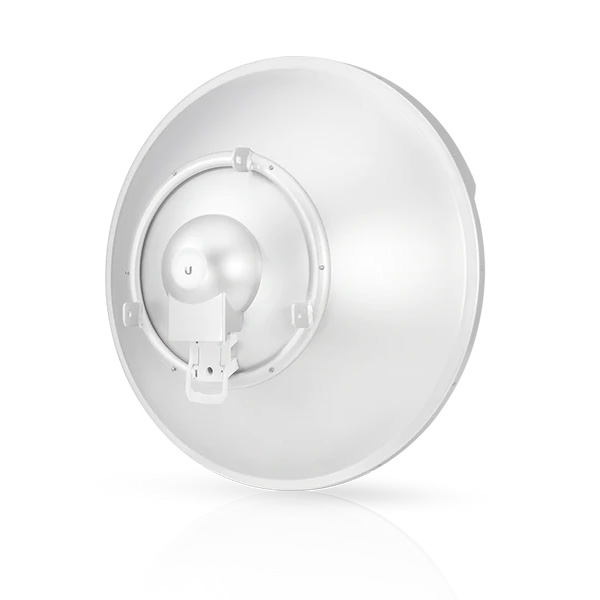

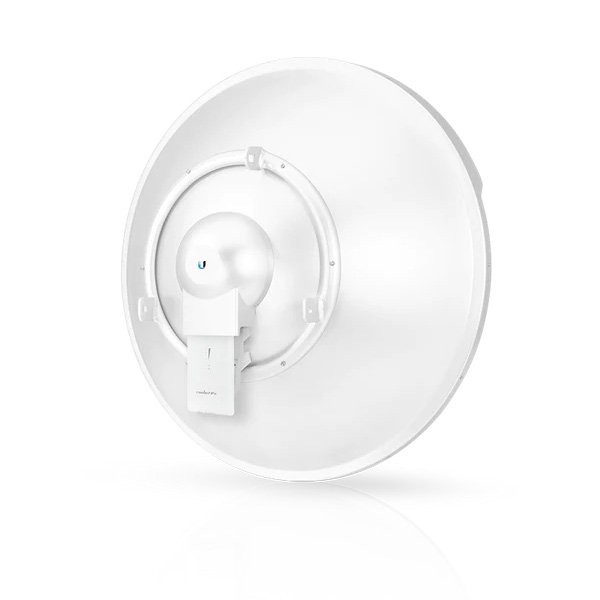

Ubiquiti RocketDish Antenna AC RD-5G31-AC
Buy Ubiquiti RocketDish Antenna AC RD-5G31-AC, Ubiquiti from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Service
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Dimensions | 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 in) |
| Weight | 7.6 kg (16.76 lb) |
| Frequency Range | 5.1 - 5.8 GHz |
| Gain | 31 dBi |
| Max. VSWR | 1.4:1 |
Product details
They are compatible with the RocketM5; however, optimal performance requires the Rocket5ac.
| RD-5G31-AC | |
|---|---|
| Dimensions | 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 in) |
| Weight | 7.6 kg (16.76 lb) (Mount Included) |
| Frequency Range | 5.1 - 5.8 GHz |
| Gain | 31 dBi |
| Max. VSWR | 1.4:1 |
| Wind Loading | 1,028 N @ 200 km/h (231 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Included |
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Dimensions | 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 in) |
| Weight | 7.6 kg (16.76 lb) |
| Frequency Range | 5.1 - 5.8 GHz |
| Gain | 31 dBi |
| Max. VSWR | 1.4:1 |
| Wind Loading | 1,028 N @ 200 km/h |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
