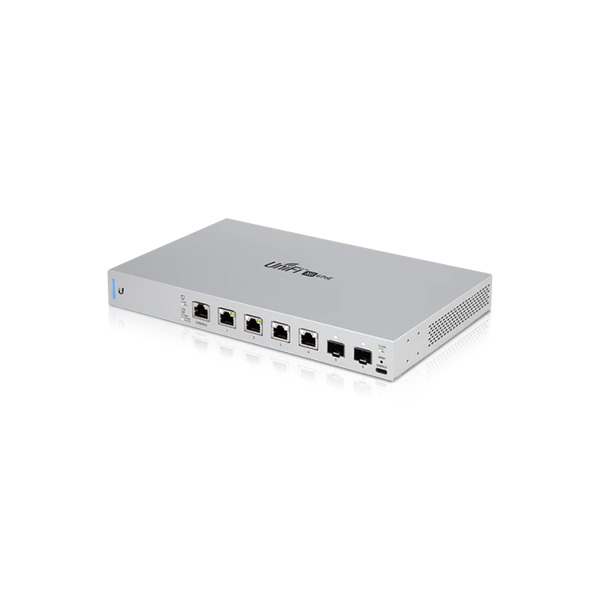

Ubiquiti switch US-XG-6PoE
Buy Ubiquiti switch US-XG-6PoE, Ubiquiti from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Service
Product details
- (1) RJ45 console port
- (4) 10GbE, 802.3bt PoE++ RJ45 ports
- (2) 10G SFP+ ports
- (1) USB-C console ports
- 170W total PoE supply
- Layer 3 switching features

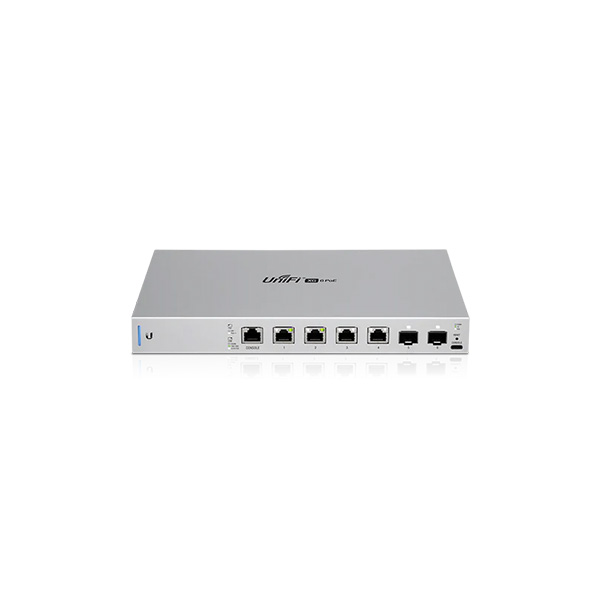

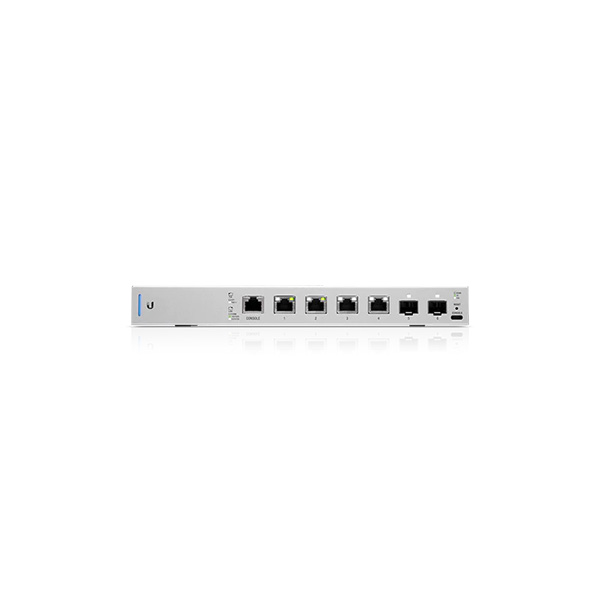

The Switch XG 6 PoE (US XG 6 PoE) is a fully managed switch , mult-gigabit, Layer 3 switch with (4) 10GbE, 802.3bt PoE++ RJ45 ports, (2) 10G SFP+ ports. The switch's networking interface makes it an ideal compliment to the BaseStation XG, Access Point XG, and Access Point SHD. The US XG 6 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. This switch can be monitored or configured from anywhere with the powerful, intuitive UAP Network web application and mobile app.
Features:
Managed with the UAP Network application
| US-XG-6POE | |
|---|---|
| Dimensions | 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25") |
| Weight | 1.3 kg (2.87 lb) |
| Interfaces | Networking (4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Management Ethernet In-Band (1) RJ45 Serial Port Out-of-Band (1) USB Type C Port Out-of-Band |

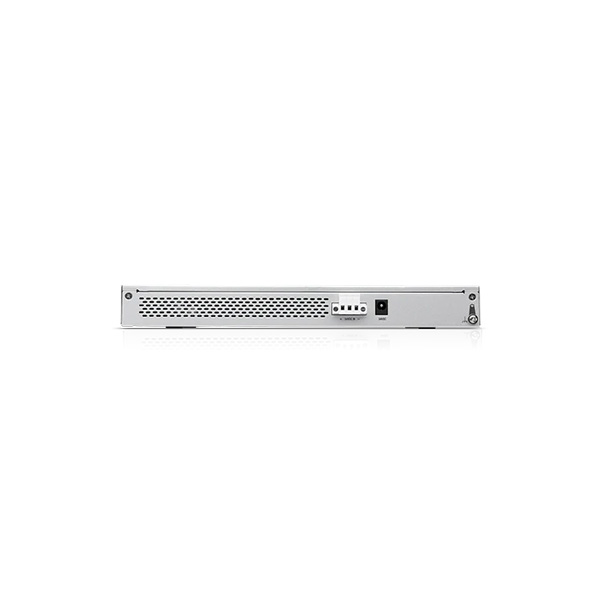

| Power Method | 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block |
| Power Supply | External AC/DC Adapter (Included) or DC Power Source |
| Supported Voltage Range | 44 to 57VDC |
| Max. Power Consumption (Excluding PoE Output) | 40W |
| LEDs System RJ45 Data Ports SFP+ Data Ports | Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 18 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| POE | |
| PoE Interfaces | PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. 802.3bt Wattage per Port by PSE | 60W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at/bt Mode | 50-57V |
